Rohde & Schwarz SMB100A (1406.6000.02)

Microwave Signal Generator

型號

SMB100A (1406.6000.02)

產品類別

RF & Microwave Signal Generators

製造商

Rohde & Schwarz

配置型號包含以下特性:

RF & Microwave Signal GeneratorsRF Generators >=40 GHzBenchtop

配置

技术指标

產品總覽

資源

讓我們為您提供準確的配置

請使用“獲取快速報價”，我們將根據您的需求與您聯繫並報價。

您也可以選擇保持聯繫，我們會為您提供正確的應用和採購解決方案。

特性	參數
Form Factor	Benchtop

產品總覽

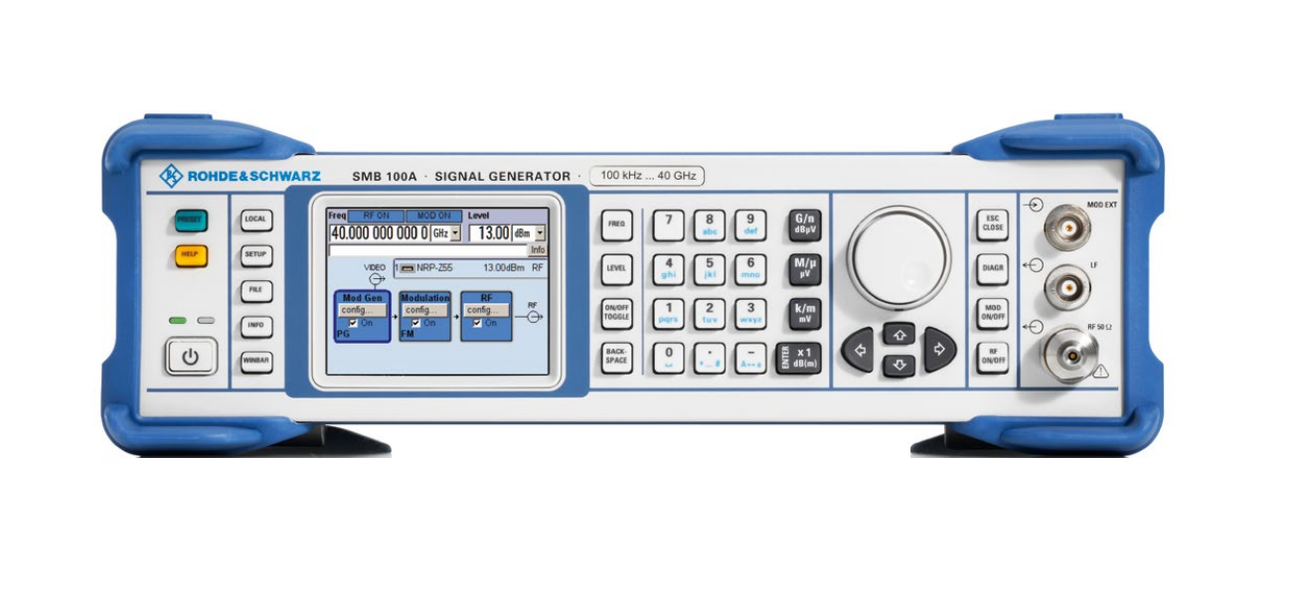

The compact, versatile R&S®SMB100A microwave signal generator with a frequency range up to 40 GHz provides outstanding spectral purity and high output power. In addition, it features easy operation, comprehensive functionality and low cost of ownership.

For even higher frequencies, the frequency range of the R&S®SMB100A can be easily extended with the R&S®SMZ frequency multiplier. The R&S®SMB100A plus R&S®SMZ solution combines easy handling with precise, adjustable output levels in the frequency range from 50 GHz to 110 GHz (adjustable output levels are not possible with R&S®SMZ170).

Key Features

Wide frequency range from 9 kHz to 12 GHz or from 100 kHz to 40 GHz

Excellent signal characteristics with low SSB phase noise of typ. –128 dBc (at 1 GHz, 20 kHz offset)

High output power of typ. up to +27 dBm

All important analog modulations with AM, FM/φM and pulse modulation supported

Compact size with only two height units and low weight

Specifications
SMB100A Microwave Signal Generator
Frequency
Frequency range	R&S®SMB-B112/R&S®SMB-B112L	100 kHz to 12.75 GHz
	R&S®SMB-B120/R&S®SMB-B120L	100 kHz to 20 GHz
	R&S®SMB-B131	100 kHz to 31.8 GHz
	R&S®SMB-B140/R&S®SMB-B140L/R&S®SMB-B140N	100 kHz to 40 GHz
Setting time	SCPI mode	< 3 ms
	List mode	< 1 ms
Level
Maximum output power	R&S®SMB-B112/-B112L, 1 MHz < f ≤ 12.75 GHz	+18 dBm
	R&S®SMB-B120 with R&S®SMB-B31, 50 MHz < f ≤ 20 GHz	+16 dBm
	R&S®SMB-B120L with R&S®SMB-B31, 100 MHz < f ≤ 20 GHz	+19 dBm
	R&S®SMB-B131/-B140/-B140N with R&S®SMB-B32, 50 MHz < f ≤ 40 GHz	+19 dBm
	R&S®SMB-B140L with R&S®SMB-B32, 50 MHz < f ≤ 40 GHz	+16 dBm
Minimum specified output power	R&S®SMB-B112/-B131/-B140/-B140N	-120 dBm
	R&S®SMB-B112L	-5 dBm
	R&S®SMB-B120L/-B140L	0 dBm
Setting time (without switching of the mechanical attenuator)	SCPI mode	< 2.5 ms
	List mode	< 1 ms
Spectral Purity
SSB phase noise	f = 1 GHz, carrier offset = 20 kHz, 1 Hz measurement bandwidth	< –122 dBc, typ. –128 dBc
	f = 10 GHz, carrier offset = 20 kHz, 1 Hz measurement bandwidth	< –102 dBc, typ. –108 dBc
Harmonics
R&S®SMB-B112/-B112L	1 MHz < f ≤ 6 GHz; level ≤ 13 dBm 1) f > 6 GHz; level ≤ 10 dBm 1)	< –30 dBc
R&S®SMB-B120/-B120L/-B131/-B140/ -B140N/-B140L	standard; level ≤ 8 dBm 1)
	f > 1 MHz	< –30 dBc
	with R&S®SMB-B25/-B26 low harmonic option, low harmonic filter on, level ≤ 10 dBm 1)
	1 MHz < f ≤ 150 MHz	< –30 dBc
	150 MHz < f ≤ 3 GHz	< –58 dBc
	3 GHz < f ≤ 20 GHz	< –50 dBc
	f > 20 GHz	< –60 dBc (meas.)
Supported Modulation Modes
AM		standard
AM depth		0 % to 100 %
FM/φM		standard
Maximum FM deviation	f = 10 GHz	32 MHz
Maximum φM deviation	f = 10 GHz	320 rad
Pulse	R&S®SMB-K21/-K22 pulse modulator
Rise/fall time		< 20 ns, typ. < 5 ns
ON/Off ratio		> 80 dB
Minimum pulse width of pulse generator output		10 ns
Connectivity
Remote control		GPIB IEEE-488.2 Ethernet (TCP/IP), USB
Peripherals		USB

Note:

(1) Or maximum specified output power, whichever is lower.

Specifications
SMB100A Microwave Signal Generator
Ordering Information
Model	Order Number	Description
Base Unit
SMB100A	1406.6000.02	RF and Microwave Signal Generator (1) Including power cable, quick start guide and CD-ROM (with operating and service manual)
Frequency Options
SMB-B101	1407.2509.02	9 kHz to 1.1 GHz
SMB-B102	1407.2609.02	9 kHz to 2.2 GHz
SMB-B103	1407.2709.02	9 kHz to 3.2 GHz
SMB-B106	1407.2909.02	9 kHz to 6 GHz
SMB-B112	1407.2109.02	100 kHz to 12.75 GHz, with electronic step attenuator
SMB-B112L	1407.2150.02	100 kHz to 12.75 GHz, without step attenuator
SMB-B120	1407.2209.02	100 kHz to 20 GHz, with mechanical step attenuator
SMB-B120L	1407.2250.02	100 kHz to 20 GHz, without step attenuator
SMB-B131	1407.2280.02	100 kHz to 31.8 GHz, with mechanical step attenuator
SMB-B140	1407.2309.02	100 kHz to 40 GHz, with mechanical step attenuator
SMB-B140L	1407.2350.02	100 kHz to 40 GHz, without step attenuator
SMB-B140N	1407.2380.02	100 kHz to 40 GHz, with mechanical step attenuator, minimum pulse width limited

Note:

(1) The base unit must be ordered together with an R&S®SMB-B101/-B102/-B103/-B106/-B112/-B112L/-B120/-B120L/-B131/-B140/-B140L/-B140N frequency option.
