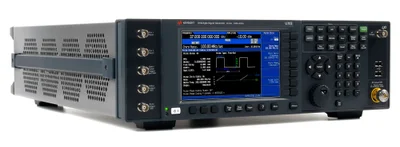

Keysight Technologies N5193A

UXG X-Series Agile Signal Generator; 10 MHz to 40 GHz

型號

N5193A

產品類別

RF & Microwave Signal Generators

製造商

Keysight Technologies

配置型號包含以下特性:

RF & Microwave Signal GeneratorsRF Generators >=40 GHz

配置

技术指标

產品總覽

資源

讓我們為您提供準確的配置

請使用“獲取快速報價”，我們將根據您的需求與您聯繫並報價。

您也可以選擇保持聯繫，我們會為您提供正確的應用和採購解決方案。

產品總覽

N5193A UXG agile signal generator provides fast frequency, amplitude, and phase coherent switching from 10 MHz to 40 GHz.

Industry-leading performance The UXG agile signal generator delivers unmatched performance in areas such as switching speed and phase control. To support realistic multi-threat scenarios, the UXG can switch frequency in as little as 370 ns. This is made possible by direct digital synthesis (DDS) technology and a Keysight proprietary digital-to-analog converter (DAC).

The N5193A UXG agile signal generator’s ability to fast frequency hop with phase continuity and repeatability makes it an ideal building block to efficiently simulate complex threat environments across the full 40 GHz range

Key Features

Get closer to reality: simulate increasingly complex signal environments for radar, EW & antenna-test

Test sooner & increase confidence in EW systems by generating signal simulations when you need them: the UXG is a scalable threat simulator

Use pulse descriptor words (PDWs) to generate long pulse trains & individually control pulse characteristics

Accurately simulate multi-threat environments: 180-ns PDW update rate, chirps 10 to 25% of carrier frequency, pulses as narrow as 10 ns

Applications

Multiple pulse-Doppler radars at different frequencies while maintaining the original phase as the UXG hops from one emitter frequency to another

EW scenarios with thousands of radar threat-emitters and millions of pulses per second with unique antenna scans

Expand high pulse density environments by scaling up in the number of UXGs

- Increases pulse density

- Perform pulse-on-pulse simulations

- Do multi-port angle of arrival (AoA) simulations

- Staggering identical pulses played out of different ports (different UXGs) in time, phase, amplitude, or all three

Specifications
N5193A UXG Agile Signal Generator
Features	Parameters
Frequency	n/a
Frequency Options	20, 40 GHz
Performance Level	◆◆◆◆◆◇
Output Power @1 GHz	n/a
Phase Noise @1 GHz (20 kHz offset)	n/a
Frequency Switching (Typical)	n/a
Harmonics @1 GHz	n/a
IQ Modulation BW Internal/External	n/a
Non-Harmonics @1 GHz	n/a
Sweep Mode	List Streaming
Baseband Generator Mode	n/a
Software-General Purpose	AM, FM, PM Multifunction Generator Pulse Pulse Train Generator Chirp
Software-Cellular/Wireless Connectivity	n/a
Software-Audio/Video Broadcasting	n/a
Software-Detection/Positioning/Tracking/Navigation	n/a
Waveform Playback Memory	n/a
Frequency Modulation-Maximum Deviation @1 GHz	n/a
Frequency Modulation-Rate @100 kHz Deviation	n/a
Phase Modulation-Maximum Deviation	n/a
Phase Modulation-Maximum Deviation in High-BW Mode	n/a
Amplitude Modulation-Maximum Depth	n/a
Amplitude Modulation-Rate	n/a
Applications Available	Yes

Specifications
UXG X-Series Agile Signal Generator
Frequency Range Options
Option	Description
N5193A-520	Frequency Range, 10 MHz to 20 GHz
N5193A-540	Frequency Range, 10 MHz to 40 GHz
