配置型號包含以下特性:
RF & Microwave Signal GeneratorsRF Generators >=40 GHzBenchtop1kHz <= 100kHz50GHz <= 85GHz特性 | 參數 |
---|---|
Form Factor | Benchtop |
Low Frequency (range) | 1kHz <= 100kHz |
High Frequency (range) | 50GHz <= 85GHz |

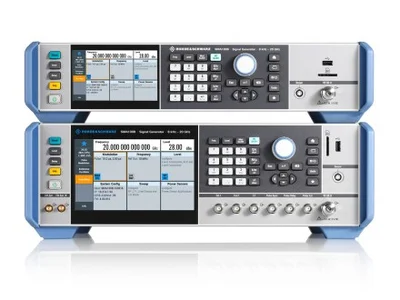

The R&S SMA100B is the first choice for all applications requiring extremely clean analog signals. For LO substitution in radar applications, the SMA100B can generate microwave signals with extremely low close-in SSB phase noise, enabling radar systems to detect even very slow objects. For testing analog-to-digital converters (ADC), the SMA100B produces signals with extremely low jitter and highest spurious-free dynamic range (SFDR).
Via a second, independent output, the SMA100B can at the same time provide extremely pure clock signals for ADC testing with lowest wideband phase noise.In automated production environments, the R&S®SMA100B generator's ultra high output power eliminates the need for additional amplifiers while keeping harmonics extremely low.
With the SMA100B, it is no longer necessary to choose between signal purity and high output power. It is the only signal generator that can supply signals with ultra high output power in combination with extremely low harmonic signal components, setting new standards for highend analog signal generators. The RSMA100B covers all fields of application, from research and development to production, service and maintenance. To meet the specific needs of any given application, the base unit's already excellent performance can be improved with options. Different levels to improve the SSB phase noise and diverse stages to maximize the output power can be selected.
The R&S®SMA100B RF and microwave signal generator delivers maximum performance without compromise. It provides purest output signals while maintaining the highest output power level, far outpacing the competition. As the world's leading signal generator, it can handle the most demanding component, module and system T&M tasks in the RF semiconductor, wireless communications and aerospace and defense industries.
Key Features |
Frequency range from 8 kHz to 3 GHz, 6 GHz, 12.75 GHz, 20 GHz, 31.8 GHz, 40 GHz, 50 GHz and 67 GHz (overrange up to 72 GHz) |
Excellent SSB phase noise of –152 dBc (typ.) at 1 GHz and –132 dBc (typ.) at 10 GHz, each at 10 kHz offset |
Virtually no wideband noise (–162 dBc (meas.) at 10 GHz and 30 MHz offset) |
Maximum output power exceeds 30 dBm across wide frequency ranges |
Exceptionally low harmonics |
State-of-the-art GUI with touch display |
Specifications | ||
SMA100B RF Signal Generator | ||
Ordering Information | ||
Model | Order Number | Description |
Base Unit | ||
SMA100B | 1419.8888.02 | Signal generator (1) including power cable and quick start guide |
Frequency Options | ||
SMAB-B103 | 1420.8488.02 | 8 kHz to 3 GHz |
SMAB-B106 | 1420.8588.02 | 8 kHz to 6 GHz |
SMAB-B112 | 1420.8688.02 | 8 kHz to 12.75 GHz |
SMAB-B120 | 1420.8788.02 | 8 kHz to 20 GHz |
SMAB-B131 | 1420.8888.02 | 8 kHz to 31.8 GHz |
SMAB-B140 | 1420.8988.02 | 8 kHz to 40 GHz |
SMAB-B140N | 1420.8965.02 | 8 kHz to 40 GHz |
SMAB-B150 | 1420.9049.02 | 8 kHz to 50 GHz |
SMAB-B150N | 1420.9026.02 | 8 kHz to 50 GHz |
SMAB-B167 | 1420.9149.02 | 8 kHz to 67 GHz |
SMAB-B167N | 1420.9126.02 | 8 kHz to 67 GHz |
Platform Height Options | ||
SMAB-B92 | 1420.8288.04 | 2 HU with 5" touch display |
SMAB-B93 | 1420.8388.04 | 3 HU with 7" touch display |
Note:
(1) The base unit can only be ordered with an R&S®SMAB-B1xx frequency option and an R&S®SMAB-B92 or R&S®SMAB-B93 platform height option.
