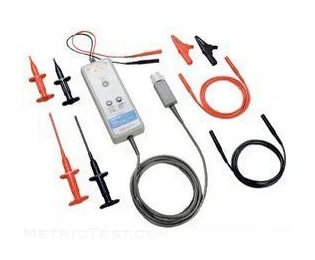

Tektronix P5205A

Configure Unit

High Voltage Differential Probe; 100 MHz, 1300 V

Model

P5205A

Manufacturer

Tektronix

Configured models contain the following attributes:

Oscilloscope Probes10MHz <= 100MHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Attribute	Value
High Frequency (range)	10MHz <= 100MHz

Product Overview

A high voltage differential probe is used for measuring the voltage difference between two test points where neither test point is at ground. High voltage differential probes from Tektronix can be used for signals up to 6000 V. These probes are the best choice for making non-ground referenced, floating or isolated measurements in large part due to their common mode rejection capability.

The THDP0200 and P5205A are active differential probes that are capable of safely measuring differential voltages up to ±1500 V. The probes are effective in making measurements in IGBT circuits such as motor drives and power converters.

Key Features

Bandwidths up to 200 MHz

Up to 6000 V differential (DC + pk AC)

Up to 2300 V common (RMS)

Overrange Indicator

Safety Certified

Switchable Attenuation

Switchable bandwidth limit

Benefits

Applications

Floating measurements

Switching power supply design

Motor drive design

Electronic ballast design

CRT display design

Power converter design and service

Power device evaluation

Connectivity

BNC interface (P5200A probes)

TekVPI® interface (TMDP and THDP Series probes)

TekProbe® interface (P5202A, P5205A, and P5210A Series probes)

Specifications
High-voltage Differential Probes
Model Overview
Model	P5200A	P5202A	P5205A	P5210A
Attenuation	50X / 500X	20X / 200X	50X / 500X	100X / 1000X
Differential Voltage	500X: ±1300 V 50X: ±130 V	200X: ±640 V 20X: ±64 V	500X: ±1300 V 50X: ±130 V	1000X: ±5600 V 100X: ±560 V
Common Mode Voltage	±1300 V	±640 V	±1300 V	±5600 V
Maximum Input Voltage-to-Earth	1000 V CAT II	450 V CAT l 300 V CAT ll	1000 V CAT II	2300 V CAT l 1000 V CAT III
Bandwidth	50 MHz	100 MHz	100 MHz	50 MHz
Differential Input Impedance	10 MΩ \|\| 2 pF	5 MΩ \|\| 2 pF	10 MΩ \|\| 2 pF	40 MΩ \|\| 2.5 pF
Input Impedance between each Input and Ground	5 MΩ \|\| 4 pF	2.5 MΩ \|\| 4 pF	5 MΩ \|\| 4 pF	20 MΩ \|\| 5 pF
Typical CMRR	DC: >80 dB 100 kHz: >60 dB 3.2 MHz: >30 dB 50 MHz: >26 dB	DC: >80 dB 100 kHz: >60 dB 3.2 MHz: >40 dB 50 MHz: >30 dB	DC: >80 dB 100 kHz: >60 dB 3.2 MHz: >40 dB 50 MHz: >30 dB	DC: >80 dB 100 kHz: >60 dB 3.2 MHz: >40 dB 50 MHz: >30 dB
Cable Length	1.8 m	1.8 m	1.8 m	1.8 m

Specifications
High Voltage Differential Probes
Model Overview
Model	Attenuation	Bandwidth	Input Impedance	Maximum Voltage
P5200A	50X / 500X	50 MHz	10 MΩ \|\| 2 pF	500X: ± 1300 V 50X: ± 130 V
P5202A	20X / 200X	100 MHz	5 MΩ \|\| 2 pF	200X: ± 640 V 20X: ± 64 V
P5205A	50X / 500X	100 MHz	10 MΩ \|\| 2 pF	500X: ± 1300 V 50X: ± 130 V
THDP0200	50X / 500X	200 MHz	10 MΩ \|\| 2 pF	500X: ± 1500 V 50X: ± 150 V
TMDP0200	25X / 250X	200 MHz	5 MΩ \|\| 2 pF	250X: ± 750 V 25X: ± 75 V
P5210A	100X / 1000X	50 MHz	40 MΩ \|\| 2.5 pF	1000X: ± 5600 V 100X: ± 560 V
THDP0100	100X / 1000X	100 MHz	40 MΩ \|\| 2.5 pF	1000X: ± 6000 V 100X: ± 600 V
TDP0500	5X / 50X	500 MHz	1 MΩ \|\| ≤ 1 pF	50X: ± 42 V 5X: ± 4.2 V
TDP1000	5X / 50X	1 GHz	1 MΩ \|\| ≤ 1 pF	50X: ± 42 V 5X: ± 4.2 V
P6251	5X / 50X	1 GHz	1 MΩ \|\| ≤ 1 pF	50X: ± 42 V 5X: ± 4.2 V
