The 2 series MSO unlocks more space on your bench without compromising performance. The thin, portable, and lightweight 2 Series MSO offers bandwidths from 70 MHz to 500 MHz and a 2.5 GS/s max sample rate. Available with either two or four channels, the 2 Series MSO features a capacitive touchscreen and can be equipped with several options, including 16-channel MSO, 50 MHz function generator, and 4-bit pattern generator. An optional battery pack lets you take it easily from your bench to the field or wherever your measurements take you.

Key Benefits

• Compact
• Lightweight
• Portable
• Modern UI
• Full bench capability

Specifications

• Product Range: 2 series MSO
• Analog Channels: 2 or 4
• Bandwidth: 70MHz/100MHz/200MHz/350MHz/500MHz
• Sampling Rate: 2.5 GS/s Half channels  and 1.25 GS/s All channels
• Record Length: 10 M points per channel
• Display Type: • 10.1-inch TFT color • WXGA (1280 x 800) resolution • Capacitive (multi-touch) touchscreen
• Resolution: 8 bit
• Ports: 2 USB Hot, 1 USB Device, 1 Ethernet
• Standard Warranty: 1 year

Dimensions

Instrument only

• Height 8.26 in (210 mm)
• Width 13.54 in (344 mm)
• Depth 1.59 in (40.4 mm)

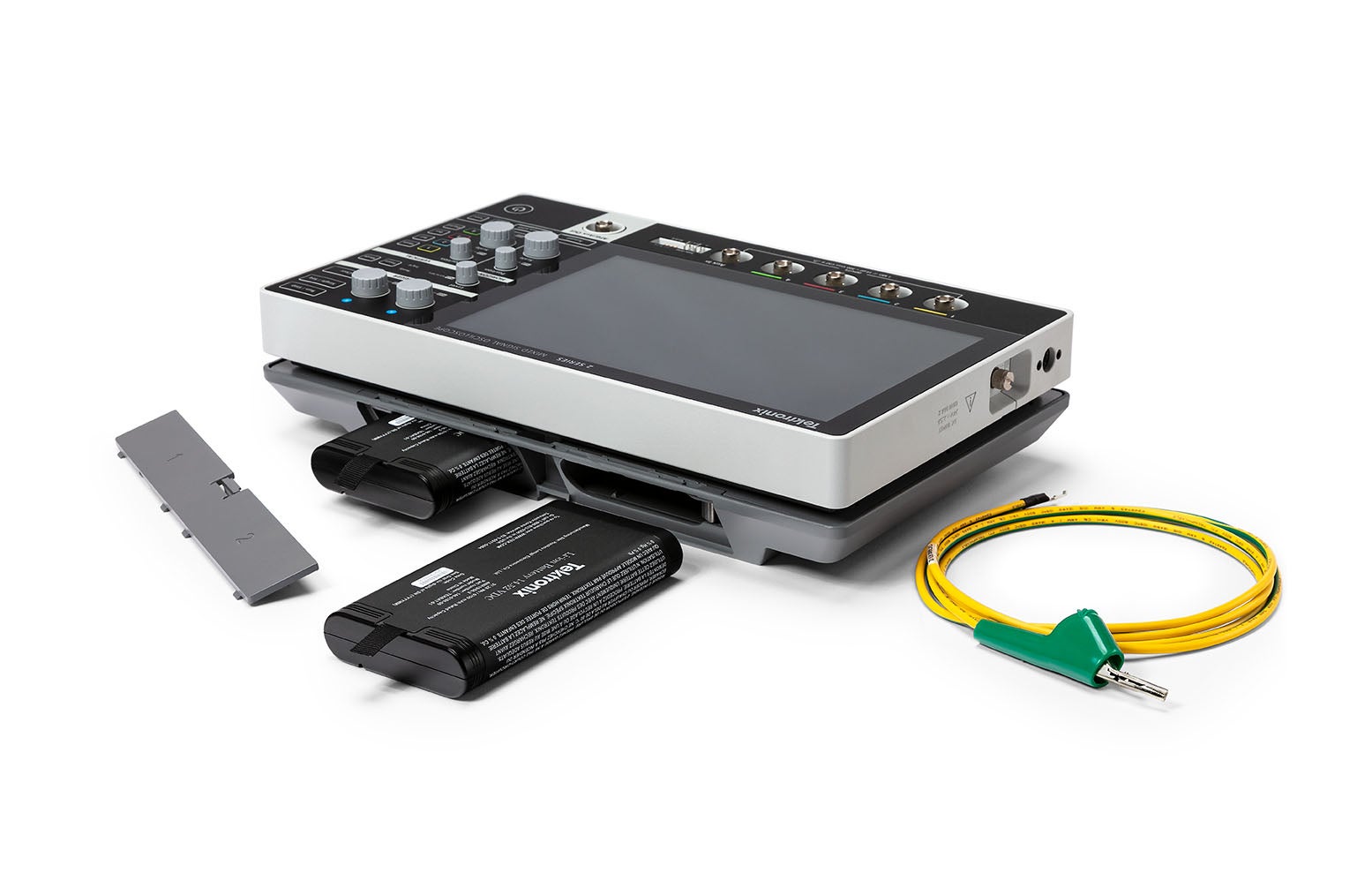

Instrument with battery pack

• Height 8.26 in (210 mm)
• Width 13.54 in (344 mm)
• Depth 3.07 in (78 mm)

Weight

Instrument only

• 1.8 kg (4 lbs)

Instrument with battery pack

• 3.2 kg (7 lbs) – one battery
• 3.6 kg (8 lbs) – two batteries
