Tektronix MSO22
Available to Buy Online
View Configurations
2 Series MSO Mixed Signal Oscilloscope; 2-Channel
Model
MSO22Product Family
Oscilloscopes & Logic AnalyzersManufacturer
TektronixConfigured models contain the following attributes:
Oscilloscopes & Logic AnalyzersOscilloscopes < 1GHzConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview

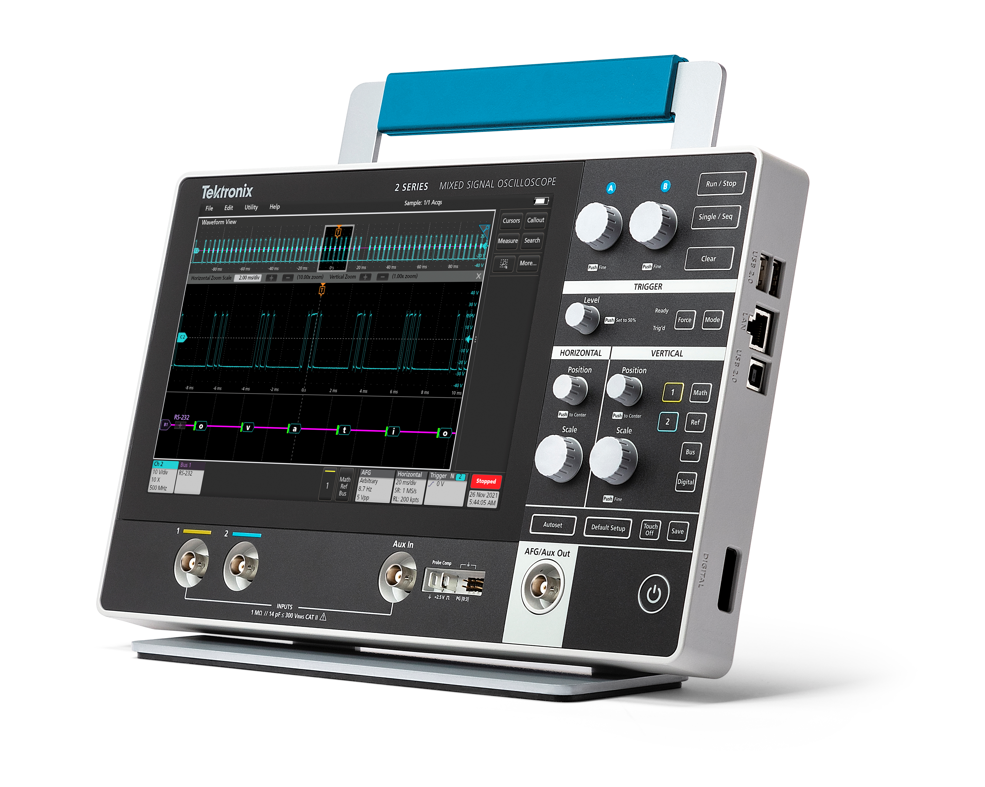

Unlock more space on your bench without compromising performance. At only 1.5 inches thick and less than 4 pounds, the 2 Series MSO is a full-featured, realtime touchscreen oscilloscope in a compact, portable form factor that feels like a tablet. On the benchtop, in the classroom, or to the field, take it wherever your measurement challenges take you.
The 2 series MSO unlocks more space on your bench without compromising performance. The thin, portable, and lightweight 2 Series MSO offers bandwidths from 70 MHz to 500 MHz and 2.5 GS/s max sample rate.
With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope The optional battery pack extends the instrument capabilities by enabling the same instrument that is used in the lab to also be used in the field. A large catalog of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.
| Key Features |
| Thin, Lightweight Design |
| Battery Powered |
| Modern Touchscreen UI |
| Software Upgrade Enabled |
| Full Featured Analysis and Serial Decodes |
| Benefits | |
| Compact Oscilloscope for Daily Debug and Test | Though small enough to fit into a laptop bag, the 2 Series MSO offers bandwidths up to 500 MHz with a max sample rate of 2.5 GS/s and is available with 2 or 4 analog channels. The front and the side I/O enable easy access and connectivity. The optional detachable battery pack gives you flexibility for bench or field use. |
| Simple Touchscreen Interface and Controls | The 2 Series MSO offers the same award-winning touchscreen user interface and simplified control panel you’ve come to expect on the most advanced Tektronix oscilloscopes. - Simplified front panel with only the most critical controls - Colored LED ring lights around the knobs indicate active sources or parameters to adjust - Colored LED light under buttons indicate status |
| Comprehensive Debug with One Instrument | With several integrated options, the 2 Series MSO is equipped for all your debugging needs in just one instrument. - Built-in 16 MSO channels for testing digital circuits* - 50 MHz AFG, 4-bit pattern generator* for simulating the circuit under test - Supports a variety of probes to capture a wide range of signals *Available with future software releases. |
| Comprehensive Analysis for Fast Insight | A full suite of analysis tools provides immediate access to instrument configuration or waveform management tasks with a single tap. - Waveform and screen-based cursors with user-selectable readout location - Unlimited automated measurements - Basic and advanced waveform math including arbitrary equation editing - FFT for spectrum analysis |
| Optional Accessories Add Versatility | - Two-slot battery pack supports up to eight hours of battery life and can be hot swapped in the field - Rack mount kit attaches easily to VESA mount and allows access to all instrument ports - Optional protective case safeguards instrument from drops up to 40 inches and includes kickstand and carrying bag - Compatible with many off-the-shelf VESA accessories, including a rolling cart, cup holder mount, desk arm mount, and more |
| Analyze, Share, Collaborate with Oscilloscope Software | Capture data outside the lab, classroom, or any location and collaborate easily with colleagues on the next bench or in the next time-zone. - Built-in VNC server to control instrument from devices such as PC, tablet, or phone - TekDrive cloud storage facilitates record-keeping and collaboration - Analyze data on or off the scope with TekScope PC analysis software that works just like the scope |
| Specifications | |
2 Series MSO Mixed Signal Oscilloscope | |
| Feature | Parameter |
| Analog Input Channels | 2 or 4 inputs |
| Bandwidth | 70 MHz 100 MHz 200 MHz 350 MHz 500 MHz |
| Sample Rate | 2.5 GS/s Half channels 1.25 GS/s All channels |
| Record Length | 10 M points per channel |
| Vertical Resolution | 8 bits ADC Up to 16 bits in high-resolution mode |
| Standard Trigger Types | Edge pulse width runt timeout logic setup & hold rise/ fall time parallel bus |
| Standard Analysis | Cursors: Waveform, V bars, H bars, and V&H bars Measurements: 36 Plots: XY, limit mask Math: Basic waveform arithmetic, FFT, and advanced equation editor Search: Search on any trigger criteria |
Serial trigger, Decode and Analysis (optional) | I²C SPI RS-232/422/485/UART CAN CAN FD LIN SENT |
Digital Input Channels (optional, available in future) | 16 inputs |
Arbitrary Function Generator (optional) | 50 MHz waveform generation Waveform types: Arbitrary sine square pulse ramp triangle DC level gaussian lorentz exponential rise/fall sin(x)/x random noise haversine cardiac |
Digital Pattern Generator (optional, available in future) | 4 bit User defined, manual, and toggle |
Digital Voltmeter (optional, available in future) | 4-digit AC RMS, DC, and DC+AC RMS voltage measurements 5-digit frequency counter |
Trigger Frequency Counter (optional, available in future) | 8-digit |
| Display | 10.1-inch TFT color WXGA (1280 x 800) resolution Capacitive (multi-touch) touchscreen |
| Connectivity | USB 2.0 Host USB 2.0 Device (2 ports) LAN (10/100 MB/s Base-T Ethernet) |
Battery Pack (optional) | Battery pack with 2 battery slots and hot-swap capability Typical usage 8 hours with dual batteries |
| Remote Control | Remotely view and control the oscilloscope over a network connection through remote Virtual Network Computing (VNC). |
| VESA Mount | 100 mm x 100 mm VESA interface |
| Security | Kensington lock |
| Standard Probes | One TPP0200 200 MHz, 10x voltage probe per channel |
Collaborative Tools (optional) | TekDrive: Save and recall waveforms, setups, and screenshots from TekDrive cloud. Share data with other members on the team. TekScope: Perform basic instrument control and transfer waveform data to PC. Offline analysis such as protocol decode, automated measurements, etc on saved data. |
| Warranty | One year standard |
| Specifications | |||||
2 Series MSO Mixed Signal Oscilloscope | |||||
| Model Overview | |||||
| Model | Analog Bandwidth | Analog Channels | Digital Channels | Sample Rate | Record Length |
| MSO22 | 70 MHz - 500 MHz | 2 | 16 | Up to 2.5 GS/s | 10 M |
| MSO24 | 70 MHz - 500 MHz | 4 | 16 | Up to 2.5 GS/s | 10 M |
| Specifications | |
| Mixed Signal Oscilloscope | |
| Series Overview | |
| Series | Description |
| 2 Series MSO | Compact, portable, battery operated instrument |
| 3 Series MDO | Extreme versatility for any bench |
| 4 Series MSO | Up to 6 channels of high visibility bench test |
| 5 Series B MSO | Advanced analysis and up to 8 inputs |
| 6 Series B MSO | Unmatched detail on high speed signals |
| Specifications | |
2 Series MSO Mixed Signal Oscilloscope | |
| Model Overview | |
| Model | Description |
| MSO22 | Mixed Signal Oscilloscope: 2 Analog Channels 2.5 GS/s Sample Rate 10 Mpts Record Length Included Accessories: TPP0200 200 MHz, 10:1 probe (one per channel) Instrument stand Installation and safety manual (translated in English, Japanese, and Simplified Chinese) Embedded help External power supply Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration One-year warranty covering all parts and labor cost on the instrument. One-year warranty covering all parts and labor cost on included probes. |
| MSO24 | Mixed Signal Oscilloscope: 4 Analog Channels 2.5 GS/s Sample Rate 10 Mpts Record Length Included Accessories: TPP0200 200 MHz, 10:1 probe (one per channel) Instrument stand Installation and safety manual (translated in English, Japanese, and Simplified Chinese) Embedded help External power supply Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration One-year warranty covering all parts and labor cost on the instrument. One-year warranty covering all parts and labor cost on included probes. |
| Specifications | |
2 Series MSO Mixed Signal Oscilloscope | |
| Options | |
| Bandwidth Option | Bandwidth Range |
| 2-BW-70 | 70 MHz |
| 2-BW-100 | 100 MHz |
| 2-BW-200 | 200 MHz |
| 2-BW-350 | 350 MHz |
| 2-BW-500 | 500 MHz |
