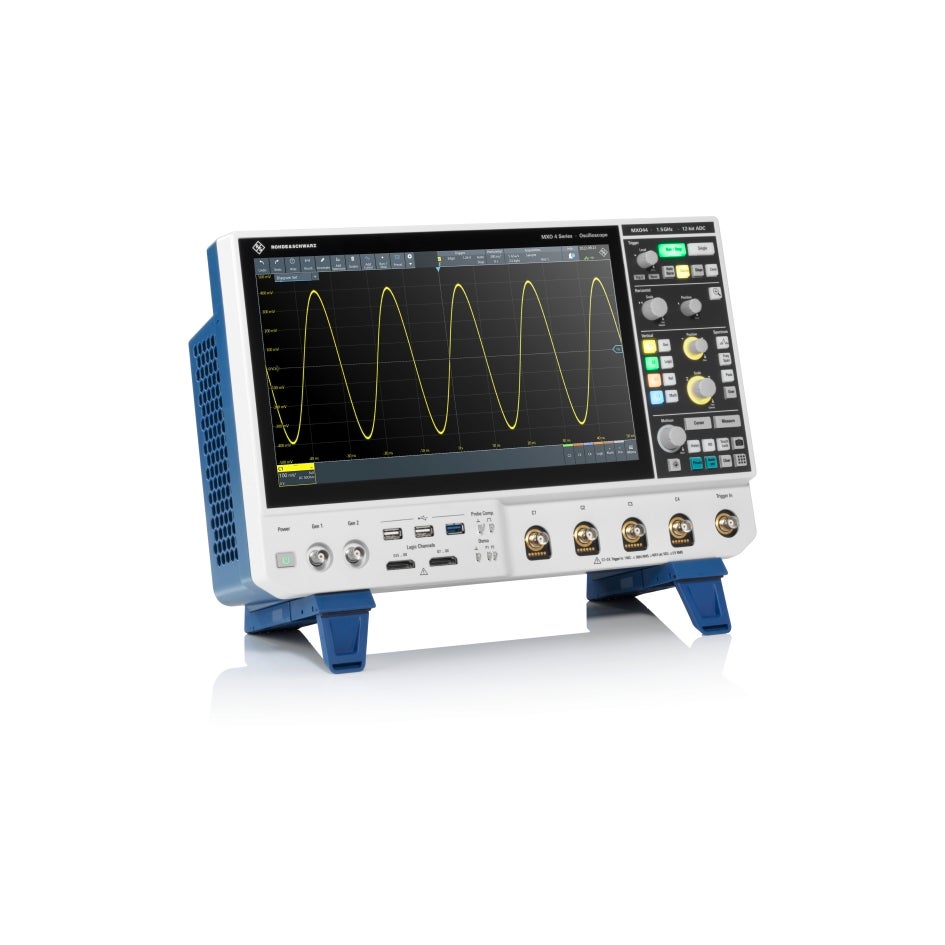

This next generation scope from R&S is one of the fastest and most accurate scopes available in the mid-level MSO category. Measure your signals accurately with the lowest measurement noise and highest vertical resolution. Advanced digital triggering system allows easy isolation of subtle signal variations. A responsive deep memory allows engineers to capture more signals.

Key Benefits

• Fastest speed in the industry
• Deep memory
• Intuitive UI/Display
• Quick and easy analysis tools

Specifications

• Analog Channels: 4
• Bandwidth: 1 GHz/500 MHz/350 MHz/200 MHz/100 MHz/50 MHz/20 MHz
• Sampling Rate: maximum 5 Gsample/s 2 channels and maximum 2.5 Gsample/s 4 channels
• Diagram Types: Yt, zoom, spectrum
• Display Type: 13.3" LC TFT color display with capacitive touchscreen | 1920 × 1080 pixel (Full HD)
• Resolution: 12 bit, 18 bit for high definition mode (without reduction of the sampling rate)
• Interfaces: Three USB 3.0 and two USB 2.0 ports, USB device port, Ethernet, and HDMI™ port
• Standard Warranty: 3 years, base unit

Applications

• EMI Debugging
• Logic Analysis
• Serial Bus Analysis
• Power Analysis and Power Integrity
• Frequency Response Analysis
• Integrated Arbitrary Generator

Dimensions

Height

• 10.99 in (279 mm)

Width

• 16.3 in (414 mm)

Depth

• 6.38 in (162 mm)

Weight

• 13.23 lbs. (6.0 kg)
