Rohde&Schwarz current probes enable accurate, non-intrusive measurement of DC and AC currents. Different models are available to measure currents in the range of 1 mA to 2000 A with a maximum bandwidth of up to 120 MHz.
The R&S®RT-ZC current probes precisely measure direct and alternating current without interrupting the power circuit for the measurement. The extra-large opening on the R&S®RT-ZC10 accommodates conductors of up to 20 mm in diameter. The R&S®RT-ZC10 can measure peak currents up to 300 A (500 A for a single pulse). When measuring low-amplitude, high-frequency currents, the more compact R&S®RT-ZC20 with a measurement bandwidth of 100 MHz is ideal.
Rohde&Schwarz current probes are characterized by their robust design and easy operation. The degauss and offset correction is performed directly at the probe connector. The compact R&S®RT-ZA13 probe power supply supplies up to four current probes. The current probes can be selected as predefined probes on the R&S®RTO, R&S®RTE, R&S®RTM and R&S®RTA oscilloscopes.
| Specifications |
|
|
|
|
|
| RT-Zxx Series |
|
|
|
|
|
High Voltage
and
Current Probes
|
|
|
|
|
|
| Model Overview |
|
|
|
|
|
| Model | Bandwidth | Sensitivity | Dynamic Range | Rise Time | Comment |
| Current Probes |
|
|
|
|
|
| RT-ZC02 | 20 kHz | 0.01 V/A
0.001 V/A
| ±200 A
±2000 A
| 5 µs | Battery Powered |
| RT-ZC03 | 100 kHz | 0.1 V/A | 20 A (RMS)
±30 A (peak
| 1 µs | Battery Powered |
| RT-ZC05B | 2 MHz | 0.01 V/A | 500 A (RMS)
700 A (peak)
| 175 ns | Power Supply
via Rohde&Schwarz probe interface
|
| RT-ZC10 | 10 MHz | 0.01 V/A | 150 A (RMS)
±300 A (peak)
±500 A (peak)
(single pulse)
| 35 ns | Power Supply
via R&S®RT-ZA13
|
| RT-ZC10B | 10 MHz | 0.01 V/A | 150 A (RMS)
±300 A (peak)
±500 A (peak)
(single pulse)
| 35 ns | Power Supply
via Rohde&Schwarz probe interface
|
| RT-ZC15B | 50 MHz | 0.1 V/A | 30 A (RMS)
±50 A (peak)
| 7 ns | Power Supply
via Rohde&Schwarz probe interface
|
| RT-ZC20 | 100 MHz | 0.1 V/A | 30 A (RMS)
±50 A (peak)
| 3.5 ns | Power Supply
via R&S®RT-ZA13
|
| RT-ZC20B | 100 MHz | 0.1 V/A | 30 A (RMS)
±50 A (peak)
| 3.5 ns | Power Supply
via Rohde&Schwarz probe interface
|
| RT-ZC30 | 120 MHz | 1 V/A | 5 A (RMS)
7.5 A (peak)
| 2.9 ns | Power Supply
via R&S®RT-ZA13
|
| RT-ZC31 | 120 MHz | 0.1 V/A
1 V/A
10 V/A
| 30 A (RMS)
5 A (RMS)
0.5 A (RMS)
| 2.9 ns | Power Supply
via R&S®RT-ZA13
|
| Specifications |
|
|
| RT-Zxx Series |
|
|
| Model Overview |
|
|
| Model | Order Number | Description |
| RT-ZC02 | 1333.0850.02 | 20 kHz current probe, AC/DC, 0.01/0.001 V/A, 1000 A, 300 V (RMS) CAT III, BNC
Including:
operating manual
|
| RT-ZC03 | 1333.0844.02 | 100 kHz current probe, AC/DC, 0.1 V/A, 30 A, 300 V (RMS) CAT III, BNC
Including:
operating manual
|
| RT-ZC10 | 1409.7750K02 | 10 MHz current probe, AC/DC, 0.01 V/A, 150 A (RMS), BNC
Including:
carrying case
operating manual
|
| RT-ZC20 | 1409.7766K02 | 100 MHz current probe, AC/DC, 0.1 V/A, 30 A (RMS), BNC
Including:
carrying case
operating manual
|
| RT-ZC30 | 1409.7772K02 | 120 MHz current probe, AC/DC, 1 V/A, 5 A (RMS), BNC
Including:
carrying case
operating manual
|
| RT-ZC31 | 1801.4932K02 | 120 MHz current probe, AC/DC, 0.1 V/A / 1 V/A / 10 V/A, 30 A (RMS), BNC
Including:
carrying case
operating manual
|
| RT-ZC05B | 1409.8204.02 | 2 MHz current probe, AC/DC, 0.01 V/A, 500 A (RMS), Rohde & Schwarz probe interface
Including:
carrying case
operating manual
|

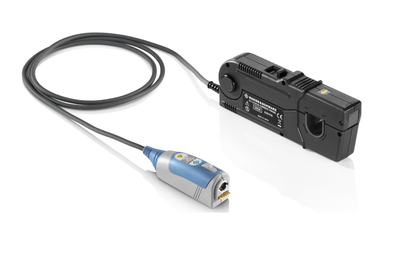

| RT-ZC10B | 1409.8210.02 | 10 MHz current probe, AC/DC, 0.01 V/A, 150 A (RMS), Rohde & Schwarz probe interface
Including:
carrying case
operating manual
|
| RT-ZC15B | 1409.8227.02 | 50 MHz current probe, AC/DC, 0.1 V/A, 30 A (RMS), Rohde & Schwarz probe interface
Including:
carrying case
operating manual
|
| RT-ZC20B | 1409.8233.02 | 100 MHz current probe, AC/DC, 0.1 V/A, 30 A (RMS), Rohde & Schwarz probe interface
Including:
carrying case
operating manual
|
