Keysight Technologies M9391A

PXIe Vector Signal Analyzer

Model

M9391A

Product Family

RF & Microwave Spectrum Analyzers

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

RF & Microwave Spectrum AnalyzersSpectrum Analyzers-Performance1GHz <= 10GHz100kHz <= 1MHz

Configurations

Key Specs

Product Overview

Resources

Choose your configuration

Show:

Search & combine Options e.g 'C4000; M400'

Available Options for Keysight Technologies M9391A

Option	Description
DEMACC	Demo Accessories
M9391A-B10	Analysis bandwidth, 100 MHz
M9391A-B16	Analysis bandwidth, 160 MHz
M9391A-F06	Frequency range, 1 MHz to 6 GHz
M9391A-M01	Memory, 128 MSa
M9391A-M10	Memory, 1024 MSa
M9391A-UNZ	Fast switching
M9391ADEM-CFG001	VSA Demo Systems Integrated for Internal DEMO Use Only with options -701

Showing 1 - 1 of 1 results

PXIe Vector Signal Analyzer 1MHz to 6GHz; Analysis bandwidth, 160 MHz; Frequency range, 1 MHz to 6 G

Product ID: P-219122

M9391A-F06 • Frequency range, 1 MHz to 6 GHzM9391A-UNZ • Fast switchingM9391A-M10 • Memory, 1024 MSaM9391A-B16 • Analysis bandwidth, 160 MHz

Rent

Availability confirmed on quote

Quote

Quantity

No. weeks

Start date

Buy Used

Availability confirmed on quote

Enquire

Email +44 (0)20 84 200 200

Source New

Enquire about our range of financial solutions

Showing 1 - 1 of 1 results

* Prices & availability are subject to change without notice. All prices may vary due to shipping terms, VAT or sales tax, import duties, and exchange rates. Products may not be available in all locations. Any listed savings are based on the full list price of new instruments and are indicative depending on date of list; actual savings may vary based on option(s), configuration, currency exchange rates, and other factors. Warranty may vary by category or specific available product. All terms to be confirmed by full written quote or available to review in the Payment page when you buy online.

¹ For Certified Pre-Owned equipment, units go into 23-step certification checks before shipping and we will confirm timescales.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
High Frequency (range)	1GHz <= 10GHz
Low Frequency (range)	100kHz <= 1MHz

Product Overview

RF requirements keep growing while timelines keep shrinking. To help ease the technical and business pressures, the right test solution provides continuity in measurements and longevity in capability. In the evolution of modular RF test solutions, the Keysight PXI VSA is the next logical step in signal analysis. With raw hardware speed and X-Series measurement applications, it delivers proven results—faster. From fully modular hardware to software leverage to worldwide support, the PXI VSA is the low-risk way to manage change and be ready for tomorrow—today

A typical M9391A configuration includes four individual PXIe modules – M9300A frequency reference, M9301A synthesizer, M9214A Digitizer and M9350A Downconverter. It can be combined with the M9381A Vector Signal Generator for a fast, compact RF component test solution.

Functionality:

1 MHz to 3 GHz or 6 GHz
40 MHz (standard), 100, or 160 MHz analysis bandwidth
Support for up to 8 time-synchronous, phase-coherent channels

Performance:

±0.45 dB absolute amplitude accuracy
-157 dBm displayed average noise level (DANL)
-70.7 dB W-CDMA ACLR dynamic range
-119 dBc/Hz Phase Noise @ 1 GHz, 10 kHz offset

Speed:

Reduce RF components test times by enabling power servos to converge faster with outstanding linearity, repeatability and absolute amplitude accuracy
High speed embedded hardware accelerated Power, Spectrum and IQ measurements
X-series measurements applications for modular instruments include resource manager software to quickly switch between hardware commands and standards-based measurements

Measurement Applications & Software:

Supports X-series measurement applications for modular instruments, covering cellular communication (GSM/EDGE/Evo, cdma2000/cdmaOne, W-CDMA/HSPA+, 1xEV-DO, TD-SCDMA/HSDPA, LTE FDD, LTE TDD) and wireless connectivity standards (WLAN 802.11a/b/g/n/ac)
Advanced analysis of more than 75 signal formats, with the 89600 VSA software
SystemVue to accelerate design workflow and MATLAB data analysis software for general purpose data analysis, visualization, and measurement automation.
Drivers and documentation for Microsoft® C/C++, C#, or Visual Basic, MATLAB, VEE, LabVIEW and LabWindows/CVI software platforms

Specifications

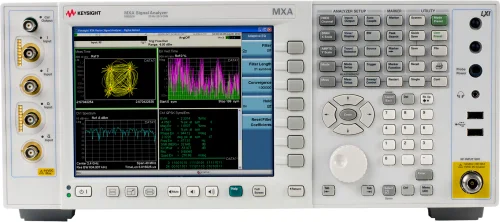

MXA Signal Analyzer
