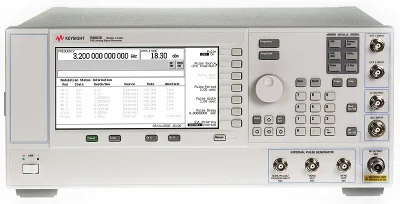

Keysight Technologies E8663D
Available to Buy Online
View Configurations
PSG RF Analog Signal Generator; 100 kHz to 9 GHz
Model
E8663DProduct Family
RF & Microwave Signal GeneratorsManufacturer
Keysight TechnologiesConfigured models contain the following attributes:
RF & Microwave Signal GeneratorsRF Generators <17 GHz1GHz <= 10GHzBenchtop1kHz <= 100kHzConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Indicates attributes available at part level. See Configurations tab for part detail.
| Attribute | Value |
|---|---|
| High Frequency (range) | 1GHz <= 10GHz |
| Form Factor | Benchtop |
| Low Frequency (range) | 1kHz <= 100kHz |
Product Overview
High-performance analog signal generator offers high output power, low phase noise, and tunes over a frequency range from 100 kHz to 9 GHz for radar systems, satellite evaluation, and when a low noise local oscillator is required.
The E8663D analog signal generator provides the industry’s lowest phase noise available in an off-the-shelf signal generator. With optional analog modulation (AM, FM, ØM, and pulse) capability, superior level accuracy and high output power, the E8663D is the right choice for demanding applications such as radar system development, satellite communications evaluation, or when a very low noise local oscillator or reference signal is needed. Built on the outstanding legacy of the 8663A, the E8663D delivers improved performance and is fully code compatible with its predecessor for seamless upgrades to existing test systems. Enhanced narrow pulse modulation and extended support life are optionally available.
| Key Features |
| Tackle demanding radar & satcom measurements with metrology-grade performance, including high output power & superior level accuracy |
| Use as an ideal reference in phase noise test systems or for analog-to-digital converter testing with the lowest phase noise in a commercial source |
| Characterize devices & circuits by adding AM, FM, ΦM & pulse modulation to your signal |
| Improve existing test system performance: E8663D is built on the outstanding legacy of the 8663A & is fully code compatible |
| Specifications | |
| E8663D PSG Signal Generator | |
| Features | Parameters |
| Frequency | n/a |
| Frequency Options | 3.2, 9 GHz |
| Performance Level | ◆◆◆◆◆◇ |
| Output Power @1 GHz | n/a |
| Phase Noise @1 GHz (20 kHz offset) | n/a |
| Frequency Switching (Typical) | n/a |
| Harmonics @1 GHz | n/a |
| IQ Modulation BW Internal/External | n/a |
| Non-Harmonics @1 GHz | n/a |
| Sweep Mode | n/a |
| Baseband Generator Mode | n/a |
| Software-General Purpose | AM, FM, PM Pulse Scan |
| Software-Cellular/Wireless Connectivity | n/a |
| Software-Audio/Video Broadcasting | n/a |
| Software-Detection/Positioning/Tracking/Navigation | n/a |
| Waveform Playback Memory | n/a |
| Frequency Modulation-Maximum Deviation @1 GHz | n/a |
| Frequency Modulation-Rate @100 kHz Deviation | n/a |
| Phase Modulation-Maximum Deviation | n/a |
| Phase Modulation-Maximum Deviation in High-BW Mode | n/a |
| Amplitude Modulation-Maximum Depth | n/a |
| Amplitude Modulation-Rate | n/a |
| Applications Available | Yes |
| Analog | Yes |
| Specifications | |
| E8663D PSG Signal Generator | |
| Model Overview | |
| Model | Description |
| E8663D | PSG RF Analog Signal Generator |
| Model/Option | |
| E8663D-503 | Frequency range from 100 kHz to 3.2 GHz |
| E8663D-509 | Frequency range from 100 kHz to 9 GHz |
| E8663D-007 | Analog ramp sweep |
| E8663D-008 | 8 GB removable flash memory |
| E8663D-063 | E8663B backwards compatibility option bundle (1EU, 1E1, 1EH, UNX, UNT) |
| E8663D-UNX | Ultra low phase noise |
| E8663D-UNY | Enhanced ultra low phase noise |
| E8663D-UNT | AM, FM, phase modulation, and LF output |
| E8663D-UNW | Narrow pulse modulation |
| E8663D-1E1 | Step attenuator |
| E8663D-1EH | Improved harmonics below 2 GHz (low-pass filters) |
| E8663D-1EM | Moves all front panel connectors to the rear panel |
| E8663D-1EU | High output power |
| E8663D-1SM | Scan modulation |
| E8663D-1CN | Front handle kit |
| E8663D-1CM | Rackmount flange kit |
| E8663D-1CP | Rackmount flange and front handle kit |
| E8663D-C09 | Move all front panel connectors to the rear panel except for the RF output connector |
| E8663D-UK6 | Commercial calibration certificate and test data |
| E8663D-A6J | ANSI Z540-1-1994 calibration |
| E8663D-AMG | Calibration + uncertainties + guardbanding (accredited) |
| E8663D-ABA | Printed copy of the English documentation set |
| Customized Product Solutions | |
| E8663D-H1S | 1 GHz external frequency reference input and output |
| E8663D-HCC | Connections for phase coherency > 250 MHz |
| E8663D-HY2 | Enhanced ultra low phase noise level 2 |
| Accessories | |
| 8120-8806 | Primary/secondary interface cable |
| 1819-0427 | 8 GByte compact flash memory card |
| E8251-60419 | Rack slide kit |
| Specifications | |
| PSG Signal Generators | |
| Series Overview | |
| Model | Description |
| E8663D | High-performance analog signal generator offers high output power, low phase noise, and tunes over a frequency range from 100 kHz to 9 GHz for radar systems, satellite evaluation, and when a low noise local oscillator is required. |
| E8257D | Metrology-grade analog signal generator offering industry-leading output power, level accuracy, and phase noise, with frequency coverage from 100 kHz to 67 GHz (extendable to 500 GHz) for testing advanced RF and microwave radar. |
| E8267D | Integrated high-performance microwave vector signal generator covers frequencies from 100 kHz to 44 GHz (extendable to 500 GHz) for design and manufacturing in aerospace defense, satellite communications, and broadband wireless. |
| Specifications | |||
| PSG Signal Generators | |||
| Series Overview | |||
| Model | E8663D | E8257D | E8267D |
| Type | Analog | Analog | Vector |
| Frequency Options | 3.2 GHz 9 GHz | 13 GHz 20 GHz 31.8 GHz 40 GHz 50 GHz 67 GHz Extend to 1.1 THz | 13 GHz 20 GHz 31.8 GHz 44 GHz Extend to 1.1 THz |
| Frequency Switching (Typical) | < 7 ms | < 7 ms | < 16 ms |
| Phase Noise @1 GHz (20 kHz offset) | -143 dBc/Hz | -143 dBc/Hz | -143 dBc/Hz |
| IQ Modulation BW Internal/External | N/A | N/A | 80 MHz / 2 GHz |
