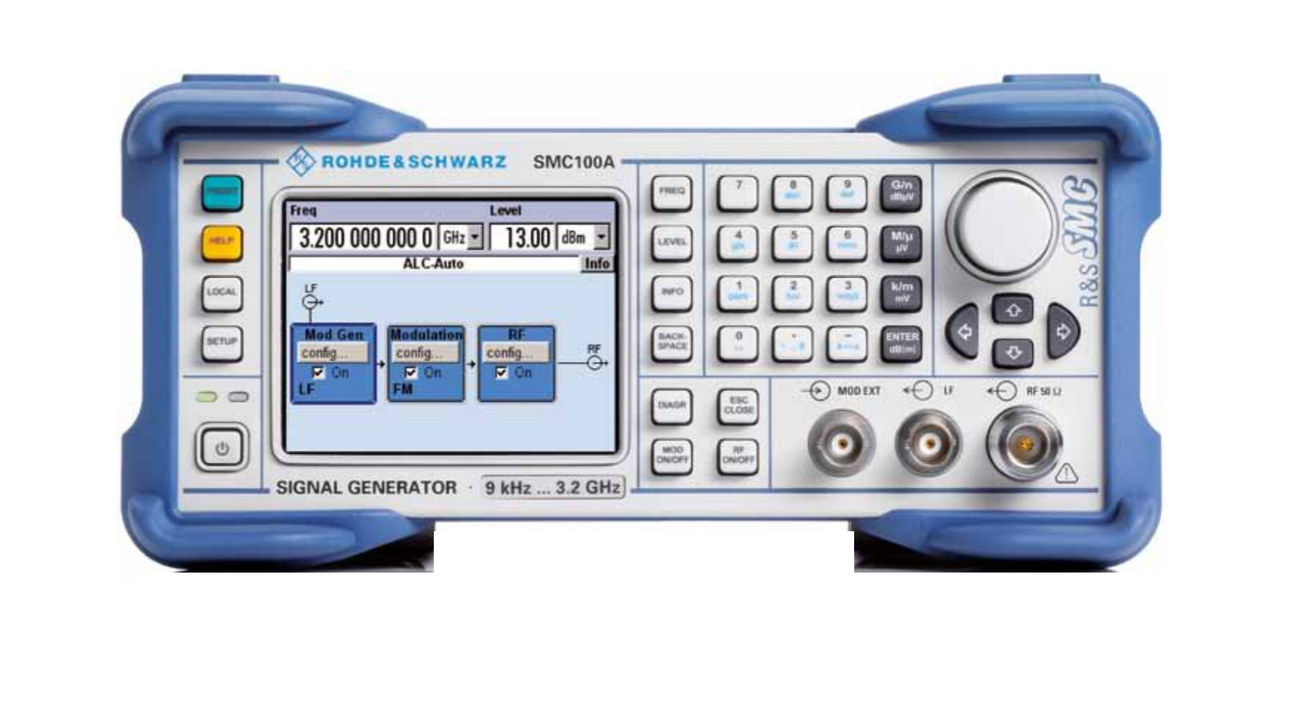

The R&S SMC100A offers outstanding signal quality at an attractive price. It covers the frequency range from 9 kHz to 1.1 GHz or 3.2 GHz. Output power is typ. > +17 dBm. All important functions (AM/FM/φM/pulse modulation) are already integrated in the instrument. This makes the SMC100A signal generator a flexible and versatile instrument.
Key Features:
- Frequency range 9 kHz to 1.1 GHz or 3.2 GHz
- Maximum output level of typ. > +17 dBm
- Optional high-stability reference oscillator
- Analog modulation modes (AM/FM/φM/pulse) integrated as standard
- Low SSB phase noise of typ. –111 dBc (f = 1 GHz, 20 kHz carrier offset, 1 Hz measurement bandwidth)
- Wideband noise of typ. < –146 dBc (f > 1 MHz, carrier offset > 10 MHz, 1 Hz measurement bandwidth)
- Nonharmonics of typ. < –72 dBc (f ≤ 1600 MHz, carrier offset > 10 kHz)
- Level error < 0.9 dB ❙ Frequency and level setting times < 5 ms ❙ Optional high-stability reference oscillator
R&S SMC100A 以經濟實惠的價格提供出色的訊號品質。其頻率範圍為 9 kHz 至 1.1 GHz 或 3.2 GHz,輸出功率典型值超過 +17 dBm。儀器內建所有重要功能(AM/FM/φM/脈衝調製),使 SMC100A 訊號產生器成為靈活多用的儀器。
主要特點:
- 頻率範圍:9 kHz 至 1.1 GHz 或 3.2 GHz
- 最大輸出電平:典型值 > +17 dBm
- 可選高穩定度參考振盪器
- 標準內建類比調製模式(AM/FM/φM/脈衝)
- 低 SSB 相位雜訊,典型值 -111 dBc(f = 1 GHz,20 kHz 載波偏移,1 Hz 測量頻寬)
- 寬頻雜訊,典型值 < -146 dBc(f > 1 MHz,載波偏移 > 10 MHz,1 Hz 測量頻寬)
- 非諧波,典型值 < -72 dBc(f ≤ 1600 MHz,載波偏移 > 10 kHz)
- 電平誤差 < 0.9 dB ❙ 頻率和電平設定時間 < 5 ms ❙ 可選高穩定度參考振盪器
