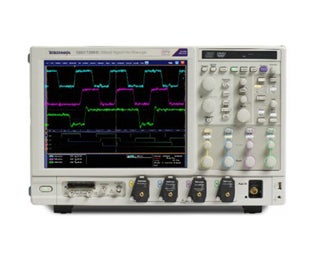

Tektronix MSO71254C

Mixed Signal Oscilloscope; 4 + 16 Channels, 12.5 GHz

型號

MSO71254C

產品類別

Oscilloscopes & Logic Analyzers

製造商

Tektronix

配置型號包含以下特性:

Oscilloscopes & Logic AnalyzersOscilloscopes 8GHz - < 20GHz2050 GS/s10GHz <= 20GHz

配置

技术指标

產品總覽

資源

讓我們為您提供準確的配置

請使用“獲取快速報價”，我們將根據您的需求與您聯繫並報價。

您也可以選擇保持聯繫，我們會為您提供正確的應用和採購解決方案。

技术指标

在選擇附件時標明其特性，有關附件詳細資訊請參見“配置”選項。

特性	參數
Channel/Port Count	20
Maximum Sample/Data Rate	50 GS/s
High Frequency (range)	10GHz <= 20GHz

產品總覽

The MSO/DPO70000 is one of the most advanced oscilloscopes in its class—enabling today's engineer to see signals better with minimal noise, debug signal anomalies faster and utilize measurement and analysis tools for automated compliance testing and other verifications. In addition, the MSO/DPO70000 is perfect for analog/digital design and debug, data communications and high-speed serial communications. See how you can use the MSO/DPO70000 for your next project to find and analyze a wide range of mixed-signal anomalies.

Key Features

Superior signal integrity and excellent signal-to-noise ratio – observe the truest representation of your waveform

Pinpoint® triggering – minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time

Visual Trigger – precisely qualify triggers and find unique events in complex waveforms

Search and Mark – provides waveform or serial bus pattern matching and software triggers for signals of interest

Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY

P7700, P7600, and P7500 TriMode™ probing system – perfectly matched signal connectivity, with calibration to probe tip

P6780, P6750, and P6717A high-performance 17-channel logic probes with bandwidths up to 2.5 GHz for connections to today's fast digital signals (MSO70000 Series only)

Benefits

Up to 33 GHz analog bandwidth and rise time as fast as 9 ps. Enables measurement on the latest high-speed serial standards

True 33 GHz Real-time Analog Bandwidth on 2 Channels with 33 GHz models

Industry-leading sample rate and timing resolution;

100 GS/s on 2 Channels (33, 25, 23, 20, 16, and 12.5 GHz models)

Four-channel Simultaneous Performance;

Up to 23 GHz Bandwidth

Up to 50 GS/s Real-time Sample Rate

Up to 500 Megasample Record Length with MultiView Zoom™ for quick navigation

Fastest Waveform Capture Rate with >300,000 wfms/s maximum per channel

16 Logic Channels with 80 ps Timing Resolution for Debug of digital and analog signals (MSO70000 Series only)

Unique iCapture® capability enables viewing analog characteristics of digital channels with single probe connection

6.25 Gb/s Real-time Serial Trigger – Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects

Application Support for High-speed Serial Industry Standards, wideband RF, Power supplies, and memory – Enables standard-specific certification, measurement automation, and ease of use

Specifications
MSO/DPO70000 Series Digital and Mixed Signal Oscilloscopes
Model Overview
Model	Analog Bandwidth	Analog Sample Rate – 2/4 Channels	Standard Memory – Analog + Digital	Analog Channels	Logic Channels
DPO70404C	4 GHz	25 GS/s	31 MS	4	-
MSO70404C	4 GHz	25 GS/s	62 MS	4	16
DPO70604C	6 GHz	25 GS/s	31 MS	4	-
MSO70604C	6 GHz	25 GS/s	62 MS	4	16
DPO70804C	8 GHz	25 GS/s	31 MS	4	-
MSO70804C	8 GHz	25 GS/s	62 MS	4	16
DPO71254C	12.5 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO71254C	12.5 GHz	100 GS/s / 50 GS/s	62 MS	4	16
DPO71604C	16 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO71604C	16 GHz	100 GS/s / 50 GS/s	62 MS	4	16
DPO72004C	20 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO72004C	20 GHz	100 GS/s / 50 GS/s	62 MS	4	16
DPO72304DX	23 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO72304DX	23 GHz	100 GS/s / 50 GS/s	62 MS	4	16
DPO72504DX	25 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO72504DX	25 GHz	100 GS/s / 50 GS/s	62 MS	4	16
DPO73304DX	33 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO73304DX	33 GHz	100 GS/s / 50 GS/s	62 MS	4	16

Specifications
MSO/DPO70000 Series Digital and Mixed Signal Oscilloscopes
Series Overview
Model	Description
Mixed Signal Oscilloscopes
MSO70404C	4 GHz Mixed Signal Oscilloscope
MSO70604C	6 GHz Mixed Signal Oscilloscope
MSO70804C	8 GHz Mixed Signal Oscilloscope
MSO71254C	12.5 GHz Mixed Signal Oscilloscope
MSO71604C	16 GHz Mixed Signal Oscilloscope
MSO72004C	20 GHz Mixed Signal Oscilloscope
MSO72304DX	23 GHz Mixed Signal Oscilloscope
MSO72504DX	25 GHz Mixed Signal Oscilloscope
MSO73304DX	33 GHz Mixed Signal Oscilloscope
Digital Phosphor Oscilloscope
DPO70404C	4 GHz Digital Phosphor Oscilloscope
DPO70604C	6 GHz Digital Phosphor Oscilloscope
DPO70804C	8 GHz Digital Phosphor Oscilloscope
DPO71254C	12.5 GHz Digital Phosphor Oscilloscope
DPO71604C	16 GHz Digital Phosphor Oscilloscope
DPO72004C	20 GHz Digital Phosphor Oscilloscope
DPO72304DX	23 GHz Digital Phosphor Oscilloscope
DPO72504DX	25 GHz Digital Phosphor Oscilloscope
DPO73304DX	33 GHz Digital Phosphor Oscilloscope
