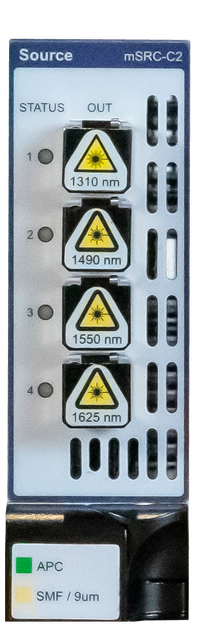

The Multiple Application Platform (MAP) broadband light source with Super-luminescent Light Emitting Diode lasers (SLED) are stabilized, high power, fixed wavelength emitters with coverage of the key telecom wavelengths of 1310, 1490, 1550 and 1625nm.
VIAVI SLEDs are highly stable sources and offer (figure 1) ±0.005 dB for standard power configuration and ±0.01 dB for high-power configuration. Optical isolators inside the module remove any interference effects from external sources of reflections.
VIAVI offers a wide range of SLED sources as part of the general purpose light source (mSRC) module in the MAP portfolio. The SLEDs are offered at nominal wavelengths of 1310nm, 1490nm, 1550nm and 1625nm, with both high power and standard power variants.
Key Features:
Applications:
Compliance:
Specifications | |
Super-Luminescent Light Emitting Diode (SLED) laser Source Module | |
General | |
Parameter | Specification |
Operating Temperature | 10 to 40 °C (50 to 104 °F) |
Storage Temperature | -30 to 60 °C (-22 to 140 °F) |
Operating Humidity | Maximum 85% Relative Humidity, non-condensing from 10 to 40 °C/50 to 104 °F |
Dimensions (W x H x D) | 4.06 x 13.26 x 37.03 cm (1.6 x 5.22 x 14.58 in) |
Weight | 1.3 kg (2.86 lb) |
Warranty | 3 years |
Specifications | ||
Super-Luminescent Light Emitting Diode (SLED) laser Source Module | ||
Ordering Information | ||
Part Number | SLED Single Mode Source | Description |
MSRC-C23000SL-M100-MFA | Standard SLED Individual Output | 1310nm standard power SLED source SMF with FC/APC Connectors |
MSRC-C25000SL-M100-MFA | Standard SLED Individual Output | 1550nm standard power SLED source SMF with FC/APC Connectors |
MSRC-C23500SL-M100-MFA | Standard SLED Individual Output | 1310/1550nm standard power SLED source SMF with FC/APC Connectors |
MSRC-C23456SL-M100-MFA | Standard SLED Individual Output | 1310/1490/1550/1625nm standard power SLED source SMF with FC/APC Connectors |
MSRC-C23500SLX-M100-MFA | Standard SLED Single Output (Mux’d) | 1310/1550nm SLED source SMF Single output with FC/APC Connectors |
MSRC-C23456SLX-M100-MFA | Standard SLED Single Output (Mux’d) | 1310/1490/1550/1625nm SLED source SMF Single output with FC/APC Connectors |
MSRC-C23000HS-M100-MFA | High Power 1310 SLED Individual Output | Single 1310 nm high power SLED source with FC/APC Connectors |
MSRC-C23300HS-M100-MFA | High Power 1310 SLED Individual Output | Dual 1310 nm high power SLED source with FC/APC Connectors |
