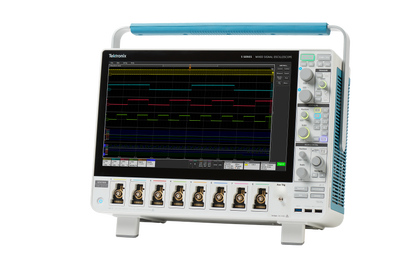

Tektronix MSO58B

Mixed Signal Oscilloscope; 8 Channel

Model

MSO58B

Product Family

Oscilloscopes & Logic Analyzers

Manufacturer

Tektronix

Configured models contain the following attributes:

Oscilloscopes & Logic AnalyzersOscilloscopes 1 - 3GHz5 Series B MSO

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

The 5 Series B MSO offers better visibility into complex systems by offering four, six and eight channel models with a large 15.6-inch high-definition (1,920 x 1,080) display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analog signals to verify and characterize device performance, and to debug challenging system issues.

Most engineers can recall situations in which they were debugging a particularly difficult problem and wanted greater system visibility and context, but the scope they were using was limited to two or four analog channels. Using a second scope involves significant effort to align trigger points, difficulty in determining timing relationships across the two displays, and documentation challenges.

And while you might assume that a six and eight channel scope would cost 50% or 100% more than a four-channel scope, you'll be pleasantly surprised to find that six channel models are only ~25% more than four channel models and eight channel models are only ~67% more than four channel models. The additional analog channels can pay for themselves quickly by enabling you to keep current and future projects on schedule.

Key Features

Auxiliary trigger input on front-panel frees up standard input channel

2x faster waveforms from the built-in function generator for frequency response testing and general-purpose use

Brighter display

History mode uses extended memory, allowing capturing thousands of events

Tools for automation and remote operation

Solid State Drive storage for user data supporting additional security

More analysis and serial protocol support

Auxiliary trigger input on front-panel frees up standard input channel

Benefits
Performance	Bandwidth up to 2 GHz Record Length up to 500 Mpoints
Digital Inputs	TLP058 Logic Probes each provide 8 digital channels
Operating System	Add Windows OS to run PC software on the scope
Signal Generation	Add Windows OS to run PC software on the scope
Advanced Analysis	Serial Decode/Trigger support for key buses like I2C, SPI, USB 2.0, Ethernet, CAN, LIN, many others Automated compliance testing for Ethernet, USB 2.0, and Automotive Ethernet Advanced Jitter Analysis Automated Power Measurement and Analysis Power Rail Measurements Inverters, Motors and Drives Analysis

Specifications
5 Series MSO Mixed Signal Oscilloscope
Series Overview
Model	MSO58B	MSO56B	MSO54B
FlexChannel Inputs	8	6	4
Maximum Analog Channels	8	6	4
Maximum Digital Channels (with optional logic probes)	64	48	32
Bandwidth (calculated rise time)	350 MHz (1.15 ns) 500 MHz (800 ps) 1 GHz (400 ps) 2 GHz (225 ps)	350 MHz (1.15 ns) 500 MHz (800 ps) 1 GHz (400 ps) 2 GHz (225 ps)	350 MHz (1.15 ns) 500 MHz (800 ps) 1 GHz (400 ps) 2 GHz (225 ps)
DC Gain Accuracy	< 2 GHz models: 50 Ω: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 2 GHz models: 50 Ω: ±1.2%, (±2.0% at ≤ 1 mV/div) ±0.6% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings)	< 2 GHz models: 50 Ω: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 2 GHz models: 50 Ω: ±1.2%, (±2.0% at ≤ 1 mV/div) ±0.6% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings)	< 2 GHz models: 50 Ω: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 2 GHz models: 50 Ω: ±1.2%, (±2.0% at ≤ 1 mV/div) ±0.6% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings)
ADC Resolution	12 bits	12 bits	12 bits
Vertical Resolution	8 bits @ 6.25 GS/s 12 bits @ 3.125 GS/s 13 bits @ 1.25 GS/s (High Res) 14 bits @ 625 MS/s (High Res) 15 bits @ 312.5 MS/s (High Res) 16 bits @ ≤125 MS/s (High Res)	8 bits @ 6.25 GS/s 12 bits @ 3.125 GS/s 13 bits @ 1.25 GS/s (High Res) 14 bits @ 625 MS/s (High Res) 15 bits @ 312.5 MS/s (High Res) 16 bits @ ≤125 MS/s (High Res)	8 bits @ 6.25 GS/s 12 bits @ 3.125 GS/s 13 bits @ 1.25 GS/s (High Res) 14 bits @ 625 MS/s (High Res) 15 bits @ 312.5 MS/s (High Res) 16 bits @ ≤125 MS/s (High Res)
Sample Rate	6.25 GS/s on all analog / digital channels (160 ps resolution)	6.25 GS/s on all analog / digital channels (160 ps resolution)	6.25 GS/s on all analog / digital channels (160 ps resolution)
Record Length (std.)	62.5 Mpoints on all analog / digital channels	62.5 Mpoints on all analog / digital channels	62.5 Mpoints on all analog / digital channels
Record Length (opt.)	125, 250, or 500 Mpoints on all analog / digital channels	125, 250, or 500 Mpoints on all analog / digital channels	125, 250, or 500 Mpoints on all analog / digital channels
Waveform Capture Rate	>500,000 wfms/s	>500,000 wfms/s	>500,000 wfms/s
Arbitrary/Function Generator (opt.)	13 predefined waveform types with up to 100 MHz output	13 predefined waveform types with up to 100 MHz output	13 predefined waveform types with up to 100 MHz output
DVM	4-digit DVM (free with product registration)	4-digit DVM (free with product registration)	4-digit DVM (free with product registration)
Trigger Frequency Counter	8-digit frequency counter (free with product registration)	8-digit frequency counter (free with product registration)	8-digit frequency counter (free with product registration)

Specifications
5 Series MSO Mixed Signal Oscilloscope
Model Overview
Model	Analog Bandwidth	Sample Rate	Record Length	Analog Channels	Digital Channels	Function Generator Output
MSO54B	350 MHz - 2 GHz	6.25 GS/s	62.5 M - 500 M	4	Up to 32 (optional)	1 (optional)
MSO56B	350 MHz - 2 GHz	6.25 GS/s	62.5 M - 500 M	6	Up to 48 (optional)	1 (optional)
MSO58B	350 MHz - 2 GHz	6.25 GS/s	62.5 M - 500 M	8	Up to 64 (optional)	1 (optional)

Specifications
5 Series MSO Mixed Signal Oscilloscope
Model Overview
Model	Description
MSO54B	4 FlexChannels
MSO56B	6 FlexChannels
MSO58B	8 FlexChannels
Included Accessories
	One passive analog probe per FlexChannel: 350 MHz or 500 MHz bandwidth models: TPP0500B 500 MHz probes 1 GHz or 2 GHz bandwidth models: TPP1000 1 GHz probes
	Installation and safety manual (translated in English, Japanese, Simplified Chinese )
	Embedded Help
	Front cover with integrated accessory pouch
	Mouse
	Power cord
	Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
Bandwidth Option
5-BW-350	350 MHz
5-BW-500	500 MHz
5-BW-1000	1 GHz
5-BW-2000	2 GHz
