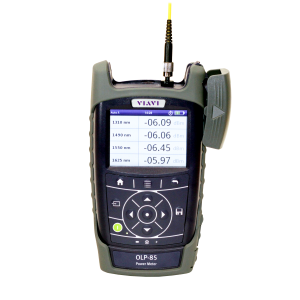

The SmartClass Fiber OLP-85 and -85P combine pass/fail fiber inspection and optical power measurement (OPM) into one solution. With a 100 dB dynamic range, the OLP-85 and -85P handheld optical power meters are professional, versatile, and compact instruments perfect for any fiber-optic network power or loss test applications. Their high accuracy over the entire range means that the OLP-85 and -85P perfectly fit applications where low power or very high power needs to be measured.
Key Features |
Complete jobs faster, correctly, and on time—the first time with uniquely integrated fiber inspection and test with auto pass/fail analysis |
Battery-operated field-portable optical power meters with an 800 to 1700 nm measurement wavelength range and high accuracy over an ultra-wide 100 dB dynamic range |
3.5-in color touch screen with integrated stylus |
Automated pass/fail fiber inspection analysis with the optional P5000i microscope, also available with integrated PCM |
Individual threshold settings for power and loss pass/fail analysis |
Onboard fiber inspection and test results storage with time stamp |
Data transfer and remote control via USB, Ethernet or optional WiFi connection |
Auto-lambda and multi-lambda test functions communicate with VIAVI light sources |
In-service loss test option |
Rugged, weather-proof design |
SmartPowerOn functionality for instantaneous power on |
Specifications |
|
OLP-85 and -85P |
|
Features | Parameters |
Detector Type | Filtered InGaAs |
Measurement Range | –75 to +26 dBm |
Max. Permitted Input Level | +30 dBm |
Intrinsic Uncertainty (1) | ±0.15 dB (±3.5%) |
Automatic Offset Nulling | Yes |
Overall Measurement Uncertainty (2)(3)
850 nm, 980 nm:
1310 nm, 1490 nm:
1550 nm:
1625 nm:
|
±0.35 dB ±25 nW
±0.25 dB ±5 nW
±0.25 dB ±5 nW
±0.35 dB ±5 nW
|
Wavelength Range/Settings | 800 to 1700 nm in 1 nm step |
Calibrated Vavelengths | 850, 980, 1310, 1490, 1550, 1625 nm |
Display Resolution | 0.01 dB/0.001 µW |
Measurement Units | dB, dBm, W |
Power Meter Functions | Abs, rel, pass/fail |
Auto Functions (4) | Auto-λ / Multi-λ function |
Tone Detection | 270 Hz, 1 kHz, 2 kHz |
Data Storage | Up to 10,000 test results with time stamp, inspection jpg |
Battery Life | >13 hr (LiION)/>11 hr (alkaline) |
Warm-Up Time | None, instant On |
Notes:
(1) Valid for calibrated wavelengths 1310 nm, 1490 nm, 1550 nm at reference conditions, at -24 dBm (CW), 23°C ±3K, 9µm test fiber with SC/PC ceramic connector. Intrinsic uncertainty for calibrated wavelengths 850nm (at -20dBm), 980 nm (at -22dBm) and 1625 nm (at -24dBm) is ±0.25 dB (±6%).
(2) -75 dBm to +26 dBm, -5°C to +45°C
(3) Overall measurement uncertainty for 800 to 1700 nm: 800 nm to 1300 nm: ±0.7 dB ±25 nW 1300 nm to 1550 nm: ±0.4 dB ±5 nW > 1550 nm: ±0.7 dB ± 5 nW
(4) With VIAVI optical light sources, 800 nm to 1625 nm and level > -50 dBm
Specifications |
|
OLP-85 and -85P |
|
General |
|
Features | Parameters |
Display | 3.5-in color LCD touch screen, 4:3 ratio |
Data Readout | Via USB interface |
Remote Control | Via USB or Ethernet |
Wireless Connectivity | Via USB WiFi adapter (optional) |
Inspection Functions | Auto pass/fail, store end-face image |
Optical Interfaces | Free space, interchangeable adapters (2014/00.xx type, PC and APC) |
Electrical Interfaces | USB 2.0 (2 x host, 1 x device) |
Power Source | AC adaptor, 8x AA alkaline, or rechargeable LiION battery pack (option) |
Power Mode | Auto-Off, SmartPowerOn mode |
Temperature Range
Operating
Storage
|
–10 to +55°C (14 to 122°F)
–20 to +70°C (–4 to 158°F)
|
Specifications |
|
|
Model | Dimensions (H x W x D) | Weight |
OLP-85 | 208 x 112 x 64 mm (8.2 x 4.4 x 2.5 in) | 750 g (1.6 lb) |
OLP-85P | 208 x 153 x 64 mm (8.2 x 6.0 x 2.5 in) | 850 g (1.85 lb) |
Specifications |
|
OLP-85 and -85P Optical Power Meters |
|
Ordering Information |
|
Part Number | Description |
2307/03 | OLP-85 optical power meter |
2308/03 | OLP-85P optical power meter with integrated patch cord microscope (PCM) |
Specifications |
|
OLP-85 and -85P Optical Power Meters |
|
Options and Accessories |
|
Part Number | Description |
FBP-SD101 | P5000i digital analysis microscope with 4 tips |
2305/90.02 | RBP2 rechargeable battery pack for SmartClass Fiber; LiON battery 3.7 V, 20 W |
2305/90.01 | PS4 power supply for SmartClass Fiber, 12 V, 2 A |
2327/90.21 | SmartClass Fiber WiFi option including USB wifi-adapter |
2128/01 | UC4 hands-free carrier for SmartClass Fiber |
2128/02 | UC4P hands-free carrier for SmartClass Fiber with PCM |
2128/03 | SC2 soft shoulder case, for SmartClass Fiber |
K 807 | USB cable USB-A to micro-USB |
Specifications |
|
OLP-85 and -85P Optical Power Meters |
|
Adapters |
|
Part Number | Description |
2014/00.09 | FC |
2014/00.17 | DIN |
2014/00.21 | ST |
2014/00.24 | SC |
2014/00.26 | E2000 |
2014/00.28 | UPP 1.25 mm |
2014/00.29 | LC |
2014/00.31 | UPP 2.5 mm |
