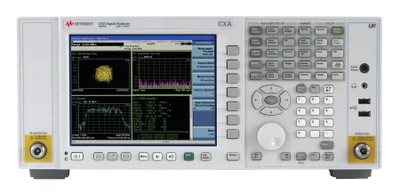

Keysight Technologies N9000A

Opción ID	Descripción
N9000A-503	Frequency Range, 9KHz to 3GHz
N9000A-507	Frequency Range, 9kHz to 7.5GHz
N9000A-526	Frequency range, 9 kHz to 26.5 GHz
N9000A-600	Benchtop Configuration
N9000A-B25	Analysis Bandwidth, 25 MHz
N9000A-EDP	Enhanced display package
N9000A-EMC	Basic EMC Functionality
N9000A-EP4	Enhanced phase noise performance, CXA
N9000A-ESC	External source control
N9000A-FSA	Fine Resolution Step Attenuator
N9000A-P03	Pre-Amplifier, 3GHz
N9000A-P07	Pre-Amplifier, 7.5GHz
N9000A-PFR	Precision frequency reference
N9000A-T03	Tracking generator, 9 kHz to 3 GHz
N9000A-T06	Tracking generator, 9 kHz to 6 GHz
N9094AK-PC5	Single core 64-bit performance processor, 4GB RAM, removable SSD for N9000A only
W9064A-1FP	Vector signal analysis (required) measurement application for CXA, fixed perpetual license
W9069A-1FP	Noise figure Measurement Application for CXA, Fixed Perpetua

Atributo	Valor
High Frequency (range)	1GHz <= 10GHz
High Frequency (range)	20GHz <= 50GHz
Low Frequency (range)	1kHz <= 100kHz
Low Frequency (range)	1MHz <= 10MHz
Form Factor	Benchtop

Vista general del producto

A great low-cost signal analyzer surpasses the basics and covers what's essential. That's the strength of the CXA signal analyzer, the leading low-cost tool for essential signal characterization. Its capabilities provide a foundation for cost-effective testing and seamless integration with the other X-Series models. The CXA is also an excellent teaching tool for RF technology and signal analysis. Get must-have capability with X-Series expandability in the CXA - and master the essentials.

CXA signal analyzer is a versatile, low-cost tool for essential signal characterization. It helps you accelerate product testing and development on multiple levels; cost reduction, throughput, design enhancement and beyond.

Key Features

Master the essentials in signal characterization with the leading low-cost tool in signal analysis

Perform cost-effective stimulus response measurements with optional built-in tracking generator

Add crucial functionality with X-Series measurement applications for analog demodulation, noise figure, phase noise, vector signal analysis, EMI precompliance, and more

Enhance theory with practical skills that enable deeper insights: use with a training kit in your RF & microwave education lab

Specifications
CXA Signal Analyzer
Features	Parameters
Frequency	9 kHz to 26.5 GHz
Frequency Options	3, 7.5, 13.6, 26.5 GHz
Standard Attenuator Range	50 dB
Standard Attenuator Step	10 dB
Real-Time Bandwidth Options	n/a
DANL @1 GHz	-163 dBm
Maximum Analysis Bandwidth	25 MHz
Phase Noise @1 GHz (1 MHz offset)	-130 dBc/Hz
Phase Noise @1 GHz (10 kHz offset)	-110 dBc/Hz
Phase Noise @1 GHz (30 kHz offset)	-110 dBc/Hz
Spur Free Dynamic Range	n/a
TOI @1 GHz (3rd Order Intercept)	+17 dBm
Applications Available	Yes
Maximum Real-Time Bandwidth	n/a
Overall Amplitude Accuracy	±0.5 dB
Bandwidth Options	10 standard, 25 MHz
Performance Level	◆◆◇◇◇◇
Applications-Cellular	1xEV-DO cdma2000 cdmaOne GSM/EDGE/EDGE Evolution iDEN/WiDEN/MotoTalk TD-SCDMA with HSDPA/HSUPA/8PSK LTE/LTE-Advanced W-CDMA/HSPA/HSPA+
Applications-Digital Video	Digital Cable TV DTM B ISDB-T/Tmm DVB-T/H/T2/T2-Lite
Applications-General Purpose	89600 VSA Software Analog Demodulation EMI Precompliance Flexible Digital Modulation Analysis MATLAB Noise Figure Phase Noise Pulse SCPI Code Compatibility Stimulus Response
Applications-Wireless Connectivity	802.16 OFDMA WLAN (802.11a/b/g/p/j/n/ah) Bluetooth® (BR/EDR/LE 4.2)
Maximum Dynamic Range 3rd Order @1 GHz	111 dB
Minimum Duration for 100% Probability of Intercept	n/a
Detectable Signal Duration w/Signal to Mask >60 dB	n/a
Multi-Domain Bandwidth	n/a
Display Views	n/a
Triggering	RF Burst Line External Periodic Video
Applications with Frequency Mask Trigger	n/a
DANL @2 GHz, No Preamplifier	-147 dBc/Hz
DANL @10 GHz, No Preamplifier	-142 dBc/Hz

Specifications
CXA Signal Analyzer
Frequency Option Overview
Frequency Range	DC Coupled	AC Coupled
Option 503	NA	9 kHz to 3.0 GHz
Option 507	NA	9 kHz to 7.5 GHz
Option 513	9 kHz to 13.6 GHz	10 MHz to 13.6 GHz
Option 526	9 kHz to 26.5 GHz	10 MHz to 26.5 GHz
