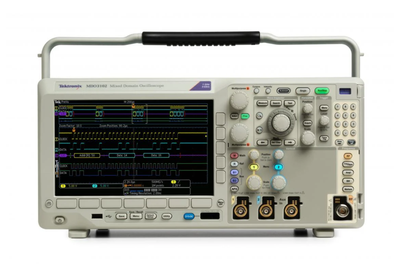

Tektronix MDO3054

Opción ID	Descripción
MDO3AUTO	Auto Ser trigger anlysis
MDO3BND	Application Bundle
MDO3COMP	Cmptr Ser trigger anlysis
MDO3EMBD	Embd Ser trigger anlysis
MDO3PWR	Pwr Meas anlysis
MDO3054 C3	Calibration service 3 years.Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 2 years calibration coverage.
MDO3054 C5	Calibration service 5 years.Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 4 years calibration coverage..
MDO3054 D1	Calibration Data Report
MDO3054 D3	Calibration Data Report 3 Years (with Option C3)
MDO3054 D5	Calibration Data Report 5 Years (with Option C5)
MDO3054 DB	Distribution demo unit option; MDO demo board w/USB cable
MDO3054 MDO3AFG	(1) Arbitrary function generator
MDO3054 MDO3MSO	(16) Digital channels
MDO3054 MDO3SA	Increase spectrum analyzer input frequency to 3GHz
MDO3054 MDO3SEC	Add password protected security to enable or disable all communication ports and firmware upgrades to any MDO3000 Series oscilloscope
MDO3054 R5	Standard Warranty Extended to 5 Years. Covers parts, labor and 2-day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free - a single call starts the process
MDO3054 T3	Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support.
MDO3054 T5	Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support.

Atributo	Valor
Channel/Port Count	4
Maximum Sample/Data Rate	2.5 GS/s
High Frequency (range)	100MHz <= 1GHz

Vista general del producto

The MDO3000 Mixed Domain Oscilloscope features up to six integrated instruments, including options like a spectrum analyzer, function generator and more, giving you the ability to capture analog, digital and RF signals with one scope. You can even add instruments, analysis functions and upgrade bandwidth as your design challenges evolve.

Key Features:

4 analog channel
500 MHz bandwidth models
Bandwidth is upgradable (up to 1 GHz)
Up to 5 GS/s sample rate
10 M record length on all channels
>280,000 wfm/s maximum waveform capture rate
Standard passive voltage probes with 3.9 pF capacitive loading and 1 GHz, 500 MHz, or 250 MHz analog bandwidth

Specifications
Model Overview
Model	MDO 3012	MDO 3014	MDO 3022	MDO 3024	MDO 3032	MDO 3034	MDO 3052	MDO 3054
Analog Channels	2	4	2	4	2	4	2	4
Analog Channel Bandwidth	100 MHz	100 MHz	200 MHz	200 MHz	350 MHz	350 MHz	500 MHz	500 MHz
Rise Time (typical, calculated (10 mV/div setting with 50 Ω input termination)	4 ns	4 ns	2 ns	2 ns	1.14 ns	1.14 ns	800 ps	800 ps
Sample Rate (1 ch)	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s
Sample Rate (2 ch)	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s
Sample Rate (4 ch)	-	2.5 GS/s	-	2.5 GS/s	-	2.5 GS/s	-	2.5 GS/s
Record Length (1 ch)	10 M	10 M	10 M	10 M	10 M	10 M	10 M	10 M
Record Length (2 ch)	10 M	10 M	10 M	10 M	10 M	10 M	10 M	10 M
Record Length (4 ch)	-	10 M	-	10 M	-	10 M	-	10 M
Digital Channels with MDO3 MSO Option	16	16	16	16	16	16	16	16
Arbitrary Function Generator Outputs with MDO3AFG Option	1	1	1	1	1	1	1	1
Spectrum Analyzer Channels	1	1	1	1	1	1	1	1
Standard Spectrum Analyzer Frequency Range	9 kHz - 100 MHz	9 kHz - 100 MHz	9 kHz - 200 MHz	9 kHz - 200 MHz	9 kHz - 350 MHz	9 kHz - 350 MHz	9 kHz - 500 MHz	9 kHz - 500 MHz
Optional Spectrum Analyzer Frequency Range with MDO3SA Option	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz

Today's integrated designs need an oscilloscope that is just as integrated - such as the MDO3000 Mixed Domain Oscilloscope (MDO) Series. It is the ultimate 6-in-1 integrated oscilloscope that includes an integrated spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. The MDO3000 is completely customizable and fully upgradeable. Add the instruments and performance you need now
