CXM Series -- this series is typically used for frequencies from DC to 40 GMHz. We use microwave relays, splitters, programmable attenuators and many other microwave components from the worlds most popular vendors to build standard or custom systems to your specifications.
There are a large variety of 1x2 through 1x12 microwave relays available in Normally Open, Failsafe, Latching, Terminated or special configurations to suit your needs. Or simply buy the driver chassis and use it to control your own components. Since Cytec doesn"t build microwave components we can put the systems together with whatever parts you prefer and stand behind the warranty for you.
| Key Features |
| RF systems with bandpass from DC to 18 GHz, 50 ohms impedance, low crosstalk & high isolation. |
| Some systems with extended bandpass as high as 40 GHz |
| Both Nx1 multiplexers and NxM matrices offered. SMA connectors standard, N, BNC, TNC also available |
| Computer control via IEEE488 & RS232 standard. Ethernet LAN, USB and front panel Manual Controls optional. |
| Front Panel LEDs for visual indication of closed switches and remote Status feedback aid in debugging |
| Passive design doesn't add to signal noise or create intermodulation products typical of solid state devices. |
| Specifications |
|
| CXM Chassis Overview |
|
| Model | Description |
CXM/16
(Mainframe or E Expansion Chassis)
| These Chassis furnish either 16 switch points in user defined configurations.
Built-in front panel LEDs show switch and power status.
Add CXM switches along with controls to complete the system.
Dimensions:
19" Rack Mount (483 mm)
15" deep (381 mm)
3.5" (2 RU) high (89 mm)
Weight:
15 lbs
6.8 kg max
AC Power:
10 W per closed switch, 115/230 VAC selectable.
|
CXM/32
(Mainframe or E Expansion Chassis)
| These Chassis furnish either 32 switch points in user defined configurations.
Built-in front panel LEDs show switch and power status.
Add CXM switches along with controls to complete the system.
Dimensions:
19" Rack Mount (483 mm)
15" deep (381 mm)
3.5" (2 RU) high (89 mm)
Weight:
15 lbs
6.8 kg max
AC Power:
10 W per closed switch, 115/230 VAC selectable.
|
CXM/64
(Mainframe or E Expansion Chassis)
| These Chassis control up to 64 switch points as defined by the user.
Front panel LEDs indicate both switch point and power status.
Add controls, the required CXM switches and one CL8-VHP Display module for every eight switch points to complete the system.
Up to 64 1x2 relays, 16 1x4 relays or 8 1x8 relays per chassis.
Up to eight, 8 bit programmable attenuators.
Combinations, specials and custom systems with no NRE.
Dimensions:
19" Rack Mount (483 mm)
15" deep (381 mm)
5.25" (3 RU) or 7" (4 RU) high if needed for relays.
Weight:
25 lbs
11 kg max
AC Power:
10 W per closed switch, 115/230 VAC selectable.
|
CXM/128
(Mainframe or E Expansion Chassis)
| These Chassis control up to sixteen 1x8 CXM switches arranged as shown on the drawing, or combinations of 1x2, 1x4 and 1x8 switches.
LEDs visible through the front panel show switch and power Status.
Add CXM switches, controls, and one CL8-VHP Display module for every eight switch points to complete the system.
Can control any combination of 1x2 through 1x8 relays and 8 bit programmable attenuators.
Combinations, specials and custom systems with no NRE.
Also available as relay driver chassis to drive your external relays.
Dimensions:
19" Rack Mount (483 mm)
15" deep (381 mm)
7" (4 RU) high (178 mm)
Weight:
30 lbs
14 kg max
AC Power:
10 W per closed switch, 115/230 VAC selectable.
|

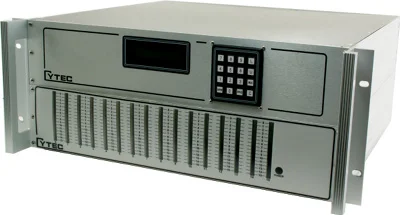

CXM/256
(Mainframe or E Expansion Chassis)
| This Chassis typically controls up to sixteen CXM/9x1 through 12x1 relays, although other configurations are possible when you need up to 256 drives in a single chassis.
LEDs visible through the front panel show switch and power Status.
Add CXM switches, controls and one CL16-VHP Display Module for every 16 switch points to complete the system.
Create custom systems or special configurations.
Chassis is available with D connectors on the rear panel to simply drive your own +28 volt external relays or components.
Dimensions:
19" Rack Mount (483 mm)
15" deep (381 mm)
7" (4 RU), 8.75" (5 RU) or 10.5" high
Weight:
45 lbs
16 kg max
AC Power:
10 W per closed switch, 115/230 VAC selectable.
|
