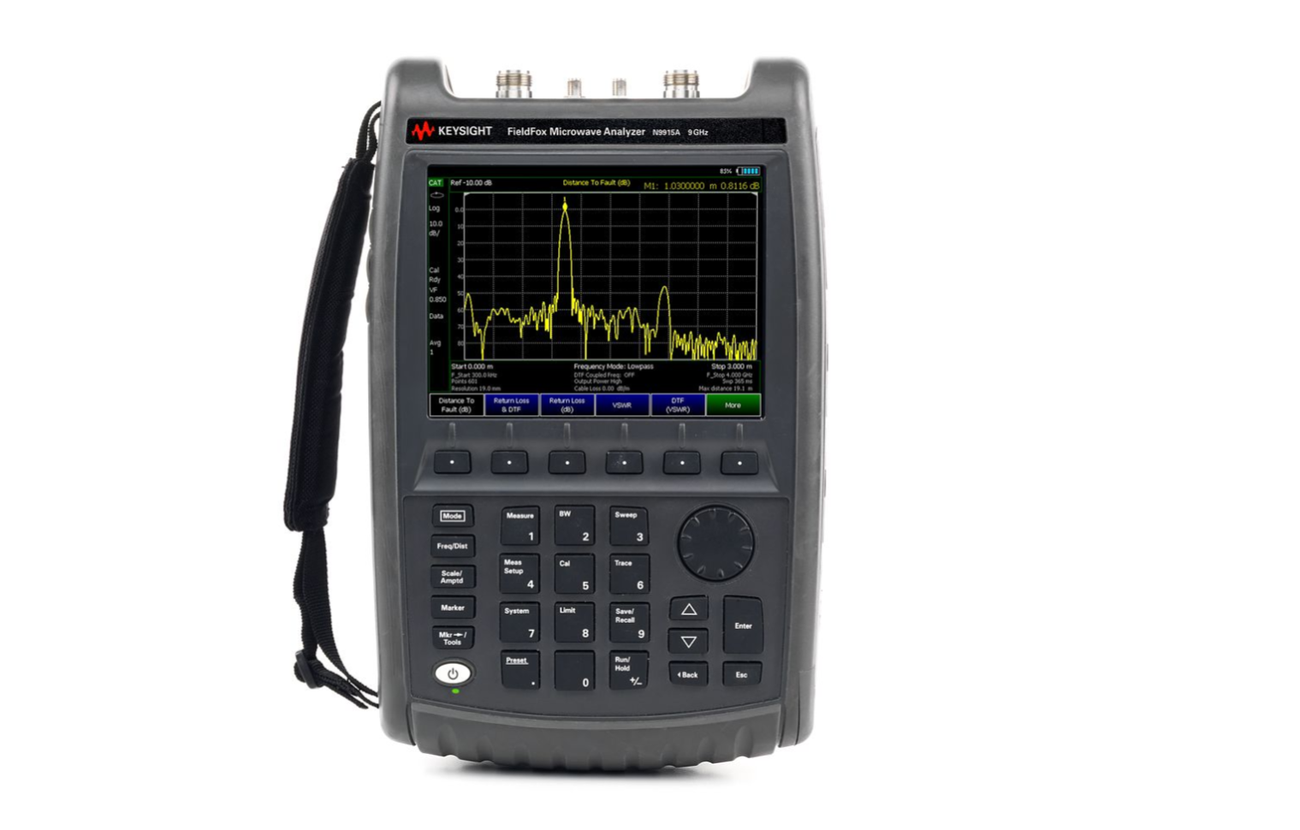

Keysight Technologies (formerly Agilent) N9915A | 30kHz-9GHz FieldFox handheld microwave combo analyzer | Electro Rent

Opción ID	Descripción
N1972A-710	AC / DC adapter for US / Canada
N1972A-711	AC / DC adapter for Europe / China
N1972A-712	AC / DC adapter for non US / Canada / Europe / China
N9915A-0B0	Do not include printed User`s Guide
N9915A-010	Vector network analyzer time domain
N9915A-030	Remote control capability
N9915A-112	QuickCal
N9915A-208	USB power sensor measurements versus frequency
N9915A-209	Extended Range Transmission Analysis (ERTA)
N9915A-210	Vector network analyzer transmission/reflection
N9915A-211	Vector network analyzer full 2-port S-parameters
N9915A-212	1-port mixed-mode S-parameters
N9915A-215	TDR Cable Measurements
N9915A-233	Spectrum analyzer
N9915A-235	Pre-amplifier
N9915A-236	Interference analyzer and spectrogram
N9915A-238	Spectrum analyzer time gating
N9915A-302	USB power sensor support
N9915A-307	GPS receiver
N9915A-308	Vector voltmeter
N9915A-309	DC bias variable-voltage source
N9915A-310	Built-in power meter
N9915A-312	Channel scanner
N9915A-330	Pulse measurements
N9915A-350	Real-time spectrum analyzer
N9915A-351	I/Q analyzer
N9915A-352	Indoor and outdoor mapping
N9915A-355	Analog demodulation
N9915A-356	Noise figure measurements
N9915A-358	EMF measurements
N9915A-370	Over the air LTE FDD measurements
N9915A-377	Over the air 5G measurements
N9915A-ABA	Printed User`s Guide in English
N9915A-DST	Demo for indirect channel partners, fixed 9-month license
R-50C-011-3	Calibration Assurance Plan - Return to Keysight - 3 years
R-50C-011-5	Calibration Assurance Plan - Return to Keysight - 5 years
R-50C-011-7	Calibration Assurance Plan - Return to Keysight - 7 years
R-50C-011-10	Calibration Assurance Plan - Return to Keysight - 10 years
R-50C-011-MU-3	Keysight Calibration + Uncertainties - 3 years
R-50C-011-MU-5	Keysight Calibration + Uncertainties - 5 years
R-50C-016-3	ISO 17025 Compliant Calibration - 3 years
R-50C-016-5	ISO 17025 Compliant Calibration - 5 years
R-51B-001-5Z	Warranty Assurance Plan - Return to Keysight - 5 years
R-51B-001-7Z	Warranty Assurance Plan - Return to Keysight - 7 years
R-51B-001-10Z	Warranty Assurance Plan - Return to Keysight - 10 years

Vista general del producto

A lightweight, durable, cable and antenna analyzer, spectrum analyzer, network analyzer, and more.

FieldFox is equipped to handle routine maintenance, in-depth troubleshooting and anything in between. FieldFox delivers Keysight-quality measurements – wherever you need to go. Add FieldFox to your kit, and carry precision with you.

The microwave combination analyzer's base function is a cable and antenna analyzer and it can be configured to include a spectrum and network analyzer. FieldFox can be ordered with additional capabilities: power meter, independent signal generator, vector voltmeter, interference analyzer, variable DC source, built-in GPS receiver, and remote control using an iPad or iPhone.

Key Features

9 GHz max frequency

Carry the world’s most integrated handheld analyzer: standard model includes cable and antenna analyzer

Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more

Save time by measuring DTF and TDR in the same sweep

Simultaneously measure all four S-parameters

Make accurate spectrum analyzer measurements (± 0.5 dB) without needing warm-up

Calibrate simply with QuickCal

Lightest all-in-one analyzer at only 6.6 lb. (3.0 kg)

Specifications
N9915A FieldFox Handheld Microwave Vector Network Analyzer
Maximum Frequency	9 GHz
Minimum Frequency	30 kHz
SA Start Frequency	5 kHz
System Dynamic Range	100 dB
Best Speed at 1001 Point, 1 Sweep	432 us/pt
Output Power	-1 dBm
Trace Noise	0.004 dB
Number of Built-In Ports	2 ports
Instrument Type	Combination Analyzer
Cable and Antenna Analyzer	Yes - Standard
Spectrum Analyzer	Yes - Optional
Vector Network Analyzer	Yes - Optional
Additional CAT/VNA Based Features	Vector Voltmeter Mixed-Mode S-Parameters DTF/TDR Cable Measurements
Additional SA Based Features	Built-In Power Meter Extended Range Transmission Analysis (ERTA) Real-Time Spectrum Analysis Noise Figure Measurements Over-The-Air Measurements
System Features	Built-In DC Source GPS Receiver - Internal Only Remote Control Capability
Power Measurement Using USB Sensor	CW or Swept-Frequency Frequency-Offset RF Pulse Test with Peak Sensor
Standard Attenuator Range	30 dB
Standard Attenuator Step	5 dB
DANL @1 GHz	-155 dBm
Maximum Analysis Bandwidth	10 MHz
Phase Noise @1 GHz (1 MHz offset)	-113 dBc/Hz
Phase Noise @1 GHz (10 kHz offset)	-111 dBc/Hz
Phase Noise @1 GHz (30 kHz offset)	-108 dBc/Hz
Spur Free Dynamic Range	> 105 dB
TOI @1 GHz (3rd Order Intercept)	+15 dBm
Applications Available	Yes
Maximum Real-Time Bandwidth	10 MHz
Bandwidth Options	10 MHz (standard)
Performance Level	◆◆◆◇◇◇
Applications-Cellular	89600 VSA Software Over-The-Air LTE FDD and 5GTF
Applications-Digital Video	89600 VSA Software
Applications-General Purpose	AM/FM Tune and Listen Cable and Antenna Analysis Field Strength Measurement SCPI Code Compatibility Spectrogram Stimulus Response
Applications-Wireless Connectivity	89600 VSA Software

Specifications
FieldFox Handheld Microwave Vector Network Analyzer
Model Overview
Model	Frequency Range
N9913A	30 kHz to 4 GHz
N9914A	30 kHz to 6.5 GHz
N9915A/N9925A	30 kHz to 9 GHz
N9916A/N9926A	30 kHz to 14 GHz
N9917A/N9927A	30 kHz to 18 GHz
N9918A/N9928A	30 kHz to 26.5 GHz
N995xA Frequency Overview
N9950A	300 kHz to 32 GHz
N9951A	300 kHz to 44 GHz
N9952A	300 kHz to 50 GHz

Specifications
FieldFox Handheld Analyzers Selection Guide
Model Overview
Maximum Frequency	Combination Models (CAT + VNA + SA)	Combination Models (CAT + VNA + SA)	VNA Models	VNA Models	SA Models
4 GHz	N9912A-104	N9913A	N9923A-104
6/6.5 GHz	N9912A-106 (2)	N9914A (3)	N9923A-106 (2)
9 GHz		N9915A		N9925A	N9935A
14 GHz		N9916A		N9926A	N9936A
18 GHz		N9917A		N9927A	N9937A
26.5 GHz		N9918A		N9928A	N9938A
32 GHz		N9950A			N9960A
44 GHz		N9951A			N9961A
50 GHz		N9952A			N9962A

Notes:

(1). Also referred to as cable and antenna analyzer

(2). Maximum frequency is 6 GHz.

(3). Maximum frequency is 6.5 GHz

Specifications
FieldFox RF and Microwave
Model Overview
Model	Description	CAT and VNA Frequency	SA Frequency *	Test Port Connectors
N9913A	4 GHz FieldFox RF analyzer	30 kHz to 4 GHz	100 kHz to 4 GHz	Type-N (f)
N9914A	6.5 GHz FieldFox RF analyzer	30 kHz to 6.5 GHz	100 kHz to 6.5 GHz	Type-N (f)
N9915A	9 GHz FieldFox microwave analyzer	30 kHz to 9 GHz	100 kHz to 9 GHz	Type-N (f)
N9916A	14 GHz FieldFox microwave analyzer	30 kHz to 14 GHz	100 kHz to 14 GHz	Type-N (f)
N9917A	18 GHz FieldFox microwave analyzer	30 kHz to 18 GHz	100 kHz to 18 GHz	Type-N (f)
N9918A	26.5 GHz FieldFox microwave analyzer	30 kHz to 26.5 GHz	100 kHz to 26.5 GHz	3.5 mm (m)
N9950A	32 GHz FieldFox microwave analyzer	300 kHz to 32 GHz	9 kHz to 32 GHz	NMD 2.4 mm (m)
N9951A	44 GHz FieldFox microwave analyzer	300 kHz to 44 GHz	9 kHz to 44 GHz	NMD 2.4 mm (m)
N9952A	50 GHz FieldFox microwave analyzer	300 kHz to 50 GHz	9 kHz to 50 GHz	NMD 2.4 mm (m)

Note:

* Useable to 5 kHz
