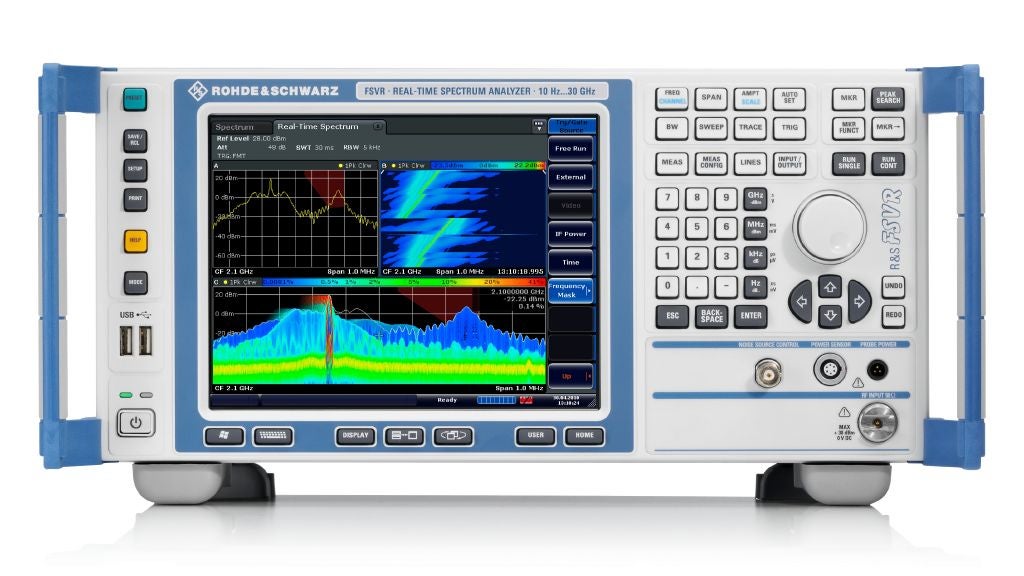

Rohde & Schwarz FSVR30 (1311.0006.30)

Real-Time Spectrum Analyzer; 10 Hz to 30 GHz

Modèle

FSVR30 (1311.0006.30)

Gamme de produits

RF & Microwave Spectrum Analyzers

Fabricant

Rohde & Schwarz

Cette configuration a les caractéristiques suivantes:

RF & Microwave Spectrum AnalyzersSpectrum Analyzers-Performance20GHz <= 50GHzDC <= 1kHz

Configurations

Caractéristiques principales

Description produit

Ressources

Choisissez votre configuration

Show:

Chercher en combinant des options par ex. « C4000; M400 »

Options disponibles pour Rohde & Schwarz FSVR30 (1311.0006.30)

Option	Description
FSV-B4 (1310.9522.02)	OCXO, Precision Reference Frequency
FSV-B5 (1310.9539.02)	Additional Interfaces (IF/video/AM/FM output, AUX port, trigger output, two additional USB ports)
FSV-B17 (1310.9568.02)	Digital Baseband Interface
FSV-B24 (1310.9616.30)	RF preamplifier 9kHz to 30GHz (for R&S® FSV30 only) Not installable post factory
FSV-K9 (1310.8203.02)	Power sensor measurement with NRP power sensors
FSV-K30 (1310.8355.02)	Noise figure and gain measurements (Preamplifier R&S®FSV-B22 or R&S®FSV-B24 required)

Affiché(s) 1 - 2 de 2 résultats

Real-Time Spectrum Analyzer, 10 Hz to 30 GHz

ID de produit: P-250331

FSV-B17 (1310.9568.02) • Digital Baseband InterfaceFSV-K9 (1310.8203.02) • Power sensor measurement with NRP power sensorsFSV-B24 (1310.9616.30) • RF preamplifier 9kHz to 30GHz (for R&S® FSV30 only) Not installable post factoryFSV-B4 (1310.9522.02) • OCXO, Precision Reference FrequencyFSV-B5 (1310.9539.02) • Additional Interfaces (IF/video/AM/FM output, AUX port, trigger output, two additional USB ports)

Location

Confirmé sur le devis

Devis

Quantité

Semaines

Date de début

Occasion

Disponibilité confirmée sur devis

Effectuer une demande

E-mail +33 (0) 1 45 12 65 65

Solutions Financières

Renseignez-vous maintenant pour en savoir plus

Real-Time Spectrum Analyzer, 10 Hz to 30 GHz

ID de produit: P-250330

FSV-K30 (1310.8355.02) • Noise figure and gain measurements (Preamplifier R&S®FSV-B22 or R&S®FSV-B24 required)FSV-B5 (1310.9539.02) • Additional Interfaces (IF/video/AM/FM output, AUX port, trigger output, two additional USB ports)FSV-B17 (1310.9568.02) • Digital Baseband InterfaceFSV-B24 (1310.9616.30) • RF preamplifier 9kHz to 30GHz (for R&S® FSV30 only) Not installable post factoryFSV-K9 (1310.8203.02) • Power sensor measurement with NRP power sensorsFSV-B4 (1310.9522.02) • OCXO, Precision Reference Frequency

Location

Confirmé sur le devis

Devis

Quantité

Semaines

Date de début

Occasion

Disponibilité confirmée sur devis

Effectuer une demande

E-mail +33 (0) 1 45 12 65 65

Solutions Financières

Renseignez-vous maintenant pour en savoir plus

Affiché(s) 1 - 2 de 2 résultats

* La disponibilité des produits et leurs prix sont sujets à des changements non-notifiés. Tous les prix peuvent varier en raison des coûts de transport, de la TVA, des taxes commerciales, des frais d'importation et du taux de change.Les produits ne sont pas nécessairement disponibles dans chaque pays. Chaque remise mentionnée est basée sur le prix liste complet de l'instrument neuf; les remises véritables peuvent varier en fonction des options, de la configuration, des taux de change et d'autres facteurs. La garantie peut varier selon la catégorie de produit ou selon le produit spécifié disponible. Toutes les conditions sont à confirmer par un devis rédigé complet.

Caractéristiques principales

Indique les critères de tri possibles. Voir le tableau de configuration.

Attribut	Valeur
High Frequency (range)	20GHz <= 50GHz
Low Frequency (range)	DC <= 1kHz

Description produit

The R&S®FSVR combines a full-featured signal and spectrum analyzer with a real-time spectrum analyzer. In real-time operation, the R&S®FSVR seamlessly measures and displays the spectrum in the time domain with a span of up to 40 MHz. As a result, it captures every event for analysis, no matter how brief it might be.

Besides its real-time capabilities, the R&S®FSVR offers all functions of the R&S®FSV signal and spectrum analyzer.

Key Features

Frequency range from 10 Hz to 7 GHz, 13.6 GHz, 30 GHz or 40 GHz

40 MHz real-time analysis bandwidth

Triggering on frequency masks

Benefits
Real-Time Spectrum Analysis up to 40 GHz	Spectrogram function for gapless spectrum display in the time domain. Frequency mask trigger (FMT) for triggering the measurement on individual, sporadic events in the spectrum. Persistence mode for visualizing how frequently signals occur. Power versus time for analyzing the length/time variance of signals. Real-time streaming of I/Q data for recording long RF sequences.
Full-Featured Signal and Spectrum Analyzer	Frequency sweep across the entire frequency range from 10 Hz to 40 GHz in just a few milliseconds Expansion of the maximum input frequency to 110 GHz using external mixers Outstanding level measurement accuracy up to 7 GHz Excellent dynamic range and low phase noise High measurement speed Power measurement functions and statistical evaluations for analyzing digitally modulated signals Versatile marker and trace evaluation functions Measurement software for determining noise figure or phase noise General vector signal analysis (VSA) and special analysis options for; GSM/EDGE, WCDMA/HSPA+, LTE, WiMAX™, WLAN as well as analog modulation methods. Large I/Q memory depth
Simple and Intuitive Touchscreen Operation	Touchscreen operation: using a finger as a mouse cursor Fast access to all important functions Built-in help function Undo/redo function
Low Total Cost of Ownership	Convenient on-site retrofitting of options Easy scalability to handle application-specific requirements Always up-to-date with firmware updates

Specifications
FSVR Real-Time Spectrum Analyzer
Series Overview
Model	Order Number	Frequency Range	Phase Noise	DANL @ 1 GHz	Max. Analysis Bandwidth	Description
FSVR7	1311.0006.07	10 Hz - 7 GHz	< –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)	< –160 dBm/Hz	40 MHz	Real-time spectrum analyzer
FSVR13	1311.0006.13	10 Hz - 13.6 GHz	< –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)	< –160 dBm/Hz	40 MHz	Real-time spectrum analyzer
FSVR30	1311.0006.30	10 Hz - 30 GHz	< –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)	< –160 dBm/Hz	40 MHz	Real-time spectrum analyzer
FSVR40	1311.0006.40	10 Hz - 40 GHz	< –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)	< –160 dBm/Hz	40 MHz	Real-time spectrum analyzer
