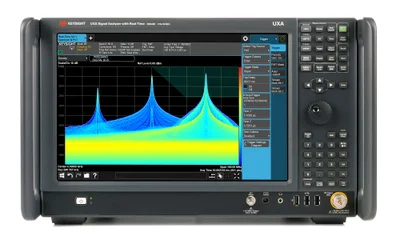

Keysight Technologies N9040B

UXA Signal Analyzer; Multi-Touch

Modèle

N9040B

Gamme de produits

RF & Microwave Spectrum Analyzers

Fabricant

Keysight Technologies

Cette configuration a les caractéristiques suivantes:

RF & Microwave Spectrum AnalyzersSpectrum Analyzers-Performance1GHz <= 10GHz20GHz <= 50GHzDC <= 1kHzBenchtop

Configurations

Caractéristiques principales

Description produit

Ressources

Choisissez votre configuration

Show:

Chercher en combinant des options par ex. « C4000; M400 »

Options disponibles pour Keysight Technologies N9040B

Option	Description
N90EMDUAB	Duplex IF RTSA
N90EMDUAB-R-Y5C-001-A	Node-locked perpetual license
N90EMDUAB-R-Y6C-001-L	KeysightCare software support subscription, node-locked - 12 months
N90EMESCB	External Source Control
N90EMESCB-R-Y5C-001-A	Node-locked license
N90EMESCB-R-Y6C-001-L	12-months, node-locked, software support subscription
N90EMRBEB	Resolution Bandwidth Extended
N90EMRBEB-R-Y5C-001-A	Node-locked license
N90EMRBEB-R-Y6C-001-L	12-months, node-locked, software support subscription
N6171A-M03	MATLAB-Advanced Package, individual license - node-locked
N9040B-2CP	Rack mount flange and handle kit 265.9mm H (6U) - two brackets, handles, rails, DARK COLORS
N9040B-508	Frequency range, 2 Hz to 8.4 GHz
N9040B-526	Frequency range, 2 Hz to 26.5 GHz
N9040B-544	Frequency Range, 2 Hz to 44 GHz
N9040B-550	Frequency Range, 2 Hz to 50 GHz
N9040B-728	Label for 550 Freq
N9040B-730	License for FT1
N9040B-731	License for FT2
N9040B-ALV	Auxiliary log video output
N9040B-B2X	Analysis bandwidth, 255 MHz
N9040B-B5X	Analysis bandwidth, 510 MHz
N9040B-B25	Analysis Bandwidth, 25 MHz
N9040B-B40	Analysis bandwidth, 40 MHz
N9040B-C24	2.4 mm connector, male
N9040B-C35	APC 3.5 mm connector
N9040B-CNF	Type-N connector
N9040B-CR3	Connector Rear, Wideband IF output
N9040B-CRP	Connector Rear, Programmable IF output
N9040B-DP2	Digital Processor, 2 GB Capture Memory
N9040B-DP4	Digital processor, 4 GB capture memory
N9040B-DUA	Duplex IF RTSA
N9040B-DVR	USB DVD-ROM/CD-R/RW drive
N9040B-EA3	Electronic attenuator, 3.6 GHz
N9040B-EDP	Enhanced Display Package
N9040B-EMC	Basic EMC Functionality
N9040B-EP0	Enhanced Performance DDS LO
N9040B-ESC	External source control
N9040B-EXM	External mixing
N9040B-FBP	Full Bypass Path
N9040B-FP2	Fast power, up to 40 MHz bandwidth
N9040B-FS1	Fast sweep capability
N9040B-FS2	Enhanced fast sweep speed
N9040B-FSA	Fine step attenuator
N9040B-FT1	Frequency mask trigger, basic detection license
N9040B-H1G	Analysis Bandwidth 1GHz
N9040B-LFE	Low frequency enabled
N9040B-LNP	Low Noise Path
N9040B-MLP	Minimum loss pad, 50 to 75 ohms
N9040B-MPB	Microwave Preselector Bypass
N9040B-MSE	Mouse, USB
N9040B-MTU	Multi-touch user interface
N9040B-NF2	Noise Floor Extension
N9040B-NUL	IM Nulling
N9040B-P08	Preamplifier, 8.4 GHz
N9040B-P13	Preamplifier, 13.6 GHz
N9040B-P26	Preamplifier, 26.5 GHz
N9040B-P44	Preamplifier, 44 GHz
N9040B-P50	Preamplifier, 50 GHz
N9040B-PC6	Quad core 64-bit high performance processor, 16GB RAM
N9040B-PFR	Precision frequency reference
N9040B-RBE	Resolution bandwidth extended
N9040B-RT1	Real-time analysis up to maximum available BW, basic detection
N9040B-RT2	Real-time analysis up to maximum available BW, optimum detection
N9040B-RTL	Real time link
N9040B-RTR	Real-time spectrum recorder and analyzer application example, license
N9040B-RTS	Real time data streaming
N9040B-SF1	Security features, exclude launching programs
N9040B-SF2	Security features, prohibit saving results
N9040B-SSD	Additional removable solid state drive
N9040B-YAV	Y-axis video output
N9040RT1B	Real-time analysis up to maximum available BW, Basic Detection
N9040RT1B-R-Y5C-001-A	Node-locked license
N9040RT2B	Real-time analysis up to maximum available BW, Optimum Detection
N9040RT2B-R-Y5C-001	Node-locked perpetual license
N9040RT2B-R-Y5C-001-A	Node-locked perpetual license
N9040RT2B-R-Y6C-001	KeysightCare software support subscription, node-locked - 12 months
N9040RT2B-R-Y6C-001-L	KeysightCare software support subscription, node-locked - 12 months
N9040SA2E	Signal Analyzer Core Software for N9040B
N9040SA2E-R-Y5F-001-A	Core Software node-locked perpetual license
N9040SA2E-R-Y6F-001-L	Core software updates and enhancements, node-locked - 1 year
N9054EM0E	VMA Vector Modulation Analysis Measurement Application
N9054EM0E-R-Y5C-001-A	Node-locked license
N9054EM0E-R-Y6C-001-L	12-months, node-locked, software support subscription
N9054EM1E	Vector Modulation Analysis Custom OFDM Application
N9054EM1E-R-Y5C-001-A	Node-locked license
N9054EM1E-R-Y6C-001-L	12-months, node-locked, software support subscription
N9067EM0E	Pulse Analysis Measurement Application
N9067EM0E-R-Y5C-001-A	Node-locked license
N9067EM0E-R-Y6C-001-L	12-months, node-locked, software support subscription
N9068C-2FP	Phase Noise Measurement application, fixed perpetual license
N9068EM0E	Phase Noise Measurement Application
N9068EM0E-R-Y5C-001-A	Node-locked license
N9069C-3FP	Noise figure measurement application, fixed perpetual license
W7X	Operating system, Windows Embedded Standard 7
W10	Operating system, Windows 10

Affiché(s) 1 - 6 de 49 résultats

UXA Signal Analyzer

ID de produit: P-655049

N9040B-EA3 • Electronic attenuator, 3.6 GHzN9040RT2B-R-Y5C-001 • Node-locked perpetual licenseN9040RT2B-R-Y6C-001 • KeysightCare software support subscription, node-locked - 12 monthsN9040B-P50 • Preamplifier, 50 GHzN9040B-B5X • Analysis bandwidth, 510 MHzN90EMDUAB • Duplex IF RTSAN90EMDUAB-R-Y5C-001-A • Node-locked perpetual licenseN90EMDUAB-R-Y6C-001-L • KeysightCare software support subscription, node-locked - 12 monthsN9040RT2B • Real-time analysis up to maximum available BW, Optimum DetectionN9040B-550 • Frequency Range, 2 Hz to 50 GHz

Location

Confirmé sur le devis

Devis

Quantité

Semaines

Date de début

Occasion

Disponibilité confirmée sur devis

Effectuer une demande

E-mail +33 (0) 1 45 12 65 65

Solutions Financières

Renseignez-vous maintenant pour en savoir plus

UXA Signal Analyzer; Frequency Range, 3 Hz to 50 GHz

ID de produit: P-604392

N9040B-550 • Frequency Range, 2 Hz to 50 GHzN9040B-RT2 • Real-time analysis up to maximum available BW, optimum detectionN9040B-P50 • Preamplifier, 50 GHzN9040B-H1G • Analysis Bandwidth 1GHz

Location

Confirmé sur le devis

Devis

Quantité

Semaines

Date de début

Occasion

Disponibilité confirmée sur devis

Effectuer une demande

E-mail +33 (0) 1 45 12 65 65

Solutions Financières

Renseignez-vous maintenant pour en savoir plus

UXA Signal Analyzer; Frequency Range, 3 Hz to 50 GHz; Analysis Bandwidth 1GHz; Preamplifier, 50 GHz

ID de produit: P-604416

N9040B-P50 • Preamplifier, 50 GHzN9040B-H1G • Analysis Bandwidth 1GHzN9040B-550 • Frequency Range, 2 Hz to 50 GHz

Location

Confirmé sur le devis

Devis

Quantité

Semaines

Date de début

Occasion

Disponibilité confirmée sur devis

Effectuer une demande

E-mail +33 (0) 1 45 12 65 65

Solutions Financières

Renseignez-vous maintenant pour en savoir plus

UXA Signal Analyzer; Frequency range, 3 Hz to 26.5 GHz

ID de produit: P-216298

N9067EM0E-R-Y5C-001-A • Node-locked licenseN90EMRBEB-R-Y5C-001-A • Node-locked licenseN9054EM0E-R-Y5C-001-A • Node-locked licenseN90EMRBEB-R-Y6C-001-L • 12-months, node-locked, software support subscriptionN9054EM0E-R-Y6C-001-L • 12-months, node-locked, software support subscriptionN9040B-P26 • Preamplifier, 26.5 GHzN9067EM0E-R-Y6C-001-L • 12-months, node-locked, software support subscriptionN9067EM0E • Pulse Analysis Measurement ApplicationN9054EM0E • VMA Vector Modulation Analysis Measurement ApplicationN9040B-526 • Frequency range, 2 Hz to 26.5 GHzN9040B-B5X • Analysis bandwidth, 510 MHzN90EMRBEB • Resolution Bandwidth Extended

Location

Confirmé sur le devis

Devis

Quantité

Semaines

Date de début

Occasion

Disponibilité confirmée sur devis

Effectuer une demande

E-mail +33 (0) 1 45 12 65 65

Solutions Financières

Renseignez-vous maintenant pour en savoir plus

UXA Signal Analyzer; Frequency Range, 2 Hz to 50 GHz

ID de produit: P-549070

N9040B-P50 • Preamplifier, 50 GHzN9040B-H1G • Analysis Bandwidth 1GHzN9040B-EA3 • Electronic attenuator, 3.6 GHzN9040B-550 • Frequency Range, 2 Hz to 50 GHzN9040B-ALV • Auxiliary log video outputN9040B-RT2 • Real-time analysis up to maximum available BW, optimum detection

Location

Confirmé sur le devis

Devis

Quantité

Semaines

Date de début

Occasion

Disponibilité confirmée sur devis

Effectuer une demande

E-mail +33 (0) 1 45 12 65 65

Solutions Financières

Renseignez-vous maintenant pour en savoir plus

UXA Signal Analyzer

ID de produit: P-651029

N9040B-ALV • Auxiliary log video outputN9040B-H1G • Analysis Bandwidth 1GHzN9040B-550 • Frequency Range, 2 Hz to 50 GHzN9040B-P50 • Preamplifier, 50 GHzN9040B-EA3 • Electronic attenuator, 3.6 GHz

Location

Confirmé sur le devis

Devis

Quantité

Semaines

Date de début

Occasion

Disponibilité confirmée sur devis

Effectuer une demande

E-mail +33 (0) 1 45 12 65 65

Solutions Financières

Renseignez-vous maintenant pour en savoir plus

Affiché(s) 1 - 6 de 49 résultats

* La disponibilité des produits et leurs prix sont sujets à des changements non-notifiés. Tous les prix peuvent varier en raison des coûts de transport, de la TVA, des taxes commerciales, des frais d'importation et du taux de change.Les produits ne sont pas nécessairement disponibles dans chaque pays. Chaque remise mentionnée est basée sur le prix liste complet de l'instrument neuf; les remises véritables peuvent varier en fonction des options, de la configuration, des taux de change et d'autres facteurs. La garantie peut varier selon la catégorie de produit ou selon le produit spécifié disponible. Toutes les conditions sont à confirmer par un devis rédigé complet.

Caractéristiques principales

Indique les critères de tri possibles. Voir le tableau de configuration.

Attribut	Valeur
High Frequency (range)	1GHz <= 10GHz
High Frequency (range)	20GHz <= 50GHz
Low Frequency (range)	DC <= 1kHz
Form Factor	Benchtop

Description produit

The UXA is the flagship of the X-Series signal analyzers and is built on proprietary technology. It provides frequency coverage up to 50 GHz and can be extended to 1.1 THz using the standard external mixing functionality.

The N9040B combines high-quality analysis bandwidth to 1 GHz, full-band real-time analysis and industry-leading phase noise performance. The UXA also uses a streamlined, touch-driven interface on the large 14.1 display that simplifies measurement setup through the familiar X-Series menu structure. With its wider, deeper views of elusive and wideband signals, the UXA enables you to take your designs further in aerospace, defense, commercial communications and more.

The N9040B UXA signal analyzer is a member of the X-Series spectrum analyzers, which is an evolutionary approach to signal analysis that spans instrumentation, measurements and software. It gives you the flexibility to satisfy your business and technical requirements across multiple products and programs now and in the future.

Key Features

3 Hz to 50 GHz extend frequency to 110 GHz with Keysight M1970E/V smart mixers and up to THz with other vendors' mixers

10 MHz (standard), 25, 40, 255, 510 MHz or 1 GHz analysis bandwidth

Full-band real-time spectrum analyzer capabilities with 100% probability of intercept for signal duration as short as 3.84 μs

Fast sweep capability (standard) fast power measurements (optional)

Specifications
UXA Signal Analyzer
Features	Parameters
Frequency	2 Hz to 8.4, 13.6, 26.5, 44, or 50 GHz
Standard Attenuator Range	70 dB
Standard Attenuator Step	2 dB
Real-Time Bandwidth Options	n/a
DANL @1 GHz	-174 dBm
Maximum Analysis Bandwidth	1 GHz
Phase Noise @1 GHz (1 MHz offset)	-146 dBc/Hz
Phase Noise @1 GHz (10 kHz offset)	-134 dBc/Hz
Phase Noise @1 GHz (30 kHz offset)	-136 dBc/Hz
Spur Free Dynamic Range	n/a
TOI @1 GHz (3rd Order Intercept)	n/a
Applications Available	Yes
Maximum Real-Time Bandwidth	510 MHz
Overall Amplitude Accuracy	n/a
Bandwidth Options	25 standard, 40, 255, 510 MHz, 1 GHz
Performance Level	◆◆◆◆◆◆
Applications-Cellular	GSM/EDGE LTE/LTE-Advanced W-CDMA/HSPA/HSPA+ NB-IoT
Applications-Digital Video	n/a
Applications-General Purpose	89600 VSA Software Analog Demodulation MATLAB Noise Figure Phase Noise Pulse Real-Time Spectrum Analysis EMI Vector Modulation Analysis
Applications-Wireless Connectivity	Short Range Communications (ZigBee, Z-Wave) Bluetooth® (BR/EDR/LE4.2/5.0) WLAN 802.11(a/b/g/j/p/n/ac/af/ah/ax)
Maximum Dynamic Range 3rd Order @1 GHz	n/a
Minimum Duration for 100% Probability of Intercept	3.51 µs
Detectable Signal Duration w/Signal to Mask >60 dB	3.33 ns
Display Views	Density Spectrogram Density Spectrogram PvT (Power vs. Time) Spectrum PvT (Power vs. Time) Spectrogram PvT (Power vs Time)
Triggering	FMT (Frequency Mask Trigger) TQT (Time Qualified Trigger) Level RF Burst Line External Periodic Free Run Video TV
Applications with Frequency Mask Trigger	89600 VSA Software Real-Time Spectrum Analyzer Pulse Measurement Application
DANL @2 GHz, No Preamplifier	n/a
DANL @10 GHz, No Preamplifier	n/a
Benchtop	Yes
Real-Time Data Streaming	Yes
Maximum Bandwidth when Measuring PVT	255 MHz

Performance

+/-0.19 dB absolute amplitude accuracy

>75 dBc spurious free dynamic range, full band

-136 dBc/Hz phase noise at 1 GHz carrier, 10 kHz offset

-172 dBm displayed average noise level (DANL) with preamplifier and Noise Floor Extension (NFE)

Measurement Applications & Software

N9068C phase noise measurement application

Advanced analysis of >75 signal formats 89600 VSA software runs inside the UXA

Low noise path, external mixing, microwave preselector bypass, wideband IF output and enhanced display package (all standard)

Keysight's PowerSuite one-button power measurements (standard)

Specifications
X-Series Signal Analyzers
Model Overview
Model	N9040B/41B UXA	N9030B PXA	N9020B/21B MXA	N9010B EXA	N9000B CXA
Maximum Frequency	110 GHz	50 GHz	50 GHz	44 GHz	26.5 GHz
Maximum Internal Analysis Bandwidth	1 GHz	510 MHz	N9020B: 160 MHz N9021B: 510 MHz	40 MHz	25 MHz
PowerSuite	Y	Y	Y	Y	Y
2 dB Step Attenuator	Y	Y	Y	Y*	Y*
Precision Frequency Reference	Y	Y	Y*	Y*	Y*
Noise Floor Extension	Y	Y	Y*	Y*
Fast Sweep	Y	Y	Y*	Y*
External Mixing	Y	Y*	Y*	Y*
Microwave Preselector Bypass	Y	Y*	Y*	Y*
Fast Power	Y*	Y*	Y*	Y*
Real-time Spectrum Analysis	Y*	Y*	Y*
Low Noise Path	Y	Y*
Full Bypass Path	Y*	Y*
BBIQ		Y*	Y* (N9020B only)
Tracking Generator					Y*

Notes:

N9021B: Please refer to configuration guide for the list of supported PathWave X-Applications.

Y = Standard Feature

Y* = Optional Capability

Specifications
N9040B UXA Signal Analyzer
Instrument Upgrade Overview
Upgrade Number	Description	Requirements (PXA must already include the following)	Additional Information
N9040BU-F06	Increase frequency from 8.4 to 13.6 GHz	508	--
N9040BU-F07	Increase frequency from 8.4 to 26.5 GHz	508	--
N9040BU-F08	Increase frequency from 8.4 to 44 GHz	508	--
N9040BU-F09	Increase frequency from 8.4 to 50 GHz	508	--
N9040BU-F10	Increase frequency from 13.6 to 26.5 GHz	513	--
N9040BU-F11	Increase frequency from 13.6 to 44 GHz	513	--
N9040BU-F12	Increase frequency from 13.6 to 50 GHz	513	--
N9040BU-F13	Increase frequency from 26.5 to 44 GHz	526	--
N9040BU-F14	Increase frequency from 26.5 to 50 GHz	526	--
N9040BU-F15	Increase frequency from 44 to 50 GHz	544	Includes 50 GHz preamp
N9040BU-F16	Increase frequency from 8.4 to 44 GHz	508, B5X	--
N9040BU-F17	Increase frequency from 8.4 to 50 GHz	508, B5X	--
N9040BU-F18	Increase frequency from 13.6 to 44 GHz	513, B5X	--
N9040BU-F19	Increase frequency from 13.6 to 50 GHz	513, B5X	--
N9040BU-F20	Increase frequency from 26.5 to 44 GHz	526, B5X	--
N9040BU-F21	Increase frequency from 26.5 to 50 GHz	526, B5X	--

Specifications
N9040B UXA X-Series Signal Analyzer
Model Overview
Model / Option	Description
N9040B-508	Frequency range, 2 Hz to 8.4 GHz
N9040B-513	Frequency range, 2 Hz to 13.6 GHz
N9040B-526	Frequency range, 2 Hz to 26.5 GHz
N9040B-544	Frequency range, 2 Hz to 44 GHz
N9040B-550	Frequency range, 2 Hz to 50 GHz
