Keysight Technologies M9391A

PXIe Vector Signal Analyzer

Modèle

M9391A

Gamme de produits

RF & Microwave Spectrum Analyzers

Fabricant

Keysight Technologies

Cette configuration a les caractéristiques suivantes:

RF & Microwave Spectrum AnalyzersSpectrum Analyzers-Performance1GHz <= 10GHz100kHz <= 1MHz

Configurations

Caractéristiques principales

Description produit

Ressources

Choisissez votre configuration

Show:

Chercher en combinant des options par ex. « C4000; M400 »

Options disponibles pour Keysight Technologies M9391A

Option	Description
DEMACC	Demo Accessories
M9391A-B10	Analysis bandwidth, 100 MHz
M9391A-B16	Analysis bandwidth, 160 MHz
M9391A-F06	Frequency range, 1 MHz to 6 GHz
M9391A-M01	Memory, 128 MSa
M9391A-M10	Memory, 1024 MSa
M9391A-UNZ	Fast switching
M9391ADEM-CFG001	VSA Demo Systems Integrated for Internal DEMO Use Only with options -701

Affiché(s) 1 - 1 de 1 résultats

PXIe Vector Signal Analyzer 1MHz to 6GHz; Analysis bandwidth, 160 MHz; Frequency range, 1 MHz to 6 G

ID de produit: P-219122

M9391A-B16 • Analysis bandwidth, 160 MHzM9391A-M10 • Memory, 1024 MSaM9391A-UNZ • Fast switchingM9391A-F06 • Frequency range, 1 MHz to 6 GHz

Location

Confirmé sur le devis

Devis

Quantité

Semaines

Date de début

Occasion

Disponibilité confirmée sur devis

Effectuer une demande

E-mail +33 (0) 1 45 12 65 65

Solutions Financières

Renseignez-vous maintenant pour en savoir plus

Affiché(s) 1 - 1 de 1 résultats

* La disponibilité des produits et leurs prix sont sujets à des changements non-notifiés. Tous les prix peuvent varier en raison des coûts de transport, de la TVA, des taxes commerciales, des frais d'importation et du taux de change.Les produits ne sont pas nécessairement disponibles dans chaque pays. Chaque remise mentionnée est basée sur le prix liste complet de l'instrument neuf; les remises véritables peuvent varier en fonction des options, de la configuration, des taux de change et d'autres facteurs. La garantie peut varier selon la catégorie de produit ou selon le produit spécifié disponible. Toutes les conditions sont à confirmer par un devis rédigé complet.

Caractéristiques principales

Indique les critères de tri possibles. Voir le tableau de configuration.

Attribut	Valeur
High Frequency (range)	1GHz <= 10GHz
Low Frequency (range)	100kHz <= 1MHz

Description produit

RF requirements keep growing while timelines keep shrinking. To help ease the technical and business pressures, the right test solution provides continuity in measurements and longevity in capability. In the evolution of modular RF test solutions, the Keysight PXI VSA is the next logical step in signal analysis. With raw hardware speed and X-Series measurement applications, it delivers proven results—faster. From fully modular hardware to software leverage to worldwide support, the PXI VSA is the low-risk way to manage change and be ready for tomorrow—today

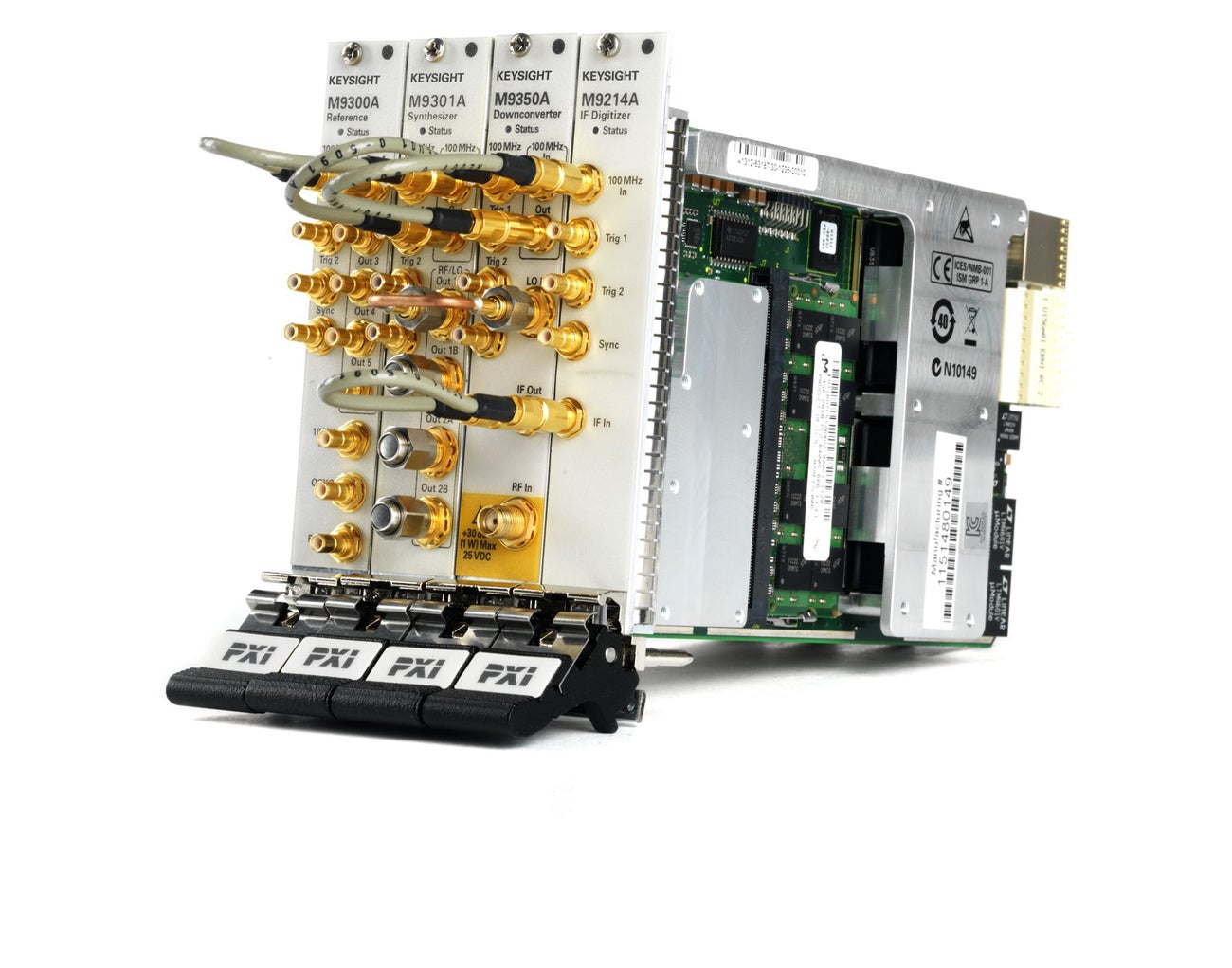

A typical M9391A configuration includes four individual PXIe modules – M9300A frequency reference, M9301A synthesizer, M9214A Digitizer and M9350A Downconverter. It can be combined with the M9381A Vector Signal Generator for a fast, compact RF component test solution.

Functionality:

1 MHz to 3 GHz or 6 GHz
40 MHz (standard), 100, or 160 MHz analysis bandwidth
Support for up to 8 time-synchronous, phase-coherent channels

Performance:

±0.45 dB absolute amplitude accuracy
-157 dBm displayed average noise level (DANL)
-70.7 dB W-CDMA ACLR dynamic range
-119 dBc/Hz Phase Noise @ 1 GHz, 10 kHz offset

Speed:

Reduce RF components test times by enabling power servos to converge faster with outstanding linearity, repeatability and absolute amplitude accuracy
High speed embedded hardware accelerated Power, Spectrum and IQ measurements
X-series measurements applications for modular instruments include resource manager software to quickly switch between hardware commands and standards-based measurements

Measurement Applications & Software:

Supports X-series measurement applications for modular instruments, covering cellular communication (GSM/EDGE/Evo, cdma2000/cdmaOne, W-CDMA/HSPA+, 1xEV-DO, TD-SCDMA/HSDPA, LTE FDD, LTE TDD) and wireless connectivity standards (WLAN 802.11a/b/g/n/ac)
Advanced analysis of more than 75 signal formats, with the 89600 VSA software
SystemVue to accelerate design workflow and MATLAB data analysis software for general purpose data analysis, visualization, and measurement automation.
Drivers and documentation for Microsoft® C/C++, C#, or Visual Basic, MATLAB, VEE, LabVIEW and LabWindows/CVI software platforms

Specifications
MXA Signal Analyzer
Accessories and Options
Model Number	Description
M9391A-012	LO Sharing for phase coherency
M9391A-300	PXIe Frequency Reference: 10 MHz and 100 MHz
M9391A-B04	Analysis bandwidth, 40 MHz
M9391A-B10	Analysis bandwidth, 100 MHz
M9391A-B16	Analysis bandwidth, 160MHz
M9391A-F03	Frequency range, 1MHz to 3GHz
M9391A-F06	Frequency range, 1MHz to 6GHz
M9391A-M01	Memory, 128 MSa
M9391A-M05	Memory, 512 MSa
M9391A-M10	Memory, 1024 MSa
M9391A-UK6	Commercial calibration certificate with test data
M9391A-UNZ	Fast switching
89601200C	Basic vector signal analysis and hardware connectivity
89601301C	Multi-vendor hardware connectivity
89601AYAC	Digital demodulation analysis
89601B7NC	3G modulation analysis
89601B7RC	Wireless connectivity modulation analysis
89601BHFC	Custom OFDM modulation analysis
89601BHGC	LTE/LTE-A FDD modulation analysis
89601BHHC	LTE/LTE-A TDD modulation analysis
89601BHMC	DOCSIS modulation analysis
89601BHNC	5G NR modulation analysis
89601BHPC	FMCW radar analysis
89601BHQC	Pulse analysis
89601BHTC	IoT modulation analysis
89601BHXC	High throughput WLAN modulation analysis
89601BU	Update and Subscription Service, transportable license
89601BU-012	12 months standalone software update and subscription service, for transportable license
E8900-D10	USB read-only licensing dongle - FLEX10
