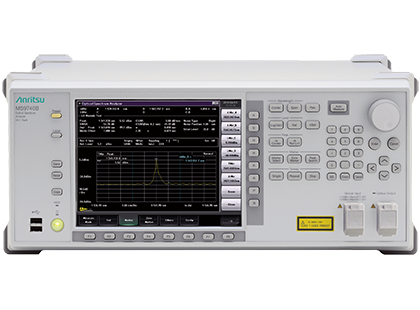

Anritsu MS9740B

Optical Spectrum Analyzer (OSA); 600 nm to 1750 nm

Modell

MS9740B

Produktfamilie

Network & Fiber Installations

Hersteller

Anritsu

Konfigurierte Modelle enthalten die folgenden Merkmale:

Network & Fiber InstallationsOptical Spectrum AnalyzersBenchtop

Konfigurationen

Wichtigste Daten

Produktübersicht

Ressourcen

Wählen Sie Ihre Konfiguration

Show:

Optionen suchen & kombinieren, z. B. 'C4000; M400'

Verfügbare Optionen für Anritsu MS9740B

Options-ID	Beschreibung
MS9740B-001	GPIB Interface
MS9740B-002	Light Source For Wavelength Calibration
MS9740B-009	Multimode fiber interface (50/62.5um)
MS9740B-037	FC Connector
MS9740B-040	SC Connector
MS9740B-108	OS Upgrade to Win10 Retrofit

Anzeigen 1 - 4 von 4 Ergebnissen

Optical Spectrum Analyser; GPIB Interface; Light Source For Wavelength Calibration; FC Connector

Produkt-ID: P-234774

MS9740B-002 • Light Source For Wavelength CalibrationMS9740B-037 • FC ConnectorMS9740B-001 • GPIB Interface

Mieten

Bestätigung bei Angebotserstellung

Angebot

Menge

Wochen

Startdatum

Gebraucht

Verfügbarkeit bei Angebotserstellung bestätigt

Anfrage

E-Mail +49 6151 360 41-0

Finanzlösungen

Fragen Sie jetzt um mehr Informationen zu erhalten

Optical Spectrum Analyser

Produkt-ID: P-615602

MS9740B-002 • Light Source For Wavelength CalibrationMS9740B-009 • Multimode fiber interface (50/62.5um)MS9740B-037 • FC ConnectorMS9740B-001 • GPIB Interface

Mieten

Bestätigung bei Angebotserstellung

Angebot

Menge

Wochen

Startdatum

Gebraucht

Verfügbarkeit bei Angebotserstellung bestätigt

Anfrage

E-Mail +49 6151 360 41-0

Finanzlösungen

Fragen Sie jetzt um mehr Informationen zu erhalten

Optical Spectrum Analyser

Produkt-ID: P-615603

MS9740B-002 • Light Source For Wavelength CalibrationMS9740B-001 • GPIB InterfaceMS9740B-009 • Multimode fiber interface (50/62.5um)MS9740B-040 • SC Connector

Mieten

Bestätigung bei Angebotserstellung

Angebot

Menge

Wochen

Startdatum

Gebraucht

Verfügbarkeit bei Angebotserstellung bestätigt

Anfrage

E-Mail +49 6151 360 41-0

Finanzlösungen

Fragen Sie jetzt um mehr Informationen zu erhalten

Optical Spectrum Analyser

Produkt-ID: P-645800

MS9740B-002 • Light Source For Wavelength CalibrationMS9740B-037 • FC ConnectorMS9740B-108 • OS Upgrade to Win10 RetrofitMS9740B-001 • GPIB Interface

Mieten

Bestätigung bei Angebotserstellung

Angebot

Menge

Wochen

Startdatum

Gebraucht

Verfügbarkeit bei Angebotserstellung bestätigt

Anfrage

E-Mail +49 6151 360 41-0

Finanzlösungen

Fragen Sie jetzt um mehr Informationen zu erhalten

Anzeigen 1 - 4 von 4 Ergebnissen

* Preise und Verfügbarkeit können ohne vorherige Ankündigung geändert werden. Alle Preise können aufgrund von Versandbedingungen, Mehrwertsteuer oder Umsatzsteuer, Einfuhrzöllen und Wechselkursen variieren. Produkte sind möglicherweise nicht an allen Standorten verfügbar. Alle aufgeführten Einsparungen basieren auf dem vollständigen Listenpreis neuer Instrumente. Die tatsächlichen Einsparungen können je nach Option (en), Konfiguration, Wechselkursen und anderen Faktoren variieren. Die Garantie kann je nach Kategorie oder verfügbarem Produkt variieren. Alle Bedingungen müssen durch ein vollständiges schriftliches Angebot bestätigt werden.

Merkmal	Wert
Form Factor	Benchtop

Produktübersicht

The benchtop Optical Spectrum Analyzer MS9740B features wide dynamic range, high resolution, and fast sweep speeds over a wavelength range of 600 nm to 1750 nm. It supports multimode fiber input and is ideal for manufacturing and evaluating 850-nm band VCSEL modules.

As well as keeping the same functions and performance as its predecessor, the MS9740B slashes measurement processing times by up to half*1 while overcoming problems of decreased measurement sensitivity caused by increased processing speed.

Moreover, it retains optical active device (LD-Module, DF-LD, FP-LD, LED, PMD, WDM, Opt Amp, and WDM Filter) measurement menu screens for evaluating devices. It supports all-at-once measurements of key evaluation items, such as optical center wavelength, level, OSNR, spectrum width, etc., and displays these results at one screen.

Key Features

Wide dynamic range and high-speed measurement at optical receiver bandwidths used commonly by customers within production lines for optical active devices;

SMSR measurement at 45 dB minimum

Maximum measurement processing time* of 0.35s (sweeping 30-nm wavelength)

Same key functions and performance as predecessor, supporting various production-line environments;

Wide wavelength band (600 nm to 1750 nm) for evaluating all optical active devices

Nine application menus for LD-module, WDM, etc., measurements

Note:

* Sweeping in Fast mode; total time required for wavelength sweep, analysis, and data transfer to remote server.

Specifications
Optical Spectrum Analyzer (OSA)
Model	MS9740B	MS9740B-009
Applicable Optical Fiber	SM fiber (ITU-T G.652), 50μm/125μm GI fiber	SM fiber (ITU-T G.652), 50μm/125μm GI fiber, 62.5μm/125μm GI fiber
Optical Connector	User replaceable: FC, SC, ST, DIN	User replaceable: FC, SC, ST, DIN
Wavelength Measurement Range	600 nm to 1750 nm	600 nm to 1750 nm
Wavelength Accuracy*1	±20 pm (1520 nm to 1620 nm, Resolution: 0.03 nm to 0.2 nm)2 ±100 pm (1520 nm to 1620 nm, Resolution: 0.5 nm, 1.0 nm)2 ±300 pm (600 nm to 1520 nm)3 ±200 pm (1520 nm to 1570 nm)3 ±300 pm (1570 nm to 1750 nm)*3	±50 pm (1530 nm to 1570 nm, Resolution: 0.07 nm to 0.2 nm)2 ±100 pm (1530 nm to 1570 nm, Resolution: 0.5 nm, 1.0 nm)2 ±300 pm (1570 nm to 1750 nm)*4
Setting Resolution	0.03, 0.05, 0.07, 0.1, 0.2, 0.5, 1.0 nm (0.03 nm, 0.05 nm only 1550 nm band and room temperature)	0.07, 0.1, 0.2, 0.5, 1.0 nm
Maximum Input Power	+23 dBm (Optical ATT: On)	+23 dBm (Optical ATT: On)
Dynamic Range*1	High dynamic range: 70 dB (±1 nm from peak wavelength), 60 dB (±0.4 nm from peak wavelength), 42 dB (±0.2 nm from peak wavelength) Normal dynamic range: 62 dB (±1 nm from peak wavelength), 58 dB (±0.4 nm from peak wavelength), 42 dB (±0.2 nm from peak wavelength) [Wavelength: 1550 nm, Resolution: 0.05 nm, Optical Att: Off, 20° to 30°C]	High dynamic range: 70 dB (±1 nm from peak wavelength, 20° to 30°C), 60 dB (±0.5 nm from peak wavelength, 20° to 30°C) 65 dB (±1 nm from peak wavelength, 5° to 45°C), 55 dB (±0.5 nm from peak wavelength, 5° to 45°C) Normal dynamic range: 62 dB (±1 nm from peak wavelength, 20° to 30°C), 58 dB (±0.5 nm from peak wavelength, 20° to 30°C) 57 dB (±1 nm from peak wavelength, 5° to 45°C), 53 dB (±0.5 nm from peak wavelength, 5° to 45°C) [Wavelength: 1550 nm, Resolution: 0.07 nm, using SM fiber, Optical Att: Off]
Sweep*1	Sweep time: ≤0.2 s (span: 5 nm, Resolution: 0.1 nm), ≤0.3 s (span: 500 nm) [VBW: 10 kHz, Normal dynamic range, center 1550 nm (span: 5 nm), 1200 nm (span: 500 nm), sweep start to stop, no optical input, sampling point: ≤501] Sweep time: 0.35 s / 30 nm (typ.) [VBW: 1 kHz- Fast, dynamic range, center 1550 nm, Resolution: 0.1 nm, sweep start to stop, optical input -10 dBm, sampling point: 1001] Sweep time: 1,65 s / 30 nm (typ.) [VBW: 200 Hz-Fast, dynamic range, center 1550 nm, Resolution: 0.1 nm, sweep start to stop, optical input -10 dBm, sampling point: 1001]	Sweep time: ≤0.2 s (span: 5 nm, Resolution: 0.1 nm), ≤0.3 s (span: 500 nm) [VBW: 10 kHz, Normal dynamic range, center 1550 nm (span: 5 nm), 1200 nm (span: 500 nm), sweep start to stop, no optical input, sampling point: ≤501] Sweep time: 0.35 s / 30 nm (typ.) [VBW: 1 kHz- Fast, dynamic range, center 1550 nm, Resolution: 0.1 nm, sweep start to stop, optical input -10 dBm, sampling point: 1001] Sweep time: 1,65 s / 30 nm (typ.) [VBW: 200 Hz-Fast, dynamic range, center 1550 nm, Resolution: 0.1 nm, sweep start to stop, optical input -10 dBm, sampling point: 1001]
Dimensions and Mass	426 (W) × 177 (H) × 350 (D) mm (excluding projections) ≤15.0 kg (without option)	426 (W) × 177 (H) × 350 (D) mm (excluding projections) ≤15.0 kg (without option)

Notes:

*1: Warm-up the instrument for at least 2 hours before measurement by performing repeated sweeping at span ≥ 100 nm, VBW ≥ 10 kHz. Perform waveform calibration after auto-optical alignment (WI Cal) and keep the instrument at the same temperature unless stated otherwise. Use either SM fiber (ITU-T G.652) or GI fiber (50μm/125μm) with a return loss of >40 dB, or GI fiber (62.5μm/125μm) with a return loss of >38 dB

*2: Built-in MS9740B-002, after Wl cal (ref) wavelength calibration execution, at stable room temperature

*3: After Wl cal (Ext) wavelength calibration execution by external light source, such as Single Longitudinal mode laser (DFB-LD), using SM fiber

*4: After Wl cal (Ext) wavelength calibration execution by external light source, such as DFB-LD, using SM fiber or GI fiber (50μm/125μm or 62.5μm/125μm)
