Rohde & Schwarz FPL1003 (1304.0004.03)

选项	说明
ACAFPL1003 (3597.9930.03)	R&S®Accredited Calibration for FPL1003 - Accredited calibration certificate - ISO 17025 accredited and ISO 9001 certified, traceability to national/ international standards - Measurement of complete product specifications with the same procedures as used in production, incl. measurement uncertainties/ guardbanding - Documentation of calibration results upon receipt
CC2FPL1003 (3597.9930S10)	Calibration Coverage 2 Years from delivery for FPL1003: - 1 scheduled R&S®Manufacturer- Calibration according to the 12 month recommended calibration interval - All necessary R&S®Manufacturer- Calibrations in case of repair or option upgrade
CC3FPL1003 (3597.9930S11)	Calibration Coverage 3 Years from delivery for FPL1003: - 2 scheduled R&S®Manufacturer- Calibrations according to the 12 month recommended calibration interval - All necessary R&S®Manufacturer- Calibrations in case of repair or option upgrade
CC4FPL1003 (3597.9930S12)	Calibration Coverage 4 Years from delivery for FPL1003: - 3 scheduled R&S®Manufacturer- Calibrations according to the 12 month recommended calibration interval - All necessary R&S®Manufacturer- Calibrations in case of repair or option upgrade
CC5FPL1003 (3597.9930S13)	Calibration Coverage 5 Years from delivery for FPL1003: - 4 scheduled R&S®Manufacturer- Calibrations according to the 12 month recommended calibration interval - All necessary R&S®Manufacturer- Calibrations in case of repair or option upgrade
CW1FPL1003 (3597.9930S06)	Extension of the 3 year standard product warranty to 4 years and Calibration Coverage for FPL1003 for 4 years: - 3 scheduled R&S®Manufacturer- Calibrations according to the 12 month recommended calibration interval - All repairs and all necessary R&S®Manufacturer-Calibrations after repair or option upgrade
CW2FPL1003 (3597.9930S07)	Extension of the 3 year standard product warranty to 5 years and Calibration Coverage for FPL1003 for 5 years: - 4 scheduled R&S®Manufacturer- Calibrations according to the 12 month recommended calibration interval - All repairs and all necessary R&S®Manufacturer-Calibrations after repair or option upgrade
DCV-1 (0240.2187.10)	Documentation of calibration values
DCV-2 (0240.2193.22)	Documentation of calibration values
DCV-ZP (1173.6506.02)	Printout of DCV (additional, in combination with DCV-Option only)
FPL1-B4 (1323.1902.02)	OCXO, precision frequency reference, aging/Year: < 1x10-7, Temp.-drift: < 1x10-7, retrofitable in R&S Service (hardware option)
FPL1-B5 (1323.1883.02)	Additional interfaces: User port, noise source control, power sensor, IF/video/demod out, AF output, plug-in unit (hardware option)
FPL1-B9 (1323.1925.03)	Internal Generator 5 kHz - 3 GHz (for R&S®FPL1003) (factory fitted option)
FPL1-B10 (1323.1890.02)	Additional interface for remote control by GPIB, plug-in unit (hardware option)
FPL1-B19 (1304.0427.02)	Second hard disk for R&S®FPL1000, premounted on PC-board, including analyzer Firmware, for exchange against standard hard drive (hardware option)
FPL1-B22 (1323.1719.02)	RF preamplifier, 2 MHz to 3 / 7.5 GHz, Gain 20 dB (software license)
FPL1-B25 (1323.1990.02)	1 dB steps for the electronic attenuator (software license)
FPL1-B30 (1323.1877.02)	DC Power supply for 12/24 V supply voltage, plug-in unit (hardware option)
FPL1-B31 (1323.1725.02)	Li-Ion battery pack for internal battery slot, includes charging unit, charges by 110/240 V AC or optional 12/24 V DC supply retrofittable in R&S Service (hardware option)
FPL1-B40 (1323.1931.02)	Extension to 40 MHz signal analysis bandwidth (software license) (For use in ZNL, ZNLx-B1 is required)
FPL1-K30 (1323.1760.02)	Noise Figure and Gain Measurement (software license). FPL1-B5 and ext. noise source are required. For use in FPL, internal pre-amplifier option FPL1-B22 is recommended, For use in ZNL, an ext. pre-amp is recommended and option ZNLx-B1 is required.
FPL1-K54 (1323.1783.02)	EMI measurement application for diagnostics of RF interference (software license)
FPL1-K70 (1323.1748.02)	Vector Signal Analysis Application for modulation analysis on digital modulated single carrier signals (software license)
FPL1-K70M (1323.1625.02)	Vector Signal Analysis Application for Modulation Analysis of Signals with Multiple Modulations (R&S®FPL1-K70 Required) (software license)
FPL1-K70P (1323.1631.02)	BER Measurement Application with PRBS Data (R&S®FPL1-K70 Required) (software license)
WE1FPL1003 (3597.9930S02)	Extension of the 3 year standard product warranty to 4 years for FPL1003: - All repairs and all necessary R&S®Manufacturer-Calibrations in case of repair
WE2FPL1003 (3597.9930S03)	Extension of the 3 year standard product warranty to 5 years for FPL1003: - All repairs and all necessary R&S®Manufacturer-Calibrations in case of repair

特性	参数
High Frequency (range)	1GHz <= 10GHz
Low Frequency (range)	1kHz <= 100kHz

产品总览

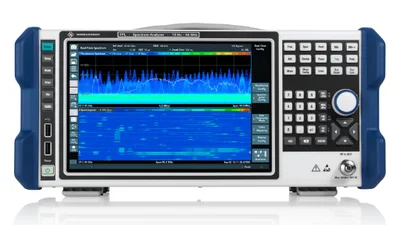

In an RF lab, the R&S FPL1000 is as indispensable as an oscilloscope or multimeter. It is a single measuring instrument for a variety of measurement tasks. It supports not only spectrum analysis, but also highly accurate power measurement with power sensors and analysis of analog and digitally modulated signals. The FPL1000 is the only instrument in its class that features an internal generator (FPL1-B9 option) and can analyze signals with a bandwidth of 40 MHz (FPL1-B40 option).

The solid RF performance makes the FPL1000 the ideal instrument for use in the lab, production and service. The 1 dB attenuator step size (FPL1-B25 option) allows you to perform measurements at the instrument’s maximum dynamic range. The preamplifier (FPL1-B22 option) extends the sensitivity level. Thanks to its high sensitivity and low phase noise performance, even small interfering signals next to the carrier can be analyzed.

Key Features

Frequency range 5 kHz to 7.5 GHz

SSB phase noise: typ. –108 dBc (1 Hz) at 10 kHz (1 GHz carrier) offset

DANL with preamplifier: typ. –166 dBm from 10 MHz to 2 GHz

Lightweight with small footprint

40 MHz analysis bandwidth (option)

Internal signal generator

Specifications
FPL1000 Series Spectrum Analyzer
Series Overview
Model	Order Number	Frequency Range	Phase Noise	DANL @ 1GHz	Max. Analysis Bandwidth	Instrument Type
FPL1003	1304.0004.03	5 kHz - 3 GHz	< –105 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)	< –163 dBm/Hz	40 MHz (FPL1-B40)	Signal and Spectrum Analyzer
FPL1007	1304.0004.07	5 kHz - 7.5 GHz	< –105 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)	< –163 dBm/Hz	40 MHz (FPL1-B40)	Signal and Spectrum Analyzer

Specifications
FPL1000 Series Spectrum Analyzer
Series Overview
Model	Order Number	Description
FPL1003	1304.0004.03	Signal and Spectrum Analyzer Included Accessories: Power Cable Quick Start Guide
FPL1007	1304.0004.07	Signal and Spectrum Analyzer Included Accessories: Power Cable Quick Start Guide

Specifications
FPL1000 Series Spectrum Analyzer
Model Overview
Model	Order Number	Description	Retrofittable	Comments
Options
FPL1-B4	1323.1902.02	OCXO reference frequency	Yes	Retrofit in service center
FPL1-B5	1323.1883.02	Additional interfaces	Yes	User-retrofittable IF/video/demod out User port Noise source control Power sensor AF output Loudspeaker
FPL1-B9	1323.1925.03	Internal generator	No	for R&S®FPL1003
FPL1-B9	1323.1925.07	Internal generator	No	for R&S®FPL1007
FPL1-B10	1323.1890.02	GPIB interface	Yes	User-retrofittable
FPL1-B19	1304.0427.02	Second hard disk (SSD)	Yes	User-retrofittable Mounted on PC board Including analyzer firmware
FPL1-B22	1323.1719.02	RF preamplifier (3 GHz/7.5 GHz)	Yes	User-retrofittable
FPL1-B25	1323.1990.02	1 dB steps for electronic attenuator	Yes	User-retrofittable
FPL1-B30	1323.1877.02	DC power supply 12 V/24 V	Yes	User-retrofittable
FPL1-B31	1323.1725.02	Internal lithium-ion battery	Yes	Retrofit in service center; including 2 battery packs and internal charging unit
FPL1-B40	1323.1931.02	40 MHz analysis bandwidth	Yes	User-retrofittable

Specifications
FPL1000 Series Spectrum Analyzer
Model Overview
Model	Order Number	Description	Comments
Firmware
FPL1-K7	1323.1731.02	AM/FM/PM measurement demodulator	--
FPL1-K9	1323.1754.02	Power sensor measurement with R&S®NRPxx power sensors	supports R&S®NRPxx power sensors
FPL1-K30	1323.1760.02	Noise figure and gain measurements	requires R&S®FPL1-B5
FPL1-K40	1323.1831.02	Phase noise measurement application	--
FPL1-K54	1323.1783.02	EMI measurement application	--
FPL1-K70	1323.1748.02	Vector signal analysis	--
FPL1-K70M	1323.1625.02	Multi-modulation analysis	requires R&S®FPL1-K70
FPL1-K70P	1323.1631.02	BER measurements with PRBS data	requires R&S®FPL1-K70
Software
FSPC	1310.0002.03	License dongle	--
VSE	1320.7500.06	Vector signal explorer base software	--
VSE-K70	1320.7522.06	Vector signal analysis	--
VSE-K106	1320.7900.06	EUTRA/LTE NB-IoT	--
Recommended Extras
FPL1-Z1	1323.1960.02	Protective hard cover	--
FPL1-Z2	1323.1977.02	Soft carrying bag for transport and outdoor operation	--
FPL1-Z3	1323.1683.02	H-style shoulder harness (requires R&S®FPL1-Z2 option)	--
FPL1-Z4	1323.1677.02	Spare lithium-ion battery pack	--
FPL1-Z5	1323.1690.02	Anti-glare display film for outdoor operation	--
FSV-B34	1321.3950.02	Lithium-ion battery charger for charging spare batteries	--
FPL1-Z6	1323.1954.02	19" rackmount kit	--

Specifications
FPC Spectrum Analyzer
Model Overview
Model	Order Number	Description	Frequency Range	Option Packages
Special Offer Packages
FPC-COM2	1328.6660P99	Spectrum Analyzer	5 kHz to 3 GHz	FPC1500: Frequency Upgrade: B22: Preamplifier; K7: Modulation analysis; K42: Vector Network Analysis; K43: Receiver mode; K55: Advanced measurements
FPC-IOT1	1328.6660P62		5 kHz to 1 GHz	R&S®FPC1000: Preamplifier, EMI receiver mode, Cable for R&S®HM6050
FPL-IOT3	1304.0004P64		5 kHz to 3 GHz	R&S®FPL1003: Additional interfaces, Internal generator, RF preamplifier, EMI measurement application
FPL-IOT7	1304.0004P63		5 kHz to 7.5 GHz	R&S®FPL1007: Additional interfaces, Internal generator, GPIB interface, RF preamplifier, EMI measurement application
ZPH-ANR4	1321.1211P61	Handheld Analyzer	2 MHz to 4 GHz	R&S®ZPH02 one port: GPS support
ZPH-FOX4	1321.1211P62	Handheld Analyzer	2 MHz to 4 MHz	R&S®ZPH12 two ports: Preamplifier, Spectrum analysis measurement application
FPH-INH4	1321.1111P61	Handheld Analyzer	5 KHz to 4 GHz	R&S®FPH02: Preamplifier, Interface analysis application, maps
FPH-INH8	1321.1111P62	Handheld Analyzer	5 kHz to 8 GHz	R&S®FPH06: Preamplifier, Interface analysis application, maps
FPC-EMI1	1328.66660P61	Spectrum Analyzer	5 kHz to 1 GHz	R&S®FPC1000: Preamplifier, EMI receiver mode, Cable for R&S®HM6050
FPL-EMI3	1304.0004P61	Spectrum Analyzer	5 kHz to 3 GHz	R&S®1003: Additional interfaces, Internal generator, RF preamplifier, EMI measurement application
FPL-EMI7	1304.0004P62	Spectrum Analyzer	5 kHz to 7.5 GHz	R&S®FPL1007: Additional interfaces, Internal generator, GPIB interface, RF preamplifier, EMI measurement application
