Keysight Technologies MXR054A

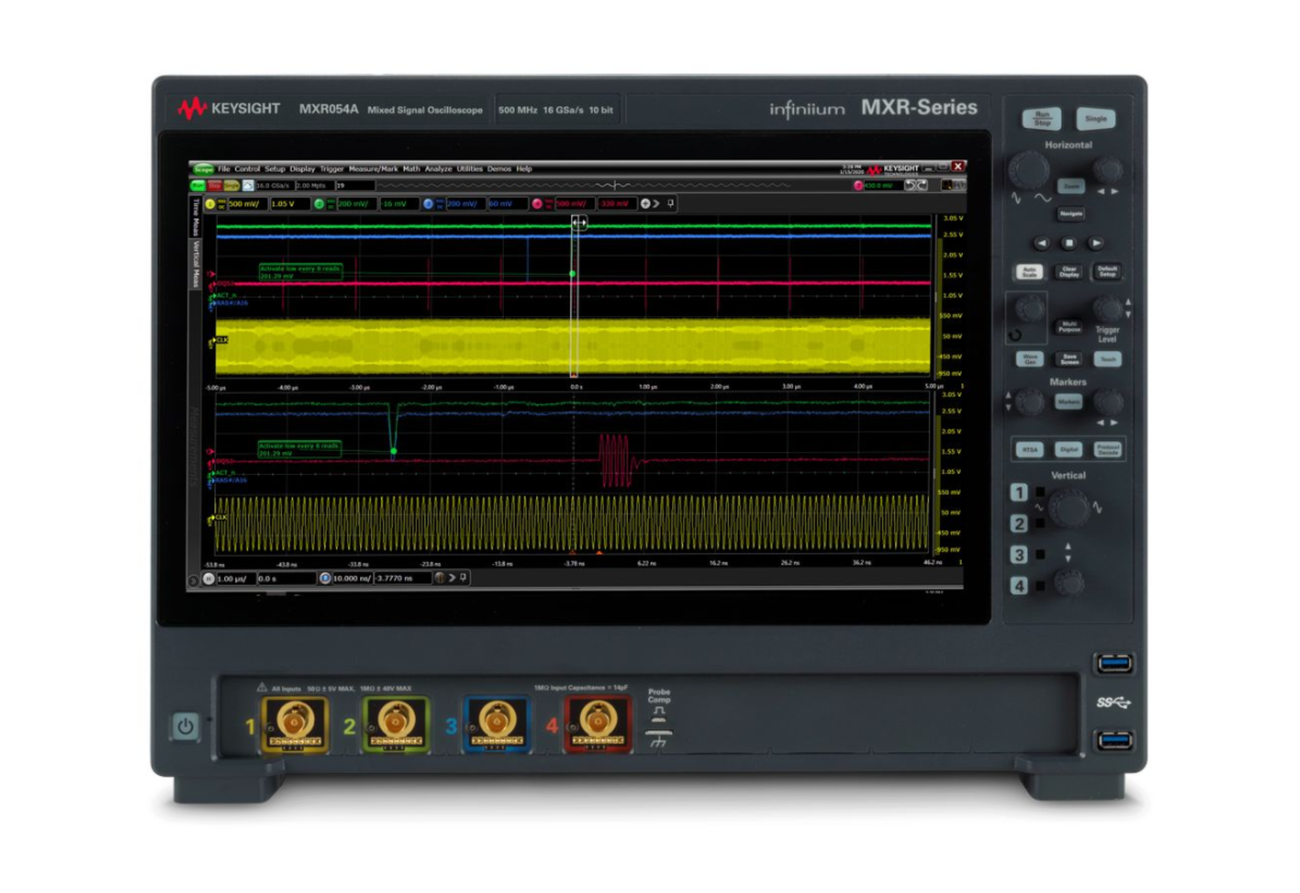

Infiniium MXR Real-Time Oscilloscope; 4 Channel, 16 GSa/s, 500 MHz
型号
MXR054A产品类别
Oscilloscopes & Logic Analyzers制造商
Keysight Technologies配置型号包含以下特性:
Oscilloscopes & Logic AnalyzersOscilloscopes < 1GHz配置
技术指标
产品总览
资源
让我们为您提供准确的配置
技术指标
请参考资源中的资料文档或查看产品总览。
如果您想了解更多，请 联系，我们的团队将为您提供帮助。
产品总览
The Infiniium MXR-Series oscilloscopes are your window into the intricate interactions of complex designs. Offering illuminating views of all your crucial signals, the MXR-Series helps you go from symptom to root cause to resolution in minutes instead of hours. Leveraging the same hardware acceleration ASIC as the Infiniium UXR-Series, the MXR-Series accelerates eye plots and triggering with the excellent signal integrity that you've come to expect from Keysight. The MXR-Series also lets you future-proof your budget because it is fully upgradeable, including the number of channels and bandwidth.
The MXR054A has 500 MHz on all 4 channels, option to integrate 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz and 8 channels
| Key Features |
| 500 MHz on all 4 analog channels |
| Faster test speeds than ever before with ASICs from the Infiniium UXR-Series |
| Accurate measurements with ENOB up to 9.0, noise as low as 43 µV |
| Maximum memory is a flexible 1.6 G points |
| Capabilities are extended with 8-in-1 instrument integration |
| Upgradeable in every possible way — including bandwidth and channel upgrades |
| Benefits | |
| Simplify Data Gathering and Analysis | The MXR-Series offers a robust suite of powerful software for signal integrity, power integrity, protocol decode and trigger applications as well as compliance test applications. |
| MXR-Series Offers | Real-time spectrum analysis, ideal for testing fast-changing signals >750,000 UI/s eye diagrams at 10 bits 6 GHz on 8 channels 16 GSa/s on 8 channels 200 Mpts per channel memory, standard Full upgradeability, no exceptions |
| Specifications | |
| Infiniium MXR-Series | |
| Feature | Parameter |
| Analog Channels | 4 or 8, upgradeable |
| Bandwidth | 500 MHz to 6 GHz, upgradeable |
| Sample Rate | 16 GSa/s |
| Memory | 200 Mpts, upgradeable to 400 Mpts or new 1.6 Gpts flexible memory 1 |
| Resolution | 10 bits, up to 16 with high resolution |
| ENOB | As high as 9.0 |
| Timebase Accuracy | 8 parts per billion |
| Intrinsic Jitter | As low as 118 fs |
| Noise ( 1mV/div) | As low as 43 µV |
| Digital Logic Channels | 16, dedicated input, upgradeable |
| Integrated Tools | 8-in-1 |
| Eye Diagram Speed | > 750,000 UI/s |
| Screen Display | 15.6” touch, full HD, dual screen support |
Note:
1 See data sheet spec tables to learn more about the all-new 1.6 Gpts combined flexible memory option.
| Specifications | ||||||
MXR254A to MXR608A | ||||||
| Model Overview | ||||||
| Model | MXR254A | MXR258A | MXR404A | MXR408A | MXR604A | MXR608A |
| Analog Channels | 4 | 8 | 4 | 8 | 4 | 8 |
| Bandwidth | 2.5 GHz | 2.5 GHz | 4 GHz | 4 GHz | 6 GHz | 6 GHz |
| Minimum Rise/Fall Time | 172 ps (10-90) 124 ps (20-80) | 172 ps (10-90) 124 ps (20-80) | 108 ps (10-90) 78 ps (20-80) | 108 ps (10-90) 78 ps (20-80) | 72 ps (10-90) 52 ps (20-80) | 72 ps (10-90) 52 ps (20-80) |
| ADC Bits | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res |
Effective Number of Bits (ENOB) | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 |
| Max. Memory Depth | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts |
| Noise Floor | 100 µV(rms) | 100 µV(rms) | 132 µV(rms) | 132 µV(rms) | 193 µV(rms) | 193 µV(rms) |
| Max. Sample Rate | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s |
| Specifications | ||||||
MXR054A to MXR208A | ||||||
| Model Overview | ||||||
| Model | MXR054A | MXR058A | MXR104A | MXR108A | MXR204A | MXR208A |
| Analog Channels | 4 | 8 | 4 | 8 | 4 | 8 |
| Bandwidth | 500 MHz | 500 MHz | 1 GHz | 1 GHz | 2 GHz | 2 GHz |
| Minimum Rise/Fall Time | 860 ps (10-90) 620 ps (20-80) | 860 ps (10-90) 620 ps (20-80) | 430 ps (10-90) 310 ps (20-80) | 430 ps (10-90) 310 ps (20-80) | 215 ps (10-90) 155 ps (20-80) | 215 ps (10-90) 155 ps (20-80) |
| ADC Bits | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res | 10, up to 16 with high-res |
| Effective Number of Bits (ENOB) | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 | As high as 9.0 |
| Max. Memory Depth | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts | 1.6 Gpts |
| Noise Floor | 63 µV(rms) | 63 µV(rms) | 73 µV(rms) | 73 µV(rms) | 91 µV(rms) | 91 µV(rms) |
| Max. Sample Rate | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s |
| Specifications | |
Infiniium MXR-Series Real-Time Oscilloscopes | |
| Model Overview | |
| MXR054A | 500 MHz on all 4 channels, options to integrate 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz and 8 channels |
| MXR058A | 500 MHz on all 8 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz |
| MXR104A | 1 GHz on all 4 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz and 8 channels |
| MXR108A | 1 GHz on all 8 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz |
| MXR204A | 2 GHz on all 4 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz and 8 channels |
| MXR208A | 2 GHz on all 8 channels, option to integrate 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz |
| MXR254A | 2.5 GHz on all 4 channels, option to integrate 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz and 8 channels |
| MXR258A | 2.5 GHz on all 8 channels, option to integrate 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz |
| MXR404A | 4 GHz on all 4 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz and 8 channels |
| MXR408A | 4 GHz on all 8 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz |
| MXR604A | option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable , including up to 6 GHz and 8 channels |
| MXR608A | 6 GHz on all 8 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable |
| Specifications | |
Infiniium MXR-Series Integrated Tools Option | |
| Option | Description |
| MXR2MSO | 16 digital channels |
| MXR2WAV | 50 MHz waveform generator |
| MXR2RTSA | RTSA, DDC |
| Standard | 4 digit DVM, 10 digit counters |
| Various | Protocol analysis |
