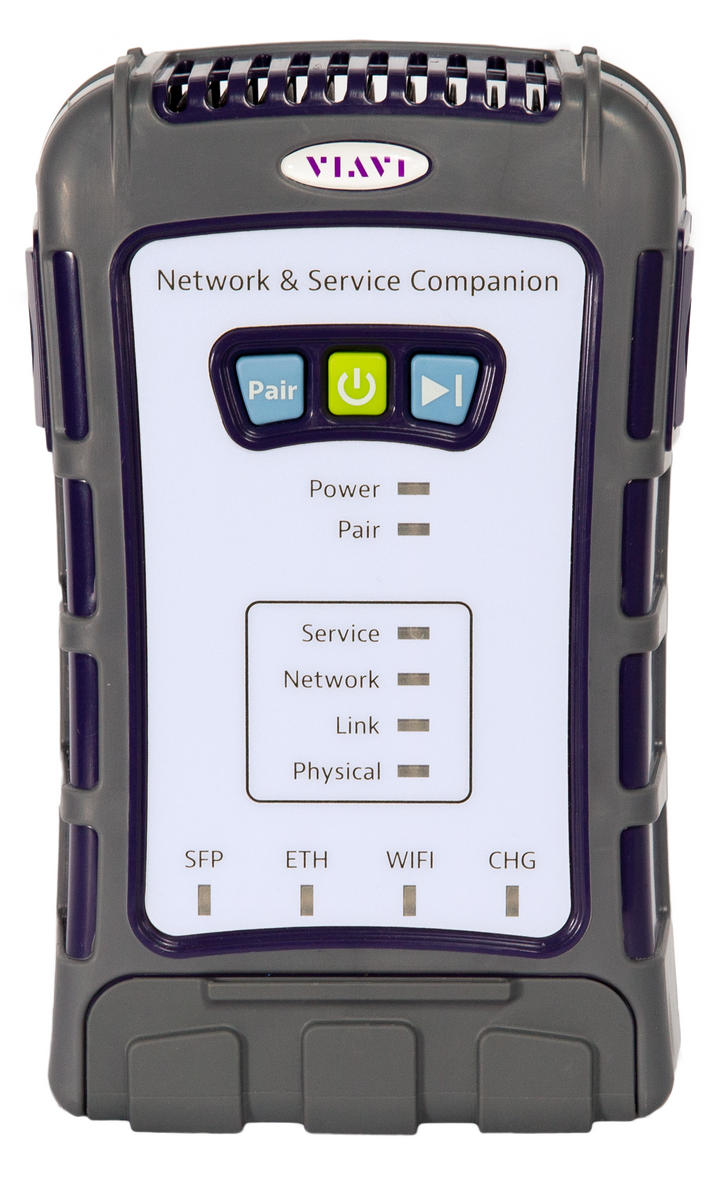

Viavi NSC-100
Network and Service Companion
型号
NSC-100产品类别
Network & Fiber Installations制造商
Viavi配置型号包含以下特性:
Network & Fiber InstallationsLAN Cable Test Instruments配置
技术指标
产品总览
资源
让我们为您提供准确的配置
技术指标
请参考资源中的资料文档或查看产品总览。
如果您想了解更多，请 联系，我们的团队将为您提供帮助。
产品总览
The Network & Service Companion is a compact hand-held device combining multiple test interfaces (PON, Ethernet, WiFi) with VIAVI ‘OneCheck’ applications to make network validation and multi-gig service testing a simple and speedy process for all frontline techs and installers, be they beginner or expert.
| Key Features |
| Robust, field-ready, screenless design |
| Throughput testing up to 10 Gbps (SpeedCheck, Ookla Speedtest, TrueSpeed RFC-6349, iPerf) |
| Ethernet L2/L3 loop back support for Y.1564 & RFC-2544 tests up to 10 Gbps |
| VIAVI Fusion (centralized test system) leverages NSCs as remote-controlled test agents |
| High-end WiFi test shows coverage, channel noise, airtime, and throughput |
| Automated ‘OneCheck’ ensures all required tests are performed while on site |
| Job Manager helps techs manage their Jobs, Test Results & Reports |
| On-board report generation and submission via the cloud (StrataSync) or direct email (smart phone / tablet) |
| VIAVI Mobile Tech app support |
| Benefits |
| Empowers techs with simple, fast, and comprehensive multi-gig service activation testing and troubleshooting |
| Combines PON delivery and in-premises service distribution testing with PON, Ethernet and high-end WiFi test interfaces |
| One button press ‘OneCheck’ application makes network validation and service testing a simple and speedy process |
| Enables accurate benchmarking of service delivery to and distribution within a premises with clear and fast demarcation/segmentation of any issues |
| Drives compliance of best practice to reduce or prevent customer complaints, call-backs, and churn |
| Specifications | ||
NSC-100 Network & Service Companion | ||
| Model Overview | ||
| Standard Packages | Model | Description |
| PON Package | NSC100-GPON-BASE | GPON |
| NSC100-GPON-PLUS | GPON, Ethernet, SpeedCheck 1G, Speedtest 1G | |
| NSC100-GPON-PRO | GPON, Ethernet, WiFi, SpeedCheck 1G, Speedtest 1G | |
| NSC100-XGSPON-BASE | XGSPON | |
| NSC100-XGSPON-PLUS | XGSPON, Ethernet, SpeedCheck 1G, Speedtest 1G | |
| NSC100-XGSPON-PRO | XGSPON, Ethernet, WiFi, SpeedCheck 1G, Speedtest 1G | |
| NSC100-GPON-XGSPON-BASE | GPON, XGSPON | |
| NSC100-GPON-XGSPON-PLUS | GPON, XGSPON, Ethernet, SpeedCheck 1G, Speedtest 1G | |
| NSC100-GPON-XGSPON-PRO | GPON, XGSPON, Ethernet, WiFi, SpeedCheck 1G, Speedtest 1G | |
| Home Package | NSC100-HOME-PLUS | Ethernet, SpeedCheck 1G, Speedtest 1G |
| NSC100-HOME-PRO | Ethernet, WiFi, SpeedCheck 1G, Speedtest 1G | |
| Enterprise | NSC100-ENTERPRISE-PLUS | Ethernet, TrueSpeed 1G |
| NSC100-ENTERPRISE-PRO | Ethernet, WiFi, TrueSpeed 1G | |
| Loopback | NSC100-LOOPBACK-BASE | Ethernet Loopback 1G |
| NSC100-LOOPBACK-PLUS | Ethernet Loopback 10G | |
| Platinum | NSC100-PLATINUM-1G | GPON, Ethernet, WiFi, SpeedCheck 1G, Speedtest 1G, TrueSpeed 1G, Loopback 1G, TWAMP |
| NSC100-PLATINUM-10G | GPON, Ethernet, WiFi, SpeedCheck 2G, Speedtest 2G, TrueSpeed 2G, Loopback 10G, TWAMP |
