Quantifi Photonics: 1000 Series Laser
Introducing a New OEM Rental Option,
Quantifi Photonics.

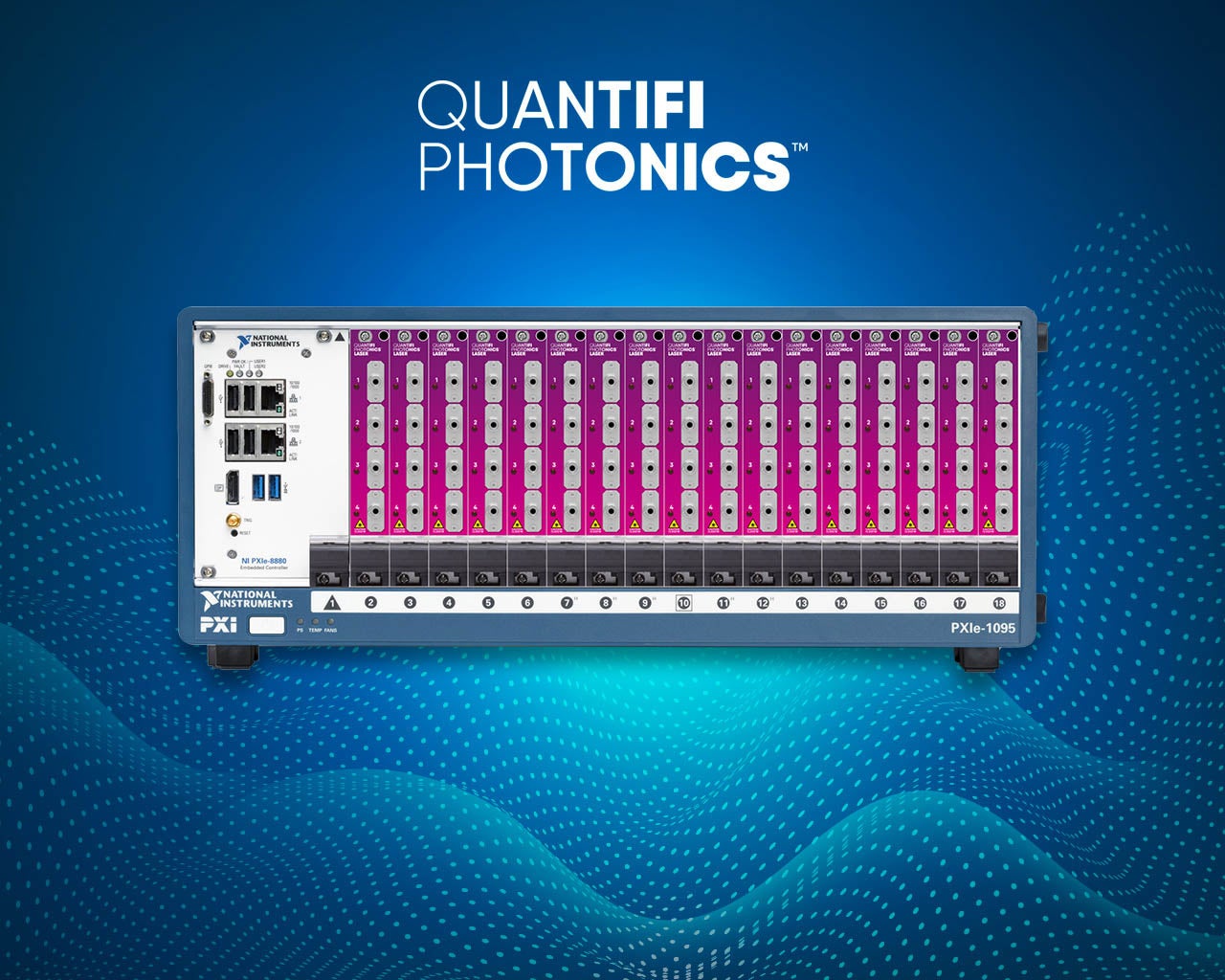

The Quantifi Photonics Laser 1000 Series offers superior power accuracy and cross-channel uniformity. These models feature a versatile C-band and L-band tunable laser source with high-power output, narrow 100 kHz linewidth and 0.01 pm resolution tunability. The Laser 1000 Series is available in a PXIe module form factor designed to work with NI mainframes, or a USB/MATRIQ form factor.
Offer ends on June 30, 2023
This promotion has now expired.
We're sorry, this offer is no longer available, but you can visit our promotions page to view all our current offers.
View current promotionsAffordable. Compact. Quiet. Versatile.
Laser 1000 Series technical features:
- Full tunability across C-band and L-band
- 0.01 pm tuning resolution
- Up to +16.5 dBm of power
- Narrow 100 kHz linewidth
- Whisper mode (available on Series 1050 and higher models)
- Smarter calibration for enhanced power uniformity
Ideal for:
- Production and Manufacturing
- Academic Labs such as universities and research institutes
- Optical R&D Labs
Laser 1000 Series target applications:
- Mil/Aero testing/development (PDV)
- LiDAR
- Telecom testing
- Transceiver test beds
- Si photonics and wafer/chip testing
- Coherent communications transceiver test
- DWDM channel loading, stress test
- 400G ZR
Quantifi Photonics CW Tunable Laser Sources
Click HERE to view products on a single page.
| Quantifi Model | Wavelength | # Channels | Format | Whisper Mode |
| LASER-1002-1-FA-MTRQ | 1527 to 1568 nm | 1 | USB / MATRIQ | |
| LASER-1002-1-FA-PXIE | 1527 to 1568 nm | 1 | PXIe | |
| LASER-1002-2-FA-MTRQ | 1527 to 1568 nm | 2 | USB / MATRIQ | |
| LASER-1002-2-FA-PXIE | 1527 to 1568 nm | 2 | PXIe | |
| LASER-1002-4-FA-MTRQ | 1527 to 1568 nm | 4 | USB / MATRIQ | |
| LASER-1002-4-FA-PXIE | 1527 to 1568 nm | 4 | PXIe | |
| LASER-1052-1-FA-MTRQ | 1527 to 1568 nm | 1 | USB / MATRIQ | X |
| LASER-1052-1-FA-PXIE | 1527 to 1568 nm | 1 | PXIe | X |
| LASER-1052-2-FA-MTRQ | 1527 to 1568 nm | 2 | USB / MATRIQ | X |
| LASER-1052-2-FA-PXIE | 1527 to 1568 nm | 2 | PXIe | X |
| LASER-1052-4-FA-MTRQ | 1527 to 1568 nm | 4 | USB / MATRIQ | X |
| LASER-1052-4-FA-PXIE | 1527 to 1568 nm | 4 | PXIe | X |
