Anritsu MU909060A1
Gigabit Ethernet Module; with One SFP Slot and One RJ-45 Port
Model
MU909060A1Product Family
Telecommunication Transmission TestersManufacturer
AnritsuConfigured models contain the following attributes:
Telecommunication Transmission TestersTransmission Tester Portable up-to 1GBitConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview

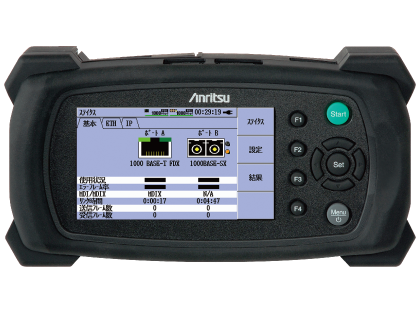

When outfitted with the Gigabit Ethernet module, the very compact battery-powered, easy-to-use Anritsu Network Master is a comprehensive solution for Gigabit Ethernet testing and for installation and troubleshooting Ethernet communication lines.
The instrument gives the user facilities for easy bandwidth verification, connectivity testing and service availability verification. The compact size and light weight of the instrument makes it very easy to carry around for field technicians working with the Ethernet lines. Despite the small size, the instrument is equipped with a large display so the user can easily read and interpret information from the tested lines off the large color display with easy-to-understand colors and graphical symbols. The graphical user interface also makes it a simple task to configure and operate the instrument.
| Key Features |
| Versatile, purpose-built solution for Gigabit Ethernet field testing |
| Comprehensive Ethernet testing for installation, maintenance and troubleshooting |
| Ping test, traceroute test and Electrical cable diagnostics |
| Two ports simultaneously work for shortening multiple ports installation, including pass through test and in-line monitoring test |
| Option for automated ITU-T Y.1564 testing, simultaneously testing of multiple traffic streams emulating real world networks |
| Option for automated RFC 2544 testing |
| Test Automator simplifies operation and ensure proper set-up |
| Channel Stats option identifies error streams, top talkers and network attack |
| Service disruption time measurement to test the performance of realtime applications like voIP and IPTV |
| Pass/Fail identification and graphical result display |
| Pdf and CSV report generation for documentation of test results |
| High resolution, widescreen color display that is easy to read indoors or out |
| Rugged design provides years of service for the users |
| Modular platform ensures maximum return on investment |
| Compact and lightweight design for maximum portability in the field |
| High performance without a high price |
| Specifications | |
| MU9090A | |
| Ordering Information | |
| Model/Order Number | Description |
| MT9090A | Mainframe (with color LCD) |
| Standard Accessories | |
| G0203A | AC Adapter |
| G0202A | NiMH Battery Pack |
| Z1023A | Strap |
| B0601B | Standard Soft Case |
| B0663A *1 | Protector |
| Base Model *2 | |
| MU909060A1 | Gigabit Ethernet Module (with one SFP slot and one RJ-45 port) |
| MU909060A2 | Gigabit Ethernet Module (with two RJ-45 ports) |
| MU909060A3 | Gigabit Ethernet Module (with two SFP slots) |
| Standard Accessories | |
| W3173AE | Gigabit Ethernet Tester Quick Start Guide |
| Z1234A | Network Master Gigabit Ethernet Tester CD |
Notes:
*1 The shoulder strap can be used to hang the instrument around the neck while working.
*2 Not support MT9090A with MT9090A-001
| Specifications | |
| MU9090A Installed Software Option (Retrofit) | |
| Ordering Information | |
| Model/Order Number | Description |
| MU909060A1-301 | RFC 2544 Test Retrofit (for MU909060A1) |
| MU909060A2-301 | RFC 2544 Test Retrofit (for MU909060A2) |
| MU909060A3-301 | RFC 2544 Test Retrofit (for MU909060A3) |
| MU909060A1-302 | Multistream Retrofit (for MU909060A1) |
| MU909060A2-302 | Multistream Retrofit (for MU909060A2) |
| MU909060A3-302 | Multistream Retrofit (for MU909060A3) |
| MU909060A1-303 | Stacked VLAN Retrofit (for MU909060A1) |
| MU909060A2-303 | Stacked VLAN Retrofit (for MU909060A2) |
| MU909060A3-303 | Stacked VLAN Retrofit (for MU909060A3) |
| MU909060A1-304 | MPLS Retrofit (for MU909060A1) |
| MU909060A2-304 | MPLS Retrofit (for MU909060A2) |
| MU909060A3-304 | MPLS Retrofit (for MU909060A3) |
| MU909060A1-305*3 | Remote GUI Retrofit (for MU909060A1) |
| MU909060A2-305*3 | Remote GUI Retrofit (for MU909060A2) |
| MU909060A3-305*3 | Remote GUI Retrofit (for MU909060A3) |
| MU909060A1-306 | Channel Stats Retrofit (for MU909060A1) |
| MU909060A2-306 | Channel Stats Retrofit (for MU909060A2) |
| MU909060A3-306 | Channel Stats Retrofit (for MU909060A3) |
| MU909060A1-307 | Y.1564 Test Retrofit (for MU909060A1) |
| MU909060A2-307 | Y.1564 Test Retrofit (for MU909060A2) |
| MU909060A3-307 | Y.1564 Test Retrofit (for MU909060A3) |
Notes:
*3 Requires J1480A USB-Ethernet Converter (sold separately)
The above software options can be field installed by the customer in already purchased Network Master Gigabit Ethernet testers
Resources
File resources
Anritsu Network Master Series MT9090A Mainframe and MU909060A1/A2/A3 Gigabit Ethernet Module Product Brochure
