Product Overview

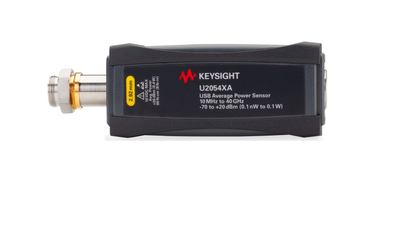

The Keysight U2054XA is a fast, accurate and wide dynamic range 10 MHz – 40 GHz USB average power sensor.
Accurately measure any modulated signal with the Keysight Technologies, Inc. U/L2050/60 X-Series wide dynamic range power sensors. The USB/LAN connectivity models come with wide dynamic range, covering -70 to +26 dBm. This sensor offers very accurate and repeatable power measurements for any modulated signal and comes with super-fast measurement speed of 50,000 readings/sec, which enables higher manufacturing throughput. Users can also save time and reduce measurement uncertainty with the internal zero and calibration function.
The U/L2050/60 X-Series is supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform average power measurement and analysis.
| Key Features |
| Frequency range of 10 MHz – 40 GHz |
| USB connectivity with wide dynamic range of -70 to +20 dBm for small signal measurements |
| Fast real-time measurement of 50,000 readings/sec |
| Real-time measurement with zero dead time to ensure every single continuous pulse is measured |
| Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements |
| Internal zero and automatic calibration saves time and reduces measurement uncertainty |
| A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences |
| Specifications | |
LAN / USB Average Power Sensor | |
| Model Overview | |
| Model | Description |
| U2049XA | LAN peak and average power sensor, 10 MHz to 33 GHz |
| U2049XA, Option TVA | LAN peak and average power sensor, 10 MHz to 33 GHz, Thermal Vacuum Option |
| U2051XA | USB wide dynamic range average power sensor, 10 MHz to 6 GHz |
| U2052XA | USB wide dynamic range average power sensor, 10 MHz to 18 GHz |
| U2053XA | USB wide dynamic range average power sensor, 10 MHz to 33 GHz |
| U2054XA | USB wide dynamic range average power sensor, 10 MHz to 40 GHz |
| U2055XA | USB wide dynamic range average power sensor, 10 MHz to 50 GHz |
| U2055XA, Option 053 | USB wide dynamic range average power sensor, 10 MHz to 53 GHz |
| U2056XA | USB wide dynamic range average power sensor, 10 MHz to 54 GHz |
| U2057XA | USB wide dynamic range average power sensor, 10 MHz to 67 GHz |
| U2061XA | USB wide dynamic range peak and average power sensor, 10 MHz to 6 GHz |
| U2062XA | USB wide dynamic range peak and average power sensor, 10 MHz to 18 GHz |
| U2063XA | USB wide dynamic range peak and average power sensor, 10 MHz to 33 GHz |
| U2064XA | USB wide dynamic range peak and average power sensor, 10 MHz to 40 GHz |
| U2065XA | USB wide dynamic range peak and average power sensor, 10 MHz to 50 GHz |
| U2065XA, Option 053 | USB wide dynamic range peak and average power sensor, 10 MHz to 53 GHz |
| U2066XA | USB wide dynamic range peak and average power sensor, 10 MHz to 54 GHz |
| U2067XA | USB wide dynamic range peak and average power sensor, 10 MHz to 67 GHz |
| Specifications | |
LAN Average Power Sensor | |
| Model Overview | |
| Model | Description |
| L2051XA | LAN wide dynamic range average power sensor, 10 MHz to 6 GHz |
| L2052XA | LAN wide dynamic range average power sensor, 10 MHz to 18 GHz |
| L2053XA | LAN wide dynamic range average power sensor, 10 MHz to 33 GHz |
| L2054XA | LAN wide dynamic range average power sensor, 10 MHz to 40 GHz |
| L2055XA | LAN wide dynamic range average power sensor, 10 MHz to 50 GHz |
| L2055XA, Option 053 | LAN wide dynamic range average power sensor, 10 MHz to 53 GHz |
| L2056XA | LAN wide dynamic range average power sensor, 10 MHz to 54 GHz |
| L2057XA | LAN wide dynamic range average power sensor, 10 MHz to 67 GHz |
| L2061XA | LAN wide dynamic range peak and average power sensor, 10 MHz to 6 GHz |
| L2062XA | LAN wide dynamic range peak and average power sensor, 10 MHz to 18 GHz |
| L2063XA | LAN wide dynamic range peak and average power sensor, 10 MHz to 33 GHz |
| L2064XA | LAN wide dynamic range peak and average power sensor, 10 MHz to 40 GHz |
| L2065XA | LAN wide dynamic range peak and average power sensor, 10 MHz to 50 GHz |
| L2065XA, Option 053 | LAN wide dynamic range peak and average power sensor, 10 MHz to 53 GHz |
| L2066XA | LAN wide dynamic range peak and average power sensor, 10 MHz to 54 GHz |
| L2067XA | LAN wide dynamic range peak and average power sensor, 10 MHz to 67 GHz |
| L2065XT, Option 053 | LAN peak and average power sensor, 10 MHz to 53 GHz, Thermal Vacuum Compliance |
| L2066XT | LAN peak and average power sensor, 10 MHz to 54 GHz, Thermal Vacuum Compliance |
| L2067XT | LAN peak and average power sensor, 10 MHz to 67 GHz, Thermal Vacuum Compliance |
