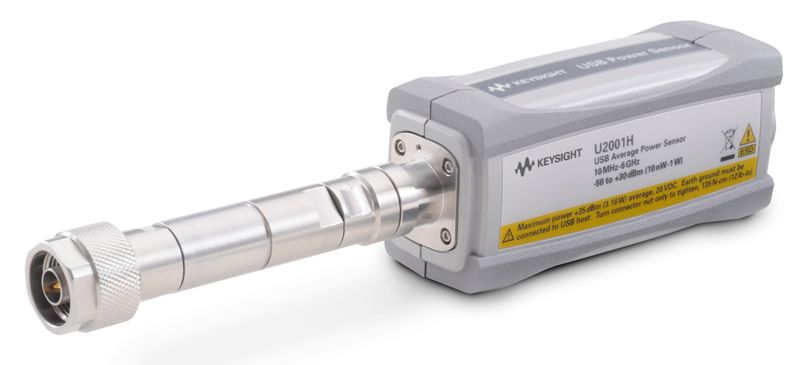

U2001H USB power sensor measures average power over the frequency range 10 MHz to 6 GHz and power range -50 dBm to +30 dBm.
The U2000 Series is supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming.
Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform average power measurements and analysis.
| Key Features |
| Frequency range of 10 MHz to 6 GHz |
| Wide dynamic range (-50 dBm to +30 dBm) |
| Internal zeroing while connected to the DUT |
| High measurement speed of up to 250 readings/second |
| Support internal / external trigger measurements, internal triggering, and trace display |
| Display power measurements on a PC without the need of power meter |
| Compatible with other Keysight instruments |
| A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences |
| Specifications |
|
|
|
|
U2000 Series
Power Sensors
|
|
|
|
|
| Model Overview |
|
|
|
|
| Model | Frequency Range | Power Range | Maximum Power | Connector Type |
| U2000A | 10 MHz to 18 GHz | –60 to +20 dBm | +25 dBm avg, 20 VDC | N-type male, 50 Ω |
| U2001A | 10 MHz to 6 GHz | –60 to +20 dBm | +33 dBm pk, < 10 µs | N-type male, 50 Ω |
| U2002A | 50 MHz to 24 GHz | –60 to +20 dBm | +33 dBm pk, < 10 µs | 3.5 mm male, 50 Ω |
| U2004A | 9 kHz to 6 GHz | –60 to +20 dBm | +25 dBm avg, 5 VDC
+33 dBm pk, < 10 µs
| N-type male, 50 Ω |
| U2000B | 10 MHz to 18 GHz | –30 to +44 dBm | +45 dBm avg, 20 VDC | N-type male, 50 Ω |
| U2001B | 10 MHz to 6 GHz | –30 to +44 dBm | +47 dBm pk, 1 µs | N-type male, 50 Ω |
| U2000H | 10 MHz to 18 GHz | –50 to +30 dBm | +33 dBm avg, 20 VDC | N-type male, 50 Ω |
| U2001H | 10 MHz to 6 GHz | –50 to +30 dBm | +50 dBm pk, 1 µs | N-type male, 50 Ω |
| U2002H | 50 MHz to 24 GHz | –50 to +30 dBm | +33 dBm avg, 10 VDC
+50 dBm pk, 1 µs
| 3.5 mm male, 50 Ω |
