N8480 Series Power Sensors are the replacement solutions for 8480 Series Power Sensors. The new power sensors are integrated with EEPROM feature, which allows users to calibrate the power sensors without manually entering the calibration factors to the power meter. By comparing to legacy 8480 Series Power Sensors, there are tremendous improvements such as wider dynamic range and frequency range, better accuracy, linearity, repeatability, and SWR.
| Key Features |
| EEPROM to store cal factors eliminates manual entry |
| Wide frequency range from 100 kHz to 6 GHz |
| Wide dynamic range from -35 dBm to +20 dBm |
| Best-in-class power linearity of less than 1%, excellent SWR of mismatch uncertainty and highly accurate power repeatability |
| Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) |
| SCPI codes compatible with 8480 series (option CFT) |
Note:
Option CFT is available as a replacement of legacy 8480 Series power sensors intended for cal factor manual entry and SCPI compatibility. Option CFT is not compatible with 43x and other obsolete power meters.
- SCPI codes compatible with E-Series sensor (standard option)
- Compatible with EPM (new N1913/14A, E4418/19B), EPM-P (E4416/17A), P-Series (N1911/12A) power meters
Note: All N8480 series power sensors are not compatible with the Keysight 43x, E1416A, N8262A power meters, 5314x microwave counters and E7495x base station test set.
| Specifications |
|

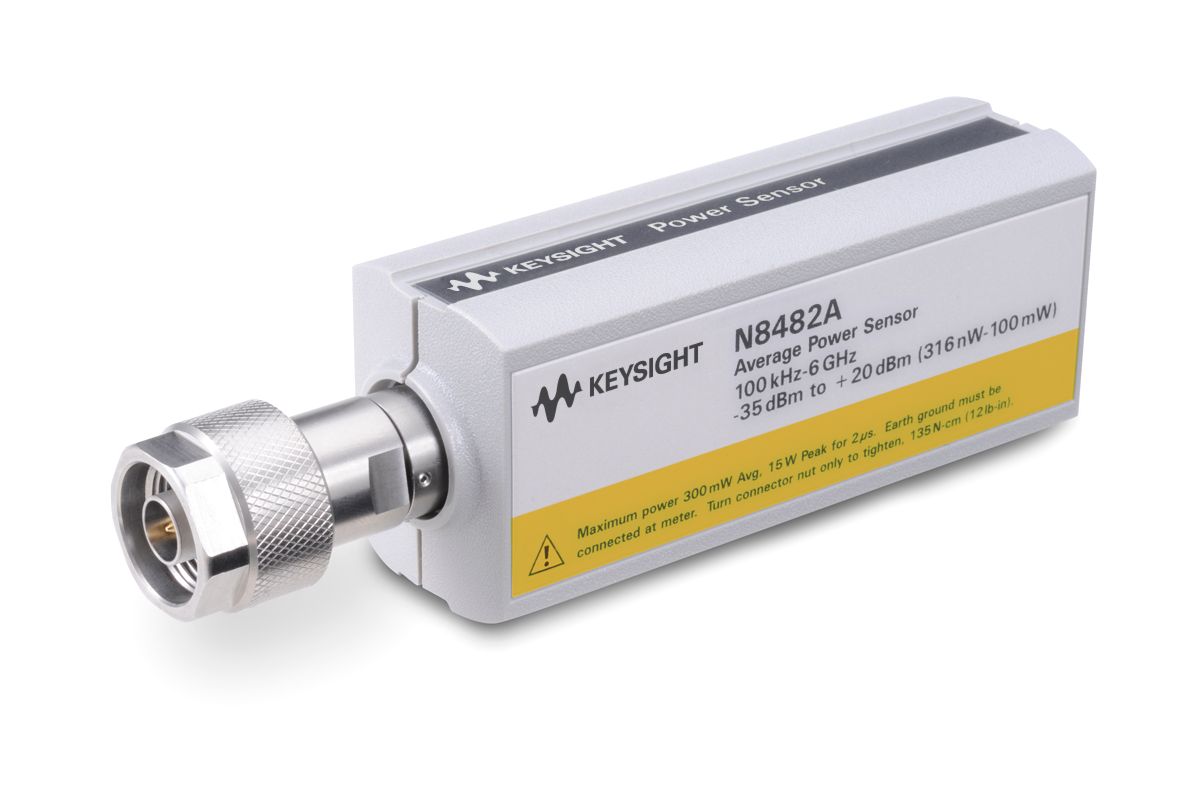

N8482A
Thermocouple Power Sensor
|
|
| Features | Parameters |
| Connector Type | Type-N (m) |
| Frequency Range | 100 kHz to 6 GHz |
| Maximum Frequency | 6 GHz |
| Maximum Power | +20 dBm (100 mW) |
| Measurement Type (Supported Power Meters) | Average/CW (EPM, EPM-P and P-series) |
| Measurement Type | Average/CW only |
| Specifications |
|
|
|
N8480 Series
Power Sensors
|
|
|
|
| Model Overview |
|
|
|
| Standard Power Sensors | Description | Frequency Range | Power Range |
| N8481A | Standard N8481A model with EEPROM feature | 10 MHz to 18 GHz | –35 to +20 dBm |
| N8482A | Standard N8482A model with EEPROM feature | 100 kHz to 6 GHz | –35 to +20 dBm |
| N8485A | Standard N8485A model with EEPROM feature | 10 MHz to 26.5 GHz | –35 to +20 dBm |
| N8487A | Standard N8487A model with EEPROM feature | 50 MHz to 50 GHz | –35 to +20 dBm |
| N8488A | Standard N8488A model with EEPROM feature | 10 MHz to 67 GHz | –35 to +20 dBm |
| N8481B | Standard N8481B model with EEPROM feature | 10 MHz to 18 GHz | –5 to +44 dBm |
| N8482B | Standard N8482B model with EEPROM feature | 100 kHz to 6 GHz | –5 to +44 dBm |
| N8481H | Standard N8481H model with EEPROM feature | 10 MHz to 18 GHz | –15 to +35 dBm |
| N8482H | Standard N8482H model with EEPROM feature | 100 kHz to 6 GHz | –15 to +35 dBm |
| N8486AR | Standard N8486AR model with EEPROM feature | 26.5 to 40 GHz | –35 to +20 dBm |
| N8486AQ | Standard N8486AQ model with EEPROM feature | 33 to 50 GHz | –35 to +20 dBm |
