Product Overview

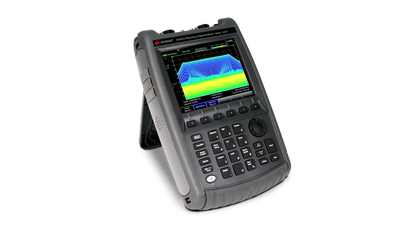

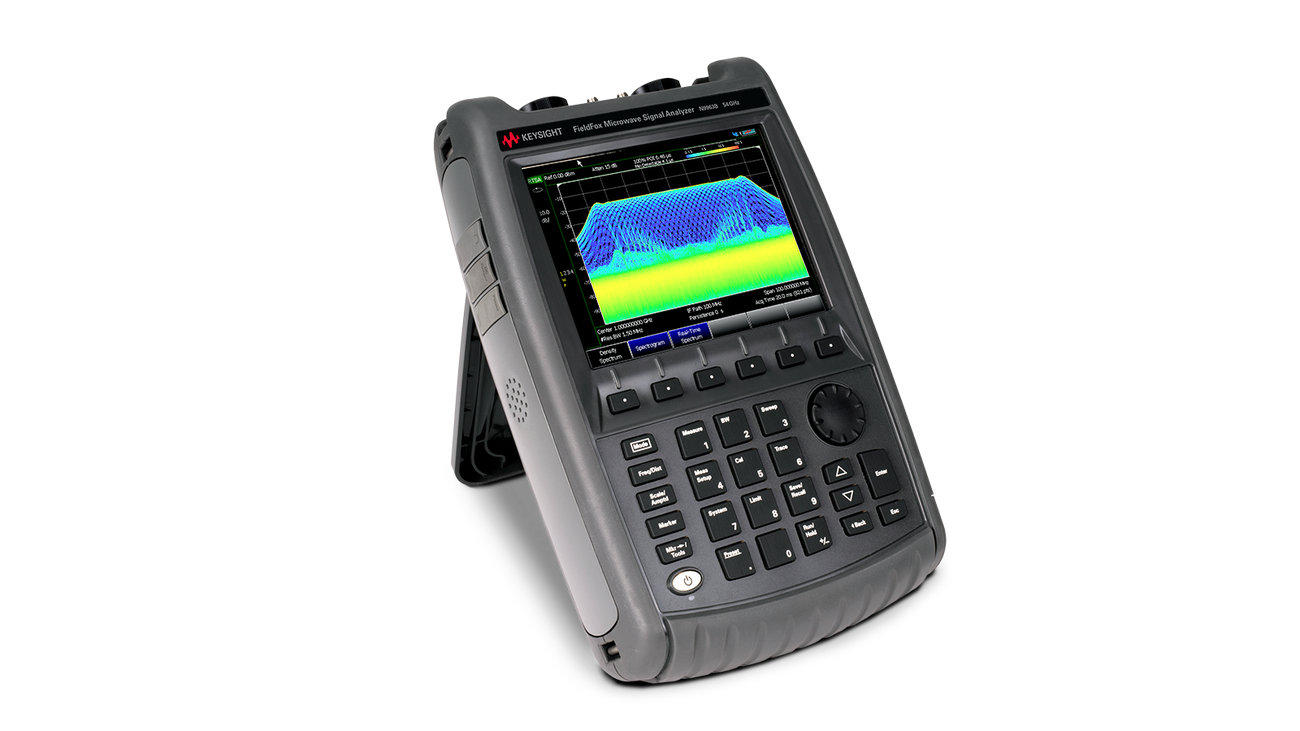

Given the new dynamics of wideband, microwave and millimeter wave communications, Keysight developed the next generation FieldFox Microwave Analyzer with 120 MHz of real-time bandwidth and frequency coverage up to 54 GHz. To address the millimeter wave frequency requirements for 5G, satellite and automotive radar industries, FieldFox can easily extend its frequency up to 110 GHz with an add-on downconverter.
FieldFox is also the industries most integrated handheld analyzer supporting over 20 key RF and microwave instrument functions including signal analyzer, full 2-port vector network analyzer, real-time spectrum analyzer, over-the-air demodulation, CW signal source, power meter and many more, in an all-in-one field proof package.
| Key Features |
| Expand capabilities with real-time spectrum analyzer or tracking generator options. |
| Make accurate spectrum analyzer measurements (± 0.3 dB) without warmup. |
| Capture intermittent signals with 120 MHz gap-free, real-time bandwidth. |
| Characterize radar pulse profiles with a portable solution. |
| Perform over-the-air measurements for 5G NR and LTE. |
| Capture I/Q data for RF signal monitoring and analysis. |
| Use GPS/GNSS for geolocation and timestamping. |
| Carry one lightweight unit at 3.4 kg (7.4 lb). |
| Benefits | |
| Built For 5G | 5G technologies provide dramatic network speed improvement and superfast connection time. 5G New Radio (NR) is the 3rd Generation Partnership Project (3GPP) standard for the wireless network running on the sub-7.125 GHz frequency band (FR1) and above 24.250 GHz on the millimeter-wave (mmWave) frequency band (FR2). 5G offers gigabit per second data rates. 5G networks use wider bandwidths, higher operating frequencies, and active antenna systems, such as phased array antennas. The key challenges for 5G network deployment are characterizing air interface path loss, optimizing beam coverage, and mitigating interference issues. Keysight’s 5G gNodeB (gNB) field test solution, based on the FieldFox microwave analyzer, provides a complete toolkit for radio frequency (RF) engineers and technicians to install and troubleshoot 5G networks. This solution can verify hardware gNB performance, such as cable and antenna conditions, transmit power, control channel power, and RF spurious responses. It can also verify signal quality over the air, including multipath synchronization signal information and coverage area path loss, as well as identify and troubleshoot interference issues. |
| Specifications | |
N9963B FieldFox Handheld Microwave Signal Analyzer | |
| Features | Parameters |
| Maximum Frequency | 54 GHz |
| SA Start Frequency | 5 kHz |
| Dynamic Range | n/a |
| Output Power | n/a |
| Number of Built-In Ports | 2 ports |
| Instrument Type | Spectrum Analyzer |
| Cable and Antenna Analyzer | No |
| Spectrum Analyzer | Yes - Standard |
| Vector Network Analyzer | No |
| Additional SA Based Features | Built-In Power Meter Extended Range Transmission Analysis (ERTA) Real-Time Spectrum Analysis Noise Figure Measurements Over-The-Air Measurements |
| System Features | Built-In DC Source GPS Receiver - Internal Only Remote Control Capability |
| Power Measurement Using USB Sensor | CW or Swept-Frequency Frequency-Offset RF Pulse Test with Peak Sensor |
| Standard Attenuator Range | n/a |
| Standard Attenuator Step | n/a |
| Maximum Dynamic Range 3rd Order @1 GHz | n/a |
| DANL @1 GHz | -163 dBm |
| Maximum Analysis Bandwidth | n/a |
| Phase Noise @1 GHz (1 MHz offset) | n/a |
| Phase Noise @1 GHz (10 kHz offset) | -117 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset) | n/a |
| Applications Available | Yes |
| Overall Amplitude Accuracy | n/a |
| Bandwidth Options | n/a |
| Frequency Options | n/a |
| Performance Level | n/a |
| Applications-Cellular | 89600 VSA Software Over-The-Air LTE FDD and 5GTF |
| Applications-Digital Video | n/a |
| Applications-General Purpose | AM/FM Tune and Listen Field Strength Measurement SCPI Code Compatibility Spectrogram Stimulus Response |
| Applications-Wireless Connectivity | n/a |
| Handheld / Modular | Yes |
| Trace Update 100 MHz Span | 25 Updates Per Second |
| Specifications | |||
| FieldFox Handheld Microwave Signal Analyzer | |||
| Model Overview | |||
| Model | Description | Frequency Range¹ | Test Port Connectors |
| N9933B | 4 GHz FieldFox signal analyzer | 9 kHz to 4 GHz | Type-N (f) |
| N9934B | 6.5 GHz FieldFox signal analyzer | 9 kHz to 6.5 GHz | Type-N (f) |
| N9935B | 9 GHz FieldFox signal analyzer | 9 kHz to 9 GHz | Type-N (f) |
| N9936B | 14 GHz FieldFox signal analyzer | 9 kHz to 14 GHz | Type-N (f) |
| N9937B | 18 GHz FieldFox signal analyzer | 9 kHz to 18 GHz | Type-N (f) |
| N9938B | 26.5 GHz FieldFox signal analyzer | 9 kHz to 26.5 GHz | Type-N (f)² |
| N9960B | 32 GHz FieldFox signal analyzer | 9 kHz to 32 GHz | 2.4 mm (m) |
| N9961B | 44 GHz FieldFox signal analyzer | 9 kHz to 44 GHz | 2.4 mm (m) |
| N9962B | 50 GHz FieldFox signal analyzer | 9 kHz to 50 GHz | 2.4 mm (m) |
| N9963B | 54 GHz FieldFox signal analyzer | 9 kHz to 54 GHz | 1.8 mm (m) |
Notes:
¹ Useable to 5 kHz.
² Order Option 100 for 3.5 mm (m) test port connectors. With N9938B-100, the spectrum analyzer is built with 3.5 mm test port connectors instead of the standard Type-N (f). Option 100 is a prerequisite for Option 320 for N9938B.
