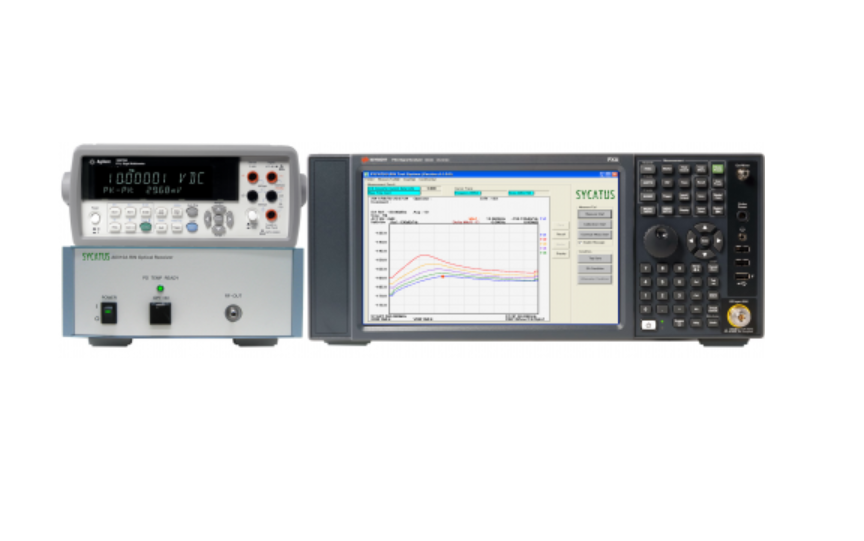

The A0010A RIN measurement system consists of SYCATUS optical receiver, RIN measurement software, Keysight X-series signal analyzer and digital multimeter.
The optical receiver of A0010A RIN measurement system converts the optical signal from DUT to amplified electrical signal. The noise power density in the signal is measured by the signal analyzer. The photo current of the optical signal is monitored by the digital multimeter. SYCATUS applied a unique technique to calibrate the whole system from the input of the optical receiver to the display of the Signal Analyzer, which enables accurate repeatable RIN measurement.
RIN measurement software and is installed in the signal analyzer. External PC is not required. Optionally the optical attenuator is attachable to the system to control the optical power into the RIN optical receiver. This stabilization contributes further repeatability and the protection of the RIN optical receiver from excessive optical power. RIN measurement software supports RIN-OMA test for IEEE 802.3 standards.
Key Features:
- RIN(Relative Intensity Noise) measurement with the world's widest 40 GHz bandwidth.
- Wide Wavelength Range of 800-1625nm with SM/MM selection.
- High Sensitivity <-160dB/Hz based on unique and accurate calibration.
| Parameter | Model | Min. | Typ. | Max. |
| Optical Wavelength | MM | 780 nm | | 1625 nm |
| SM | 1260 nm |
| 1625 nm |
| Measurement Frequency | 3 GHz | 100 kHz | | 3 GHz |
| 20 GHz | 10 MHz |
| 20 GHz |
| 100 MHz | 26.5 GHz |
| 26.5 GHz |
| 40 GHz | 500 MHz |
| 40 GHz |
| Optical Input Power | 3 GHz SM | | | 10 mW |
| 20 GHz SM |
|
| 10 mW |
| 20 GHz MM |
|
| 5 mW |
| 26.5 GHz SM/MM |
|
| 5 mW |
| 40 GHz SM |
|
| 5 mW |
| Minimum Measurable RIN Value | 3 GHz SM | | -160 dB/Hz | |
| 20 GHz SM |
| -160 dB/Hz |
|
| 20 GHz MM | | -157 dB/Hz |
|
| 26.5 GHz SM/MM |
| -157 dB/Hz |
|
| 40 GHz SM |
| -157 dB/Hz |
|
