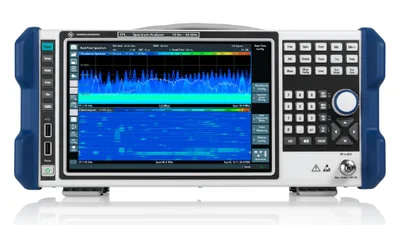

Rohde & Schwarz FPL1003 (1304.0004.03)
Available to Buy Online
View Configurations
Model
FPL1003 (1304.0004.03)Product Family
RF & Microwave Spectrum AnalyzersManufacturer
Rohde & SchwarzConfigured models contain the following attributes:
RF & Microwave Spectrum AnalyzersSpectrum Analyzers-Economy1GHz <= 10GHz1kHz <= 100kHzLet us help you with your exact configuration
Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
| Attribute | Value |
|---|---|
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
Product Overview
In an RF lab, the R&S FPL1000 is as indispensable as an oscilloscope or multimeter. It is a single measuring instrument for a variety of measurement tasks. It supports not only spectrum analysis, but also highly accurate power measurement with power sensors and analysis of analog and digitally modulated signals. The FPL1000 is the only instrument in its class that features an internal generator (FPL1-B9 option) and can analyze signals with a bandwidth of 40 MHz (FPL1-B40 option).
The solid RF performance makes the FPL1000 the ideal instrument for use in the lab, production and service. The 1 dB attenuator step size (FPL1-B25 option) allows you to perform measurements at the instrument’s maximum dynamic range. The preamplifier (FPL1-B22 option) extends the sensitivity level. Thanks to its high sensitivity and low phase noise performance, even small interfering signals next to the carrier can be analyzed.
| Key Features |
| Frequency range 5 kHz to 7.5 GHz |
| SSB phase noise: typ. –108 dBc (1 Hz) at 10 kHz (1 GHz carrier) offset |
| DANL with preamplifier: typ. –166 dBm from 10 MHz to 2 GHz |
| Lightweight with small footprint |
| 40 MHz analysis bandwidth (option) |
| Internal signal generator |
| Specifications | ||||||
FPL1000 Series Spectrum Analyzer | ||||||
| Series Overview | ||||||
| Model | Order Number | Frequency Range | Phase Noise | DANL @ 1GHz | Max. Analysis Bandwidth | Instrument Type |
| FPL1003 | 1304.0004.03 | 5 kHz - 3 GHz | < –105 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) | < –163 dBm/Hz | 40 MHz (FPL1-B40) | Signal and Spectrum Analyzer |
| FPL1007 | 1304.0004.07 | 5 kHz - 7.5 GHz | < –105 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) | < –163 dBm/Hz | 40 MHz (FPL1-B40) | Signal and Spectrum Analyzer |
| Specifications | ||
FPL1000 Series Spectrum Analyzer | ||
| Series Overview | ||
| Model | Order Number | Description |
| FPL1003 | 1304.0004.03 | Signal and Spectrum Analyzer Included Accessories: Power Cable Quick Start Guide |
| FPL1007 | 1304.0004.07 | Signal and Spectrum Analyzer Included Accessories: Power Cable Quick Start Guide |
| Specifications | ||||
FPL1000 Series Spectrum Analyzer | ||||
| Model Overview | ||||
| Model | Order Number | Description | Retrofittable | Comments |
| Options | ||||
| FPL1-B4 | 1323.1902.02 | OCXO reference frequency | Yes | Retrofit in service center |
| FPL1-B5 | 1323.1883.02 | Additional interfaces | Yes | User-retrofittable IF/video/demod out User port Noise source control Power sensor AF output Loudspeaker |
| FPL1-B9 | 1323.1925.03 | Internal generator | No | for R&S®FPL1003 |
| FPL1-B9 | 1323.1925.07 | Internal generator | No | for R&S®FPL1007 |
| FPL1-B10 | 1323.1890.02 | GPIB interface | Yes | User-retrofittable |
| FPL1-B19 | 1304.0427.02 | Second hard disk (SSD) | Yes | User-retrofittable Mounted on PC board Including analyzer firmware |
| FPL1-B22 | 1323.1719.02 | RF preamplifier (3 GHz/7.5 GHz) | Yes | User-retrofittable |
| FPL1-B25 | 1323.1990.02 | 1 dB steps for electronic attenuator | Yes | User-retrofittable |
| FPL1-B30 | 1323.1877.02 | DC power supply 12 V/24 V | Yes | User-retrofittable |
| FPL1-B31 | 1323.1725.02 | Internal lithium-ion battery | Yes | Retrofit in service center; including 2 battery packs and internal charging unit |
| FPL1-B40 | 1323.1931.02 | 40 MHz analysis bandwidth | Yes | User-retrofittable |
| Specifications | |||
FPL1000 Series Spectrum Analyzer | |||
| Model Overview | |||
| Model | Order Number | Description | Comments |
| Firmware | |||
| FPL1-K7 | 1323.1731.02 | AM/FM/PM measurement demodulator | -- |
| FPL1-K9 | 1323.1754.02 | Power sensor measurement with R&S®NRPxx power sensors | supports R&S®NRPxx power sensors |
| FPL1-K30 | 1323.1760.02 | Noise figure and gain measurements | requires R&S®FPL1-B5 |
| FPL1-K40 | 1323.1831.02 | Phase noise measurement application | -- |
| FPL1-K54 | 1323.1783.02 | EMI measurement application | -- |
| FPL1-K70 | 1323.1748.02 | Vector signal analysis | -- |
| FPL1-K70M | 1323.1625.02 | Multi-modulation analysis | requires R&S®FPL1-K70 |
| FPL1-K70P | 1323.1631.02 | BER measurements with PRBS data | requires R&S®FPL1-K70 |
| Software | |||
| FSPC | 1310.0002.03 | License dongle | -- |
| VSE | 1320.7500.06 | Vector signal explorer base software | -- |
| VSE-K70 | 1320.7522.06 | Vector signal analysis | -- |
| VSE-K106 | 1320.7900.06 | EUTRA/LTE NB-IoT | -- |
| Recommended Extras | |||
| FPL1-Z1 | 1323.1960.02 | Protective hard cover | -- |
| FPL1-Z2 | 1323.1977.02 | Soft carrying bag for transport and outdoor operation | -- |
| FPL1-Z3 | 1323.1683.02 | H-style shoulder harness (requires R&S®FPL1-Z2 option) | -- |
| FPL1-Z4 | 1323.1677.02 | Spare lithium-ion battery pack | -- |
| FPL1-Z5 | 1323.1690.02 | Anti-glare display film for outdoor operation | -- |
| FSV-B34 | 1321.3950.02 | Lithium-ion battery charger for charging spare batteries | -- |
| FPL1-Z6 | 1323.1954.02 | 19" rackmount kit | -- |
| Specifications | ||||
| FPC Spectrum Analyzer | ||||
| Model Overview | ||||
| Model | Order Number | Description | Frequency Range | Option Packages |
| Special Offer Packages | ||||
| FPC-COM2 | 1328.6660P99 | Spectrum Analyzer | 5 kHz to 3 GHz | FPC1500: Frequency Upgrade: B22: Preamplifier; K7: Modulation analysis; K42: Vector Network Analysis; K43: Receiver mode; K55: Advanced measurements |
| FPC-IOT1 | 1328.6660P62 | 5 kHz to 1 GHz | R&S®FPC1000: Preamplifier, EMI receiver mode, Cable for R&S®HM6050 | |
| FPL-IOT3 | 1304.0004P64 | 5 kHz to 3 GHz | R&S®FPL1003: Additional interfaces, Internal generator, RF preamplifier, EMI measurement application | |
| FPL-IOT7 | 1304.0004P63 | 5 kHz to 7.5 GHz | R&S®FPL1007: Additional interfaces, Internal generator, GPIB interface, RF preamplifier, EMI measurement application | |
| ZPH-ANR4 | 1321.1211P61 | Handheld Analyzer | 2 MHz to 4 GHz | R&S®ZPH02 one port: GPS support |
| ZPH-FOX4 | 1321.1211P62 | Handheld Analyzer | 2 MHz to 4 MHz | R&S®ZPH12 two ports: Preamplifier, Spectrum analysis measurement application |
| FPH-INH4 | 1321.1111P61 | Handheld Analyzer | 5 KHz to 4 GHz | R&S®FPH02: Preamplifier, Interface analysis application, maps |
| FPH-INH8 | 1321.1111P62 | Handheld Analyzer | 5 kHz to 8 GHz | R&S®FPH06: Preamplifier, Interface analysis application, maps |
| FPC-EMI1 | 1328.66660P61 | Spectrum Analyzer | 5 kHz to 1 GHz | R&S®FPC1000: Preamplifier, EMI receiver mode, Cable for R&S®HM6050 |
| FPL-EMI3 | 1304.0004P61 | Spectrum Analyzer | 5 kHz to 3 GHz | R&S®1003: Additional interfaces, Internal generator, RF preamplifier, EMI measurement application |
| FPL-EMI7 | 1304.0004P62 | Spectrum Analyzer | 5 kHz to 7.5 GHz | R&S®FPL1007: Additional interfaces, Internal generator, GPIB interface, RF preamplifier, EMI measurement application |
