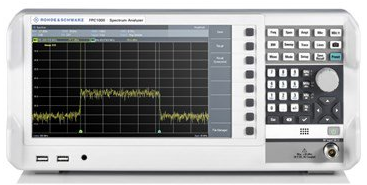

Outstanding quality and innovation does not have to come with a high price tag. The R&S FPC spectrum analyzer provides unexpected performance at a budget-friendly price. It is engineered in Germany and designed to the same quality standards as high-end instruments.
Investment protection, high resolution and easy control – these traits make the R&S FPC spectrum analyzer a perfect tool for university laboratories, research institutions as well as production and service facilities. The R&S FPC has the value of three. It is the only spectrum analyzer on the market that provides the value of three instruments. Incidentally, these are the three most commonly used instruments on an RF engineer's workbench, for instance in IoT device development.
The R&S FPC is a spectrum analyzer that provides investment protection through software frequency upgrade capability. It features class-leading RF performance engineered in Germany. In addition, PC and mobile remote control options are available.
The R&S FPC is a vector network analyzer that utilizes an integrated VSWR bridge to achieve one-port vector network analysis, with a Smith chart display available. Having an integrated VSWR bridge means there is no need to mount/dismount an external bridge during test operation.
The R&S FPC is a signal generator due to the unique independent source principle. Not only does it provide standard tracking generator functionality, it can also be used in free or coupled CW modes. By combining the value of three instruments, the R&S FPC is truly unique. The advantages of this three-in-one concept reach further than having only one bench space occupied. A single instrument also means that to obtain the specified measurement performance, only a single investment and a single calibration are required.
Key Features:
- RF performance engineered in Germany
- 10.1" WXGA (1366 × 768 pixel) display – largest and highest resolution in its class
- Frequency range from 5 kHz to 1 GHz, keycode upgradable to 2 GHz/3 GHz
- Resolution bandwidth settings down to 1 Hz
- Tracking generator and independent CW signal generator
- Built-in VSWR bridge
- One-port vector network analyzer with Smith chart display
- Wi-Fi-enabled, supported by included remote control software
- 3 year standard warranty
