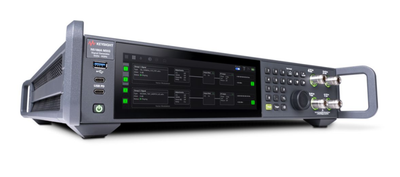

Keysight Technologies N5186A

MXG Vector Signal Generator; 9 kHz to 3 / 6 / 8.5 GHz

Model

N5186A

Product Family

RF & Microwave Signal Generators

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

RF & Microwave Signal GeneratorsVector Signal Generators

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

Evolving technologies in wireless communications and aerospace defense applications demand higher frequency coverage using complex modulation schemes like multiple-input multiple-output (MIMO), beamforming, and multiplexing to maximize data throughput. The MXG vector signal generator provides consistent and repeatable results ideal for wideband multichannel testing. The MXG’s custom DAC application-specific integrated circuits (ASICs) use direct digital synthesis (DDS) to deliver precise signals to minimize distortion and meet the evolving standards for component and module design.

Key Features:

Supports military radio comms emulation and MIMO test with 4 unique outputs in a 2U box.

Covers frequency range from 9 kHz to 8.5 GHz with best-in-class EVM, ACPR, and phase noise.

Delivers 960 MHz RF modulation bandwidth using DDS technology.

Maximizes test accuracy and frequency response with a built-in reflectometer.

Generates wireless standards-based signals with Keysight PathWave signal generation software.

Specifications
Bandwidth Options:	250 MHz, 500 MHz, 960 MHz
Baseband Generator Mode:	Waveform playback
Form Factor:	Benchtop
Frequency:	9 kHz to 8.5 GHz
Frequency Options:	3 / 6 / 8.5 GHz
Harmonics @1 GHz:	-35 dBc (meas)
Maximum Frequency:	8.5 GHz
Maximum Modulation Bandwidth:	960 MHz
Non-Harmonics @1 GHz:	-85 dBc (meas)
Output Power @1 GHz:	+27 dBm (meas)
Performance Level:	◆◆◆◆◇◇
Phase Noise @1 GHz (20 kHz offset):	-147 dBc/Hz (10 kHz offset) (meas)
Sweep Mode:	Not available
Type:	Vector
Waveform Playback Memory:	2048 MSa
