Keysight Technologies N5193A-CC1

100-pin I/O Interface

Model

N5193A-CC1

Product Family

RF & Microwave Signal Generators

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

RF & Microwave Signal GeneratorsRF Special Signal Sources

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

The UXG X-Series Agile Signal Generators let you create complex scenarios when you need them. Off the shelf, the UXG is a powerful building block, whether you want a dependable LO or a scalable threat simulator. By blurring the lines between analog and vector technologies, the UXG accelerates the integration of new intelligence into up-to-date signal scenarios. With the UXG, you can generate increasingly complex simulations and get closer to reality.

Key Features

Cover a wide range of EW, radar, and antenna-test requirements up to 44 GHz

Use direct digital synthesis (DDS), so the UXG can update frequency, amplitude, and phase settings in as little as 170 ns, with built-in phase repeatability

Simulates advanced radar signals, generating narrow pulses with 90 dB on/off ratio and chirps as wide as 10 to 25 percent of the carrier frequency

Quickly characterize antennas over a wide frequency range with fast frequency tuning: 100-µs switching is standard and, for more demanding needs, speeds of 1 µs and 370 ns are available as options

Accept pulse descriptor words (PDWs) to quickly and efficiently generate long pulse trains while allowing individual phase control

Generate shaped pulses and wideband linear or non-linear chirps

Benefits

Creating Multi-Emitter Scenarios for Radar and Electronic Warfare Testing

Realistic testing of radar and electronic warfare systems depends on the generation of signals that accurately simulate multi-emitter environments consisting of thousands of emitters and millions of pulses per second, all arriving from multiple directions.

Traditionally, this has required the use of large, complex systems not readily available to R&D engineers.

New technology built into commercial, off-the-shelf (COTS) “agile signal generators” provides an integrated, lower-cost solution that fits on an engineer’s test bench.

This technology also enables developers to generate increasingly complex simulations that get closer to reality and, ultimately, provide deeper confidence in EW system performance.

Pathwave Signal Generation Software

Create Performance-Optimized Reference Signals – Create calibrated signals, validated by Keysight, that conform to industry standards to help enhance the characterization and verification of your devices

Validate Component, Transmitter, and Receiver Testing – Easily create and playback customized waveforms for component testing with virtually distortion–free test signals

Ensure Designs Meet Latest Standards – Trust that the signals you generate are current with the latest emerging technologies

Speed Signal Creation and Reduce Simulation Time – Accelerate your testing with graphical tree–style navigation

Benefits
UXG Agile Signal Generator	UXG Agile Vector Adapter
Simulates increasingly complex signal environments for radar, EW, and antenna test	Simulates increasingly complex signal environments for radar and EW with enhanced realism and greater confidence
Tests sooner and increases confidence in EW systems by generating signal simulations	Rapidly adaptable to provide multiple channels and port configurations
Uses pulse descriptor words (PDWs) to generate long pulse trains and individually control pulse characteristics	Ensures coherency across multiple sources with calibration of amplitude, phase, and time
Accurately simulates multi-threat environments	Modulation width is 1.6 GHz at all frequencies
Modulation width is typically 10% of carrier frequency Fixed pulse rise and fall times	Shaped pulse rise and fall times

Specifications
Fast Control Port (FCP) Interface Modules
Module Overview
Options

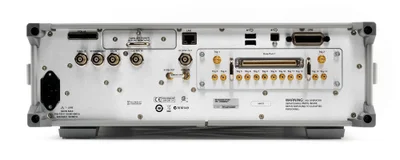

Option CC1 I/O Interface
Data Port	100 pin LVDS
Triggers and Markers	2 SMA(f) and 12 SMB(m)
Data Format	Binary
Controllable Parameters	Frequency Amplitude Phase Phase coding Band Pulse Chirp FM deviation ФM deviation Depending on installed options
Option CC2 I/O Interface
Data Port	50 pin
Triggers and Markers	2 SMA(f)
Data Format	Binary coded decimal (BCD)
Controllable Parameters	Frequency, FM deviation, or 16 Chirp rates
Option CC4 I/O Interface
Data Port	2 SFP+ transceivers
Triggers and Markers	2 SMA(f) bidirectional and 12 SMB(m) (7 bidirectional plus 5 duplicate output-only ports
Data Format	Keysight data streaming protocal (KDSP)
Controllable Parameters	Frequency Amplitude Phase Phase coding Band Pulse Chirp FM deviation ФM deviation Depending on installed options

Specifications
Fast Control Port (FCP) Interface Modules
Option	Description
AT2	Option AT2 replaced the previous attenuator option AT1 on instruments with s/n ≥ 5646xxxx. Option AT2 offers improved performance in the 25.6 to 40 GHz range. Option AT1 performance specifications can be found on pages 7 to 10 in the N5193A data sheet
SS4	Option SS4 replaced the previous switching speed option SS2 on instruments with s/n ≥ 5646xxxx. Option SS4 offers improved performance for Type 4 frequency transitions. Option SS4 performance specifications can be found on page 11 in the N5193A data sheet
CC4	Option CC4 replaced the previous option CC3 10 GB Ethernet I/O card. Option CC4 is a form/fit/functional replacement for CC3 and offers additional triggering ports.
U01	Option U01 added support for triggered BPSK with firmware version A.01.40
U02	Option U02 added support for CW Chirp with firmware revision A.01.60.
U03	Option U03 enabled narrowband chirps in List, FCP, and Streaming mode without requiring options WC1 or WC2 for full frequency range with firmware revision A.01.70.
U04	Option U04 added the ability to play non-linear chirps (MESG waveforms only) and increased Chirp Rate resolution when using CC1 rear-panel board with firmware revision A.01.75.
