Virginia Diodes WR4.3SGX-M

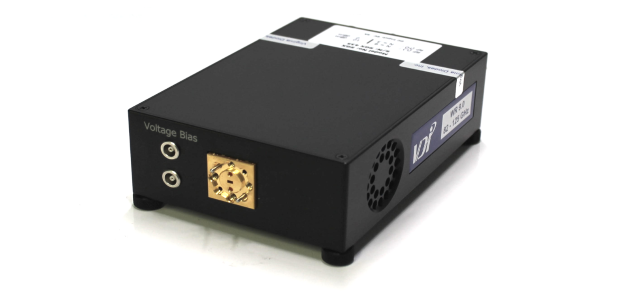

Mini Signal Generator Extension Module; 170 - 260 GHz

Model

WR4.3SGX-M

Product Family

RF & Microwave Power

Manufacturer

Virginia Diodes

Configured models contain the following attributes:

RF & Microwave PowerNoise & OtherMicrowave Accessories

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

Virginia Diodes, Inc. (VDI) Signal Generator Extension (SGX) modules provide high performance frequency extension of microwave signal generators into the THz range. VDI SGX modules offer full waveguide band coverage and are available from WR15 (50 to 75 GHz) to WM-164 (1.1 to 1.5 THz) with additional bands under development. This turn-key, sweepable solution is compatible with any microwave signal generator that meets the input frequency and power requirements.

Key Features

Full waveguide band coverage

- High test port power

- Unwanted harmonic content is better than -20dBc typical

- TTL controlled ON/OFF modulation up to ~kHz

- Voltage controlled RF Power Control

- 8" x 5" x 3" enclosure suitable for standalone operation or mounting on optical tables and probe stations

- 9V DC power supply included

Specifications
VDI Model: WR4.3SGX-M Mini Signal Generator Extension Module (SGX)
Feature	Parameter
RF Frequency Band (GHz)	170 GHz to 260
RF Output Flange (UG-387/U-M)	WR-4.3
Output Power (Typical/Minimm, dBm)	8 / 3
Multiplication Factors (Low/High)	18 / 6
Low Frequency RF Input (GHz)	9.44 - 14.44
High Frequency RF Input (GHz)	28.33 - 43.33
Typical Dimensions (LxWxH, in)	5 x 3.5 x 1.5
