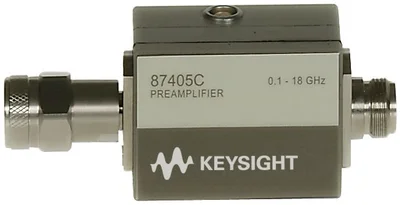

Keysight Technologies 87405C

Configure Unit

Available to Buy Online

View Configurations

Preamplifier; 100 MHz to 18 GHz

Model

87405C

Product Family

RF & Microwave Power

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

RF & Microwave PowerNoise & OtherAmplifiers > 1GHz+16dBm25dB10GHz <= 20GHz10MHz <= 100MHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
Output Power	+16dBm
Gain	25dB
High Frequency (range)	10GHz <= 20GHz
Low Frequency (range)	10MHz <= 100MHz

Product Overview

Exceptional gain (25 dB) and flatness (±1.5 dB) combined with a probe-power bias connection which eliminates the need for an additional DC power supply, makes these preamplifiers the ideal choice for spectrum analyzer or stand alone applications.

Key Features:

4.5 dB noise figure and 25 dB gain helps improve the dynamic range and sensitivity of your test equipment
High 15 dBm P_1dB increases available power from network and spectrum analyzers
DC Bias Volt/Amp: +15 V at 140 mA (nominal); -12.6V to -15V at 3mA (nominal)
Rugged, portable design for ease of use in the field
Probe-power bias connection eliminates the need for an additional power supply

Specifications
Preamplifier
Options and Accessories
Part Number	Description
87405C-101	Cable assembly - banana plug
87405C-102	Cable assembly - Power Probe cable
87405C-103	Cable assembly - 15 pin bias cable
87405C-ABA	English user manual, printed
