Rohde & Schwarz ZNA26 (1332.4500.22)
Model
ZNA26 (1332.4500.22)Product Family
RF & Microwave Network AnalyzersManufacturer
Rohde & SchwarzConfigured models contain the following attributes:
RF & Microwave Network AnalyzersNetwork Analyzers >=20GHz20GHz <= 50GHz1MHz <= 10MHz3.5mm-Male (Jack)BenchtopLet us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
| Attribute | Value |
|---|---|
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 3.5mm-Male (Jack) |
| Form Factor | Benchtop |
Product Overview

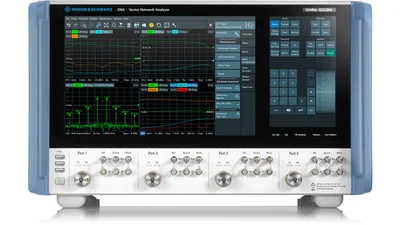

The ZNA vector network analyzers are the high-end series of the R&S VNA portfolio: excellent RF-performance is combined with a wide range of software features and a unique hardware concept. The touch-only operation together with the DUT-centric approach makes the ZNA a powerful, universal and compact measurement system for characterizing both, passive and active devices.
The ZNA features exceptional stability, low trace noise and excellent raw data, making it a perfect choice for development and production applications that require high accuracy, e.g. for developing and producing components and modules for A&D and satellite applications.
The ZNA offers four internal, phase-coherent sources, allowing independent control of the signal's frequency at each port as well as phase measurements on mixers. It provides two internal LO sources, a true multichannel receiver architecture, pulse generators and modulators, an internal combiner and comprehensive trigger and synchronization capabilities. These hardware features make the ZNA a universal, compact test system for active and passive device characterization. Even intermodulation measurements on mixers and receivers can be performed without external signal generators, minimizing test time and simplifying test configuration.
| Key Features |
| 10 MHz to 26.5/43.5/50/67 GHz (ZNA26/43/50/67) |
| Two or four port models available |
| Excellent RF-performance |
| Up to four integrated sources |
| Unique and intuitive touch-only operation |
| Benefits | |
Excellent RF-Performance (High performance and fast speed for advanced measurement tasks) | - Precise measurements on active and passive components. - Wide dynamic range to characterize even high-blocking devices under test. - Excellent stability, low trace noise and outstanding raw system data for high reliability. - High accuracy suitable also for metrology applications. - Wide power sweep range. |
Versatile Hardware Options (Powerful and universal measurement system) | - Optional direct channel access for wide dynamic range, external test setups and system integration. - Up to four internal phase-coherent sources for high flexibility and short sweep times. - Up to two internal receiver LOs for fast mixer measurements with low trace noise. - Up to eight independent receivers for reliable multi-channel phase measurements. - Up to four internal pulse modulators and pulse generators. - Optional source and receiver step attenuators for expanding the usable power range. |
Wide Range of Software Options (Challenging measurements configured intuitively) | - Time domain analsis and extended features as eye diagram for signal integrity. - Scalar mixer measurements and frequency converting measurements. - Vector mixer measurements for advanced mixer measurements. - Frequency converting measurements on mixers/converters without LO access. - Spectrum analysis mode for an extensive analysis of the device under test. - Real Time Measurement uncertainty calculation plus verification measurement (METAS VNA Tools) |
Unique Operational Concept (Intuitive touch-based operation with sophisticated user interface) | - Two independent touchscreens for convenient operation. - Display of user-selected content (e.g. SCPI commands) on smaller screen possible. - Efficient operation with multi-touch gestures. - Free configuration of channels, diagrams with drag-and-drop. - DUT-centric approach that adapts to the user's requirements and optimizes the settings. - Extensive evaluation features for detailed analysis of measurement traces. |
Extension Units (Advanced measurement capabilities) | - Frequency extension p to 1.1 THz with the ZVA-Z and ZC converter families. |
Accessories for a Complete Solution (Different accessories for calibration, verification and different measurements) | - Mechanical calibraton and verification kits. - Automatic calibration units. - Inline calibration units for in-situ refresh of calibration data. - Test cables. - Torque wrenches. - Support of NRP power sensor family. |
| Specifications | ||||
ZNA Series Vector Network Analyzers | ||||
| Model Overview | ||||
| Model | Order Number | Ports | Frequency | Connectors |
| ZNA26 | 1332.4500.22 | 2 ports | 10 MHz to 26.5 GHz | 3.5 mm(m) |
| ZNA26 | 1332.4500.24 | 4 ports | 10 MHz to 26.5 GHz | 3.5 mm(m) |
| ZNA43 | 1332.4500.42 | 2 ports | 10 MHz to 43.5 GHz | 2.92 mm(m) |
| ZNA43 | 1332.4500.43 | 2 ports | 10 MHz to 43.5 GHz | 2.4 mm(m) |
| ZNA43 | 1332.4500.44 | 4 ports | 10 MHz to 43.5 GHz | 2.92 mm(m) |
| ZNA43 | 1332.4500.45 | 4 ports | 10 MHz to 43.5 GHz | 2.4 mm(m) |
| ZNA50 | 1332.4500.52 | 2 ports | 10 MHz to 50 GHz | 2.4 mm(m) |
| ZNA50 | 1332.4500.54 | 4 ports | 10 MHz to 50 GHz | 2.4 mm(m) |
| ZNA67 | 1332.4500.62 | 2 ports | 10 MHz to 67 GHz | 1.85 mm(m) |
| ZNA67 | 1332.4500.64 | 4 ports | 10 MHz to 67 GHz | 1.85 mm(m) |
| Specifications | ||
| ZNA-Kxx | ||
| Options Overview | ||
| Model | Order Number | Description |
| ZNA-K1 | 1332.5320.02 | Spectrum analyzer mode |
| ZNA-K2 | 1332.5336.02 | Time domain analysis (TDR) |
| ZNA-K4 | 1332.5342.02 | Scalar mixer and arbitrary frequency-converting measurements |
| ZNA-K4 | 1332.5342.07 | Scalar mixer and arbitrary frequency-converting measurements |
| ZNA-K4 | 1332.5342.13 | Scalar mixer and arbitrary frequency-converting measurements |
| ZNA-K5 | 1332.5359.02 | Vector corrected converter measurements (without reference mixer and phase reference)¹ |
| ZNA-K5 | 1332.5359.07 | Vector corrected converter measurements (without reference mixer and phase reference)¹ |
| ZNA-K6 | 1332.5413.02 | Phase coherent source control |
| ZNA-K7 | 1332.5371.02 | Measurements on pulsed signals² |
| ZNA-K8 | 1332.5388.02 | Millimeterwave converter support |
| ZNA-K9 | 1332.5394.02 | Group delay measurements on frequency converters without LO access³ |
| ZNA-K9 | 1332.5394.07 | Group delay measurements on frequency converters without LO access³ |
Note:
¹ Requires R&S®ZNA-K4.
² Requires R&S®ZNA-K17.
³ Requires R&S®ZNA-K4, R&S®ZNAxx-B16, and an R&S®ZNAxx-Z9 cable set, or R&S®ZNA-B213 internal combiner, for generating a two-tone signal. An R&S®ZNA (4 ports) is strongly recommended.
