Schwarzbeck NNBM 8124-200 BNC

Single Path Vehicle AMN (LISN); N(f) Connector

Model

NNBM 8124-200 BNC

Product Family

RF & Microwave Network Analyzers

Manufacturer

Schwarzbeck

Configured models contain the following attributes:

RF & Microwave Network AnalyzersEMC / EMI / RFI Analyzers100MHz <= 1GHz1kHz <= 100kHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
High Frequency (range)	100MHz <= 1GHz
Low Frequency (range)	1kHz <= 100kHz

Product Overview

The main application of the unsymmetrical single path AMN (artificial mains network) NNBM 8124-200 is the measurement of interference voltage in vehicles, aircrafts and ships in the HF-VHF range 0.1 –150 MHz. The
NNBM 8124-200 can also be used for bulk current injection (BCI) testing or for transient measurements
according to ISO 7637-2.

The impedance characteristic is realized according to CISPR 16 / 25 and MIL-STD-461F (5 µH + 1 Ω) || 50 Ω. With
the optional external capacitor CAP 10-200 it can be used for DO-160 and DEF-STAN-59 as well.

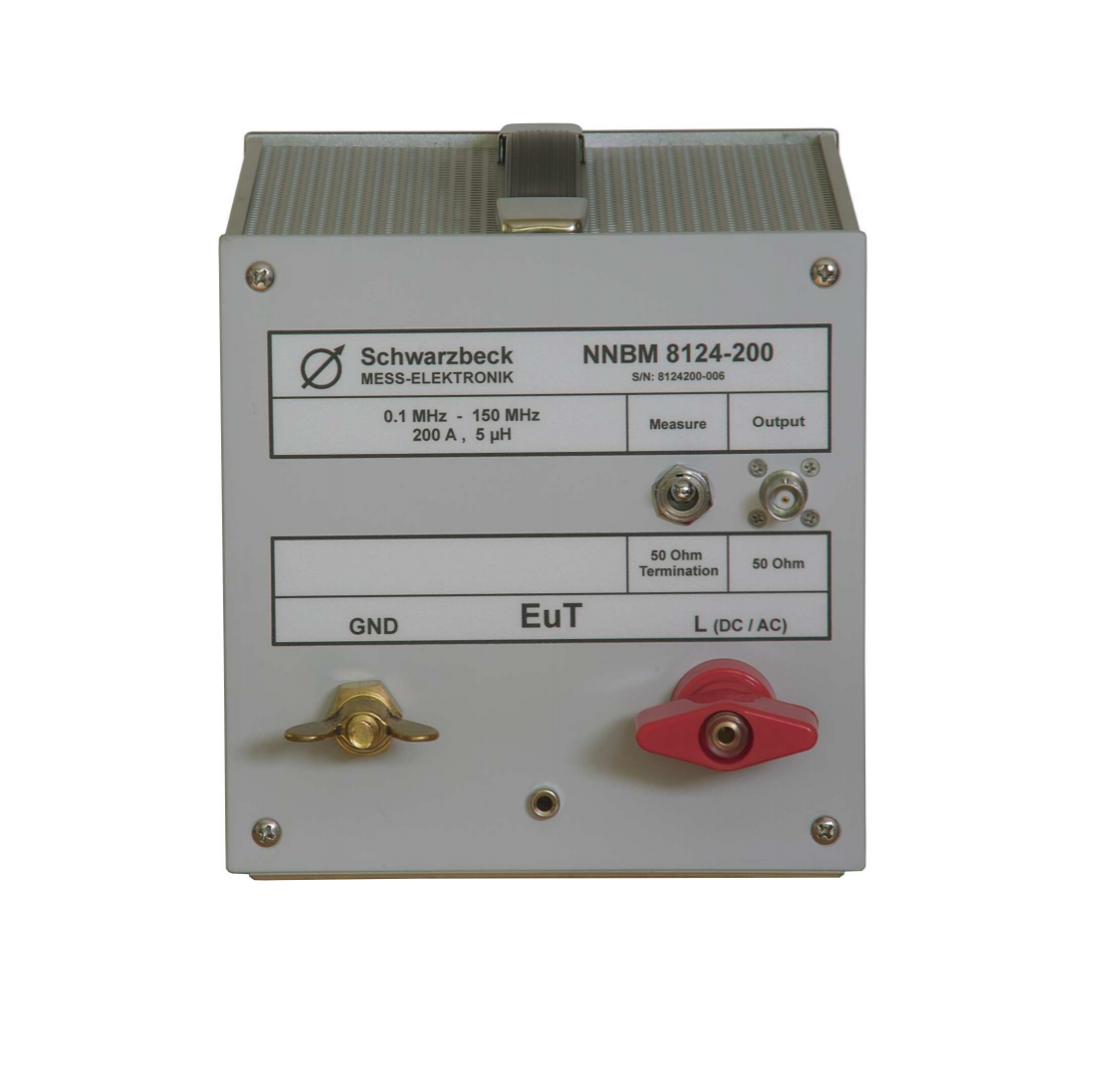

The continuous current rating is 200 A, for short time more than 280 A are possible. The EuT is connected to the wing terminals at the front panel. The mains terminals are on the backside.

Key Features

Automotive LISN acc. CISPR 25 and ISO 7637-2 and for BCI-Testing

Impedance (5µH + 1 Ohm) || 50 Ohm

Max.200 A

With switchable 50 Ohm load and switchable 1 mikrofarad capacitor at mains side, single path

BNC female connector

Note:

Option N connector

N-female connector instead of BNC.
