Rohde & Schwarz ZN-Z135 (1328.8157.02)
Available to Buy Online
View Configurations
Model
ZN-Z135 (1328.8157.02)Product Family
RF & Microwave Network AnalyzersManufacturer
Rohde & SchwarzConfigured models contain the following attributes:
RF & Microwave Network AnalyzersCal KitsLet us help you with your exact configuration
Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview

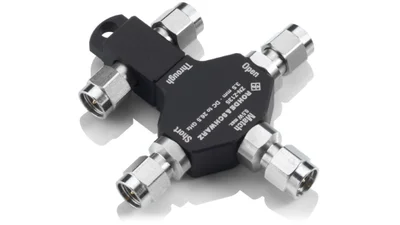

Supporting the common connectors types type N, 3.5mm, 2.92mm, and available in male and female, the R&S ZN-Z1xx calibration kit series are the smart solution for daily VNA calibration. The special model ZN-Z129E even extends the frequency range for 2.92mm connectors up to 43.5 GHz.
The compact 4-in-1 design, the small lightweight form factor allow to have them always at hand, and to have always the full set of calibration standards ready. For a traceable documentation of the calibration and VNA measurement, there are versions of each kit which are delivered with DCV calibration documentation, or which are certified in terms of accredited calibration procedure.
| Key Features |
| Open, Short, Match, Through as compact unit |
| Separate versions for male or female kits |
| Available for type N, 3.5mm, 2.92mm connector types |
| 2.92mm “E” version ip to 43.5 GHz |
| Male-male and female-female through for non-insertable devices |
| Benefits | |
Convenient Handling (Compact devices with all standards integrated) | The ZN-Z1xx calibration kits combine through, open, short, and match in a compact unit, which is small and lightweight. Thus making sure that the complete set of calibration standards is always at hand |
High Resulting Accuracy (Economy calibration kits combined with high accuracy) | Available at an affordable price, the calibration kits allow for remarkable effective data. Combined with corresponding VNA characteristics, considerable accuracy is achieved |
Extended Frequency Range (Frequency range up to 43.5 GHz with 2.92 mm E-model) | The ZN-Z129E kit provides an extended frequency range up to 43.5 GHz with 2.92mm connectors. (supporting the extended frequency range of VNAs with 2.92mm connectors up to 43.5 GHz) |
| Specifications | ||||||
ZN-Z1xx Network Analyzer Calibration Kits Economy | ||||||
| Model Overview | ||||||
| Model | Order Number | Type | Frequency Range | Connector Type | Calibration Standards | Description |
| ZN-Z170 | 1328.8163.02 | Calibration Kit | 0 Hz to 18 GHz | N (m) | Open Short Match Through combination | Economy |
| ZN-Z170 | 1328.8163.03 | Calibration Kit | 0 Hz to 18 GHz | N (f) | Open Short Match Through combination | Economy |
| ZN-Z170 | 1328.8163.12 | Calibration Kit (incl. DCV) | 0 Hz to 18 GHz | N (m) | Open Short Match Through combination | Economy |
| ZN-Z170 | 1328.8163.13 | Calibration Kit (incl. DCV) | 0 Hz to 18 GHz | N (f) | Open Short Match Through combination | Economy |
| ZN-Z170 | 1328.8163.22 | Calibration Kit (incl. ACA) | 0 Hz to 18 GHz | N (m) | Open Short Match Through combination | Economy |
| ZN-Z170 | 1328.8163.23 | Calibration Kit (incl. ACA) | 0 Hz to 18 GHz | N (f) | Open Short Match Through combination | Economy |
| ZN-Z135 | 1328.8157.02 | Calibration Kit | 0 Hz to 26.5 GHz | 3.5 mm (m) | Open Short Match Through combination | Economy |
| ZN-Z135 | 1328.8157.03 | Calibration Kit | 0 Hz to 26.5 GHz | 3.5 mm (f) | Open Short Match Through combination | Economy |
| ZN-Z135 | 1328.8157.12 | Calibration Kit (incl. DCV) | 0 Hz to 26.5 GHz | 3.5 mm (m) | Open Short Match Through combination | Economy |
| ZN-Z135 | 1328.8157.13 | Calibration Kit (incl. DCV) | 0 Hz to 26.5 GHz | 3.5 mm (f) | Open Short Match Through combination | Economy |
| ZN-Z135 | 1328.8157.22 | Calibration Kit (incl. ACA) | 0 Hz to 26.5 GHz | 3.5 mm (m) | Open Short Match Through combination | Economy |
| ZN-Z135 | 1328.8157.23 | Calibration Kit (incl. ACA) | 0 Hz to 26.5 GHz | 3.5 mm (f) | Open Short Match Through combination | Economy |
| ZN-Z129 | 1328.8140.02 | Calibration Kit | 0 Hz to 40 GHz | 2.92 mm (m) | Open Short Match Through combination | Economy |
| ZN-Z129 | 1328.8140.03 | Calibration Kit | 0 Hz to 40 GHz | 2.92 mm (f) | Open Short Match Through combination | Economy |
| ZN-Z129 | 1328.8140.12 | Calibration Kit (incl. DCV) | 0 Hz to 40 GHz | 2.92 mm (m) | Open Short Match Through combination | Economy |
| ZN-Z129 | 1328.8140.13 | Calibration Kit (incl. DCV) | 0 Hz to 40 GHz | 2.92 mm (f) | Open Short Match Through combination | Economy |
| ZN-Z129 | 1328.8140.22 | Calibration Kit (incl. ACA) | 0 Hz to 40 GHz | 2.92 mm (m) | Open Short Match Through combination | Economy |
| ZN-Z129 | 1328.8140.23 | Calibration Kit (incl. ACA) | 0 Hz to 40 GHz | 2.92 mm (f) | Open Short Match Through combination | Economy |
| ZN-Z129E | 1328.8170.02 | Calibration Kit | 0 Hz to 43.5 GHz | 2.92 mm (m) | Open Short Match Through combination | Economy |
| ZN-Z129E | 1328.8170.03 | Calibration Kit | 0 Hz to 43.5 GHz | 2.92 mm (f) | Open Short Match Through combination | Economy |
| ZN-Z129E | 1328.8170.12 | Calibration Kit (incl. DCV) | 0 Hz to 43.5 GHz | 2.92 mm (m) | Open Short Match Through combination | Economy |
| ZN-Z129E | 1328.8170.13 | Calibration Kit (incl. DCV) | 0 Hz to 43.5 GHz | 2.92 mm (f) | Open Short Match Through combination | Economy |
| ZN-Z129E | 1328.8170.22 | Calibration Kit (incl. ACA) | 0 Hz to 43.5 GHz | 2.92 mm (m) | Open Short Match Through combination | Economy |
| ZN-Z129E | 1328.8170.23 | Calibration Kit (incl. ACA) | 0 Hz to 43.5 GHz | 2.92 mm (f) | Open Short Match Through combination | Economy |
