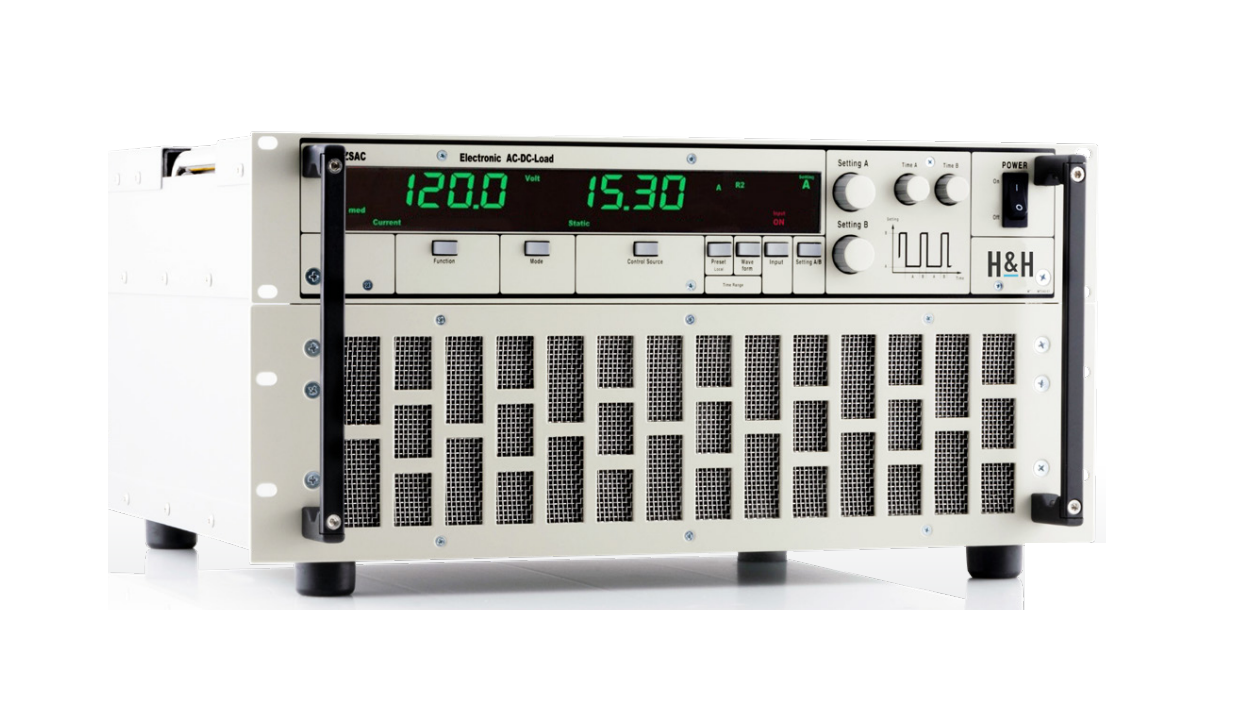

Hocherl & Hackl ZSAC1444

AC/DC Electronic Load; 440V, 5A, 1.4KW

Model

ZSAC1444

Product Family

Power Supplies / Electronic Loads

Manufacturer

Hocherl & Hackl

Configured models contain the following attributes:

Power Supplies / Electronic LoadsElectronic Loads35A1.4kW440V

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Attribute	Value
Phases	3
Maximum Current	5A
Maximum Power	1.4kW
Maximum Voltage	440V

Product Overview

The AC load of the ZSAC series is designed for both AC and DC applications. In remote control mode, the ZSAC load can be programmed with various waveforms such as harmonic, phase cut or crest factor currents. Phase angle adjustment is combined with crest factor adjustment.

Key Features

Frequency range up to 800 Hz
As single phase version and for 3-phase
Star and delta connection possible
Input voltages up to 440 V
Power 400 W ... 21,000 W
Operating modes CC, CR
Programmable waveform
Dynamic loads
Phase angle adjustment combined with crest factor
Harmonics, phase control
SCPI programming with measurement function
Electronic protection
Isolated measurement outputs for voltage and current
Isolated analog control input
