Chroma 63600-5
Model
63600-5Product Family
Power Supplies / Electronic LoadsManufacturer
ChromaConfigured models contain the following attributes:
Power Supplies / Electronic LoadsElectronic Loads600V2kWNot ApplicableLet us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
| Attribute | Value |
|---|---|
| Maximum Voltage | 600V |
| Maximum Power | 2kW |
| Maximum Current | Not Applicable |
Product Overview

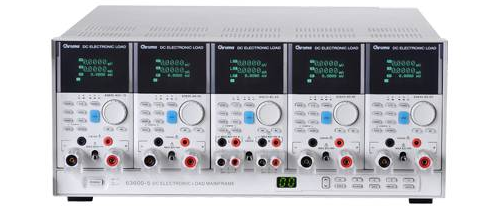

Chroma’s 63600 Modular DC Electronic Load is designed for testing multi-output AC/DC power supplies, DC/DC converters, chargers, batteries, adapters, and power electronic components. They are excellent for use in research, development, production, and incoming inspection applications.
The 63600 DC Electronic Load can draw its rated current under very low voltage (0.4V typical). This unique feature guarantees the best loading performance for modern Point-of-Load conditions and fuel cells.
10-in-1 provide 10 channels from five 100Wx2 channel loads within a 4U height mainframe to let users test various kind of power supplies such as Adapter/Charger/Monitor Power/ATX PSU/Server PSU/Battery/Fuel cell etc. In addition, the 4U height mainframe is able to install five 400W single channel modules in parallel for up to 2000W to test server power and fuel cells easily. The high power density design saves benchtop or rack space as well as total cost.
To comply with the trend of high power for PC power supplies, the new 400W module is able to satisfy the test requirements for +12V1 and +12V2. Only one 4U mainframe can have 300W(+3.3V), 300W(+5V), 400W(+12V1), 400W(+12V2) and 100W Dual(-12V/+5VSB) in plan for best load combinations to meet the up-to-date PC power supply test solutions.
| Key Features |
| Max. Power : 100W x 2(Dual), 300W, 400W |
| Voltage Range : 80V, 150V, 600V |
| 5 module mainframe Max. 2000W, load modules up to 400W/ea |
| Up to 10 channels in one mainframe, fit for testing multiple output SMPS |
| 0.4V @ 80A (Typical) low voltage operating characteristics |
| Flexible CC, CR, CV and CP operation modes |
| CZ mode for turn on capacitive load simulation (up to 50,000uF capacitance emulation) |
| Parallel mode for high current and power application up to 2kW |
| Multi Channel synchronous control |
| Real time power supply load transient response simulation and Vpk+/- measurement |
| User programmable 100 sequential front panel input status for user-friendly operating |
| Over current protection (OCP) testing function |
| Precision voltage and current measurement |
| Precision high speed digitizing measurement/ data capture |
| Voltage, Current and Pmax measurement for OCP/OLP testing |
| Timing measurement for batteries |
| Short circuit simulation |
| Self-test at power-on |
| Full Protection : OC, OP, OT protection and OV alarm |
| Ethernet, USB and GPIB interfaces |
| User Defined Waveforms |
| Specifications | ||||
63600 Series Modular DC Electronic Load | ||||
| Model Overview | ||||
| Model | 63600-1 *¹ | 63600-2 | 63600-5 | 63601-5 *² |
| Number of Slots | 1 Slot | 2 Slots | 5 Slots | 5 Slots |
| Operating Temperature | 0~40˚C | 0~40˚C | 0~40˚C | 0~40˚C |
| Input Rating | 1Ø 100~115V±10% VLN 1Ø 190~230V±10% VLN Switchable, 47~63Hz | 1Ø 100~115V±10% VLN 1Ø 190~230V±10% VLN Switchable, 47~63Hz | 1Ø 100~115V±10% VLN 1Ø 190~230V±10% VLN Auto Range, 47~63Hz | 1Ø 100~115V±10% VLN 1Ø 190~230V±10% VLN Auto Range, 47~63Hz |
Mainframe Dimensions (HxWxD) | 177x70.22x554.9mm 7x2.76x21.8 inch | 177x210x554mm 7.0x8.27x21.8 inch | 177x447x554mm 7.0x17.6x21.8 inch (Full Rack) | 177x447x554mm 7.0x17.6x21.8 inch (Full Rack) |
| Weight | 7.5kg 16.53lbs | 11.5kg 23.35lbs | 15.6kg 34.39lbs | 15.6kg 34.39lbs |
Note:
*¹ None digital interface option
*² The dual channel module 63610-80-20 can only be placed at the rightmost slot.
| Specification | |
63600 Series Modular DC Electronic Load | |
| Model Overview | |
| Model | Description |
| Mainframe | |
| 63600-1 | 63600 mainframe for single module |
| 63600-2 | 63600 mainframe for 2 modules |
| 63600-5 | 63600 mainframe for 5 modules (Max. 10 channels) |
| 63601-5 | 63600 mainframe for 5 modules |
Modules (Only one slot for dual channel load module, max. 6 channels) | |
| 63610-80-20 | DC Load Module, 80V/20A/100Wx2 |
| 63630-80-60 | DC Load Module, 80V/60A/300W |
| 63630-600-15 | DC Load Module, 600V/15A/300W |
| 63640-80-80 | DC Load Module, 80V/80A/400W |
| 63640-150-60 | DC Load Module, 150V/60A/400W |
| Accessories | |
| A636000 | GPIB interface for 63600-2/63600-5/63601-5 mainframe |
| A636001 | Ethernet interface for 63600-2/63600-5 mainframe |
| A636003 | External signal board (test pin) for 63600-2/63600-5/63601-5 mainframe |
| A636005 | External signal board (BNC) for 63600-2/63600-5/63601-5 mainframe |
| A636007 | Rack mounting kit for 63600-2 mainframe |
| A636008 | Rack mounting kit for 63600-5/63601-5 mainframe (for Europe only) |
| A636010 | Ethernet interface for 63601-5 mainframe |
| A632006 | NI USB-6211 bus-powered multifunction DAQ |
