Keysight Technologies 66101A

DC Power Module; 8V 16A

Model

66101A

Product Family

Power Supplies / Electronic Loads

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Power Supplies / Electronic LoadsDC Power Supplies- Modular8V16A128W1

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
Maximum Voltage	8V
Maximum Current	16A
Maximum Power	128W
Channel/Port Count	1

Product Overview

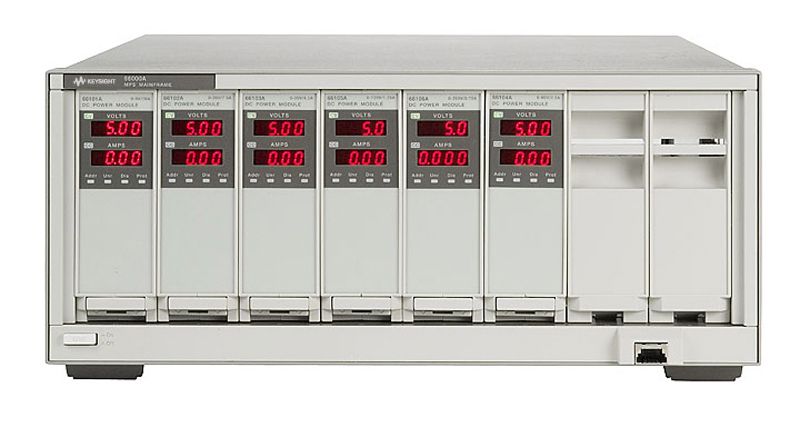

eysight high performance DC power supplies offer speed and accuracy for test optimization. The modular power system, 1200 W per mainframe, GPIB 66100 series permits up to 8 outputs of 150 W per output in 4U of rack space; reconfigure fast with easily swappable modules; fast, low-noise outputs; and LIST mode and advance triggering system.

The Keysight 128W, GPIB, module output 66101A is a flexible modular supply designed for automated testing that helps meet changing requirements in ATE and production test with a modular design that conserves rack space and simplifies system cabling and assembly.

Key Features
Output Ratings	Output voltage: 0 to 8 V Output current: 0 to 16 A Maximum power: 128 W
Programming Accuracy at 25°C ±5°C	Voltage 0.03% + 3 mV Current 0.03% + 6 mA
Ripple & Noise (20 Hz to 20 MHz)	Voltage rms: 2 mV Voltage Peak-to-Peak: 5 mV Current rms: 8 mA
