When your requirements demand more power, the E3630 series offers up to 200 W per output. These linear power supplies meet the requirements of the most demanding applications in R&D design verifications, production testing, and QA verifications with quality and reliability you can count on.
Three single output with power supplies dual-range comprise the E3630 linear power supply series. The dual range supplies give you a high and low voltage range – the low range has the ability to source more current. Also, the E3630 Series offer 4-wire remote sense to give you an accurate voltage at the load. Tests are automated using the RS232 or GPIB interface. When you need reliable power up to 200 W, consider the time-tested E3630 series.
Keysight basic DC power supplies offer essential features for a tight budget. The single output, 120-200 W, GPIB, E3632A-E3634A provide dual range outputs; small, compact size for bench use; low output ripple and noise; as well as built-in measurements and basic programmable features with GPIB and RS232 interface. The Keysight 200W, GPIB, single output E3634A is a high performance supply optimized for manual and basic automated testing; and, with a combination of benchtop capabilities and system features, it is designed to help improve measurement quality and reduce test time.

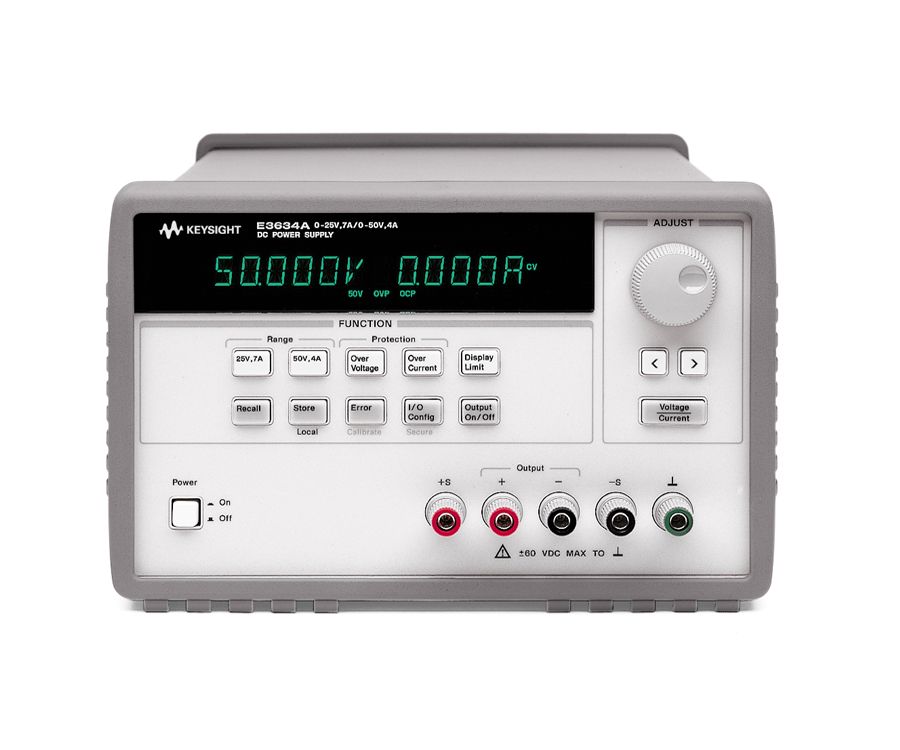

The single output, 200 W E3634A, provides dual-range outputs; small, compact size for bench use; low output ripple and noise; as well as built-in measurements and is a programmable power supply with GPIB and RS232 interfaces.
| Key Features |
| Low noise linear power supply |
| Excellent regulation |
| Single output, 120 or 200 W |
| More voltage-current combinations with dual–range output |
| Four-wire remote sense |
| Save and recall functions |
| Overvoltage and overcurrent protection |
| RS232 and GPIB Interfaces |
| Specifications |
|
| E3634A Power Supply |
|
| Feature | Parameter |
| Output Ratings | Range 1: 0 to 25 V, 7 A
Range 2: 0 to 50 V, 4 A
|
| Programming Accuracy at 25°C ±5°C | Voltage: 0.05% + 10 mV
Current: 0.2% +10 mA
|
| Ripple & Noise (20 Hz to 20 MHz) | Normal-mode voltage: <500 µVrms/3 mVp-p
Normal-mode current: <2 mA rms
|
| Readback Accuracy at 25°C ±5°C | Voltage: 0.05% + 5 mV
Current: 0.15% + 5 mA
|
| Specifications |
|
|
|
|
| E3630 Series Power Supplies |
|
|
|
|
| Model Overview |
|
|
|
|
| Model | Description | Voltage | Current | Watts |
| E3632A | DC Power Supply, 15V 7A, 30V 4A, 120W | 15 V | 7.0 A | 120 w |
| E3633A | DC Power Supply, 8V 20A, 20V 10A, 200W | 8 V | 20 A | 200 W |
| E3634A | DC Power Supply, 25V 7A, 50V 4A, 200W | 25 V | 7.0 A | 200 W |
| Specifications |
|
| E3630 Series Power Supplies |
|
| Model Overview |
|
| Model Number | Description |
| E3631A | 80-Watt Triple Power Supply |
| E3632A | 120-Watt Single Power Supply |
| E3633A | 200-Watt Single Power Supply |
| E3634A | 200-Watt Single Power Supply |
