The ASR-3000 series is an AC+DC power source, featuring high-speed DC voltage rise time and fall time of(≦100us).
ASR-3000 is ideal for the development of On-board Chargers, Server Powers, LED modules, AC Motors, AC Fans, UPS, and various electronic components, as well as for testing applications of automotive electrical equipment and home appliances.
The series can provide rated power output during AC output and DC output. Nine ASR-3000 output modes are available.
| Key Features |
| Output Rating: AC 0 – 400 Vrms, DC 0 - ± 570 V |
| Output Frequency up to 999.9 Hz |
| DC Output (100% of Rated Power) |
| Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF |
| Voltage and Current Harmonic Analysis(THDv, THDi) |
| Remote Sensing Capability |
| OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm. |
| Support Arbitrary Waveform Function |
| Output Capacity: 2kVA/ 3kVA/4kVA |
| Customized Phase Angle for Output On/Off |
| Sequence and Simulation Function(up to 10 sets) |
| Interface(std): USB, LAN, RS-232, GPIB |
| Built-in External Control I/O and External Signal Input |
| Built-in Output Relay Control |
| Memory Function (up to 10 sets) |
| Built-in Web Server |
| ASR 3000 Series Operating Modes |
| AC power output mode (AC-INT Mode) |
| DC power output mode (DC-INT Mode) |
| AC/DC power output mode (AC+DC-INT Mode) |
| External AC signal source mode (AC-EXT Mode) |
| External AC/DC signal source mode (AC+DC-EXT Mode) |
| External AC signal superimposition mode (AC-ADD Mode) |
| External AC/DC signal superimposition mode (AC+DC-ADD Mode) |
| External AC signal synchronization mode (AC-SYNC Mode) |
| External AC/DC signal synchronization mode (AC+DC-SYNC Mode) |
| Specifications |
|
ASR-3000 Series
Programmable AC/DC Power Source
|
|
| Series Overview |
|
| Model | Description |
| ASR-3200 | 2kVA Programmable AC/DC Power Source |
| ASR-3300 | 3kVA Programmable AC/DC Power Source |

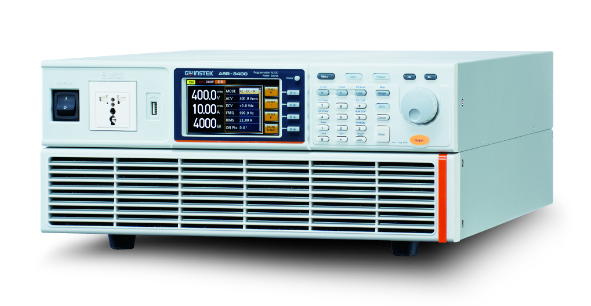

| ASR-3400 | 4kVA Programmable AC/DC Power Source |
