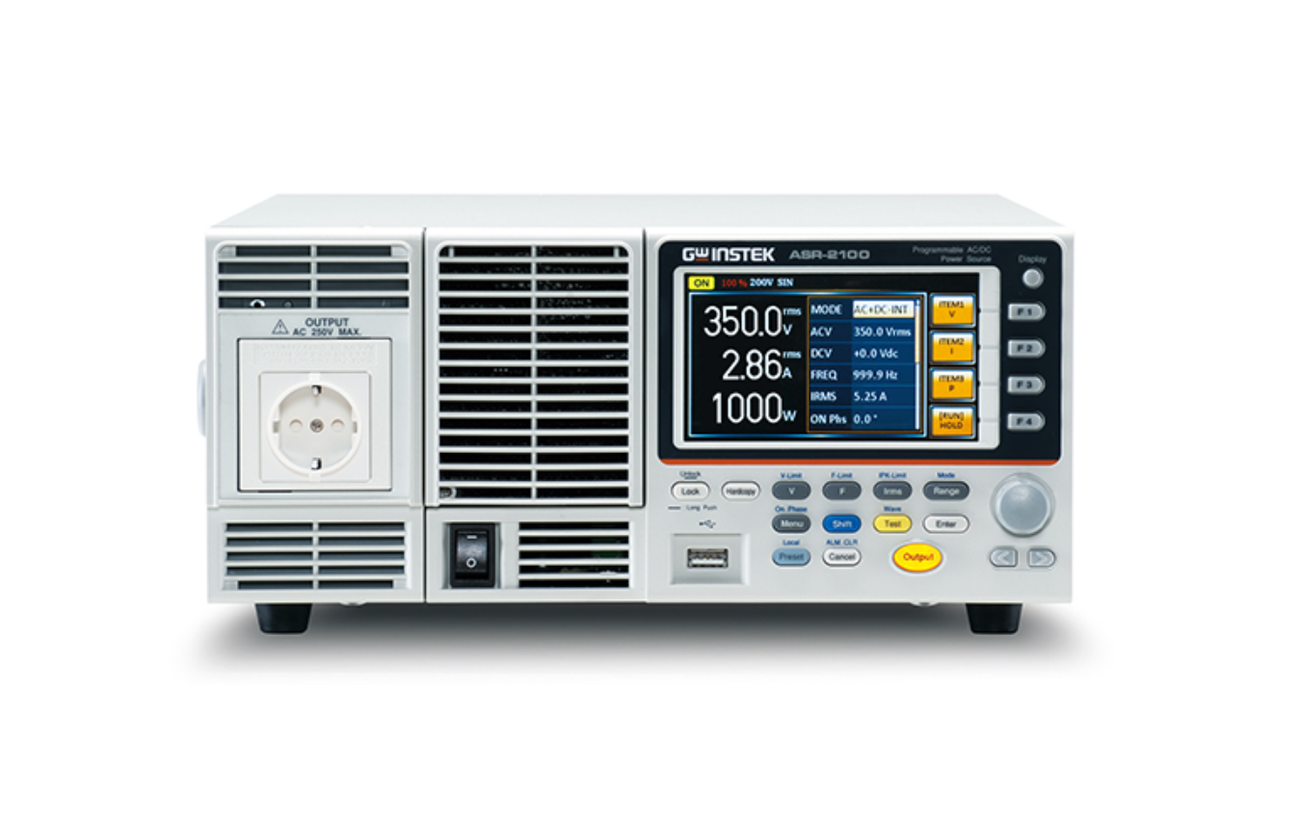

GW Instek ASR-2100

Configure Unit

Available to Buy Online

View Configurations

Programmable AC/DC Power Source, 1000VA, Universal socket

Model

ASR-2100

Product Family

Power Supplies / Electronic Loads

Manufacturer

GW Instek

Configured models contain the following attributes:

Power Supplies / Electronic LoadsAC Power Supplies

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

Features:

Output Rating: AC 0 – 350 Vrms, DC 0 - ± 500 V
Output Frequency up to 999.9 Hz
DC Output (100% of Rated Power)
Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
Voltage and Current Harmonic Analysis(THDv, THDi)
Remote Sensing Capability
OVP, OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm.
Support Arbitrary Waveform Function
Output Capacity: 500VA/ 1000VA
Customized Phase Angle for Output On/Off
Sequence and Simulation Function(up to 10 sets)
Interface: USB, LAN(std.); RS-232+GPIB(opt.)
Built-in External Control I/O and External Signal Input
Built-in Output Relay Control
Memory Function (up to 10 sets)
Built-in Web Server
