Tektronix P77DESKEW

Configure Unit

Available to Buy Online

View Configurations

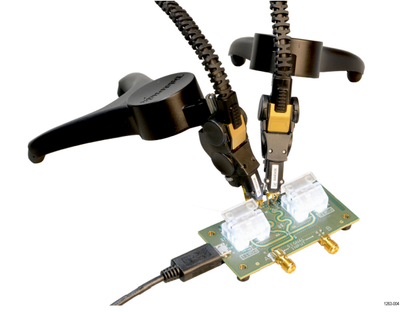

Deskew fixture for P7700 series probes (USB power cable included)

Model

P77DESKEW

Manufacturer

Tektronix

Configured models contain the following attributes:

Oscilloscope Probes

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

The P77DESKEW probe deskew fixture provides an edge source to time-align (deskew) signals at the inputs of P7700 Series probes. The fixture provides a means to deskew two probes at the same time. The probe and the fixture are powered by one of the USB ports of the oscilloscope; a USB cable (Tektronix part number, 174-6919-xx) is included with the fixture.

For performing the deskew procedure, Tektronix recommends using a DPO/MSO70000C/70000DX series oscilloscope.

Specifications
Deskew fixture for P7700 series probes
Model Overview
Characteristic	Description
Input impedance	50 Ω ±2%
Fast Edge signal A&Binput connectors	SMA
Maximum input signal	4.6 VRMS
Time delay (Typical)
A to B (differential signal path)	≤5 ps
Port1 to Port2, or Port3 to Port4	≤10 ps
Port1 to Port3 or to Port4	30 ps
Port2 to Port3 or to Port4	30 ps
Difference between two rows of pads	5.7 ps
Temperature
Operating	0 °C to +45 °C (32 °F to +113 °F)
Non-operating	-20°C to +60 °C (-4 °F to +140 °F)
