Rohde & Schwarz FSW-K30 (1313.1380.07)

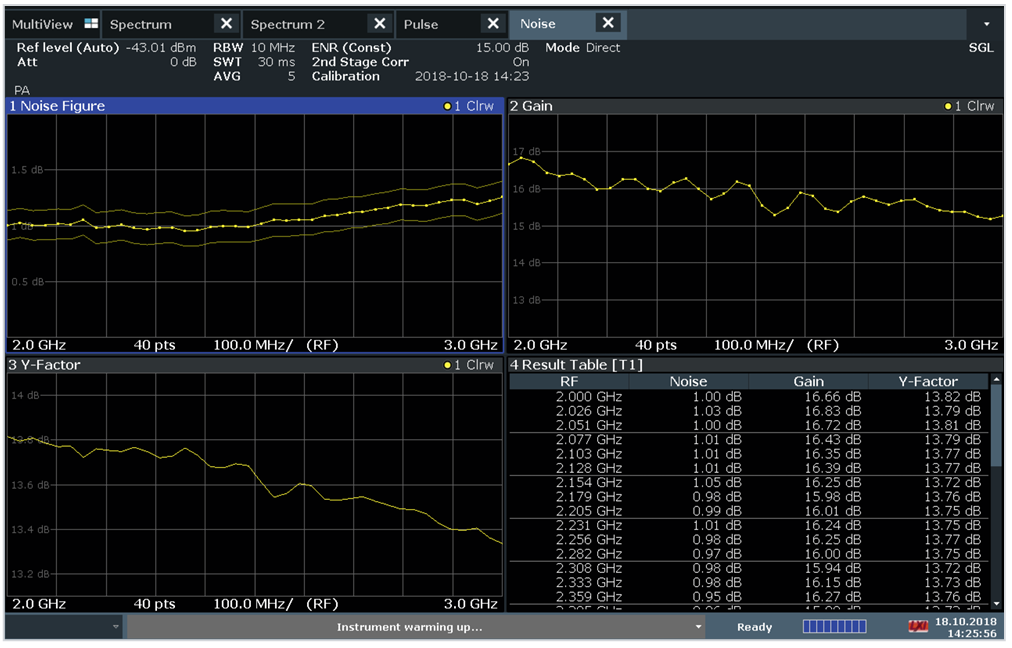

The R&S®FSW-K30 option expands the FSW capabilities of the spectrum analyzer by adding measurement functionality otherwise only provided by special noise measurement analyzers.

The following parameters can be measured at a specified frequency or in a selectable frequency range:

• Noise figure in dB
• Noise temperature in K
• Gain in dB

The R&S®FSW-K30 can perform a wider variety of RF measurements than is possible with conventional noise measurement systems. The R&S®FSW supports the measurement of harmonics, intermodulation, spurious responses and many other RF-relevant criteria (for measurements on amplifiers and on frequency-converting DUTs, e.g. low noise converters). R&S®FSW-K30 Noise figure and gain measurements are based on Y-factor method.

Measurement Parameters:

• Noise figure
• Noise temperature
• Gain

Measurement Functions:

• Y factor
• Analyzer noise correction (second stage correction)
• Measurements on frequency-converting DUTs
• Control of a generator as an LO in frequency-converting measurements
• SSB and DSB
